k8s集群的安装

1、实验描述

通过搭建 K8S 的集群，来学习对容器的编排

2、实验环境

【你可能需要】【CentOS 7 搭建模板机】点我快速打开文章

【你可能需要】【VMware 从模板机快速克隆多台】点我快速打开文章

【你可能需要】【CentOS 7 命令行显示优化】点我快速打开文章

【你可看需要】【CentOS 7 配置yum源】点我快速打开文章

虚拟机：

  • 系统：CenOS 7.6
  • 内存：3-4 G+
  • 数量：3台
  • 硬盘：50G+
  • 要求：纯系统

物理机：Windows 10

3、实验工具

陆续上传中

4、实验步骤

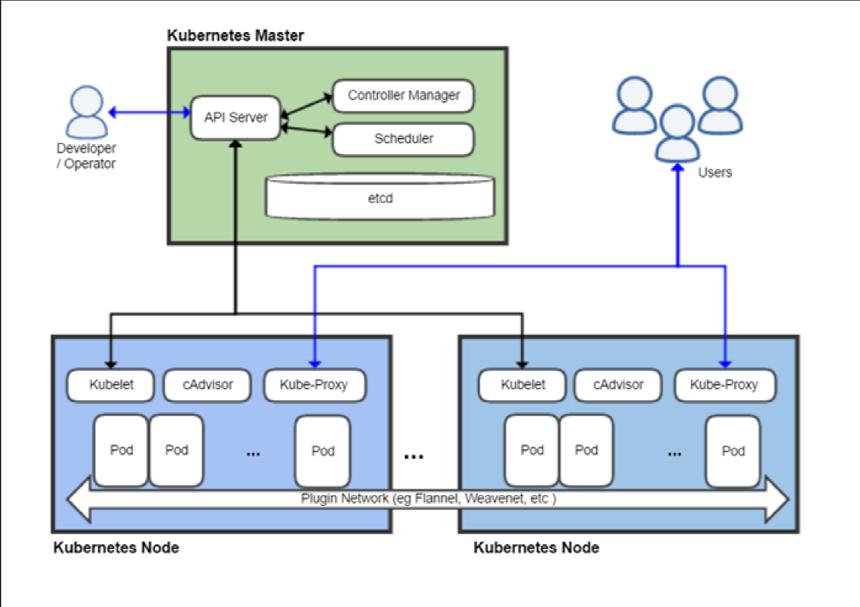

4.1 k8s的架构

除了核心组件，还有一些推荐的 Add-ons ：

组件名称 说明
kube-dns 负责为整个集群提供DNS服务
Ingress Controller 为服务提供外网入口
Heapster 提供资源监控
Dashboard 提供GUI
Federation 提供跨可用区的集群
Fluentd-elasticsearch 提供集群日志采集、存储与查询

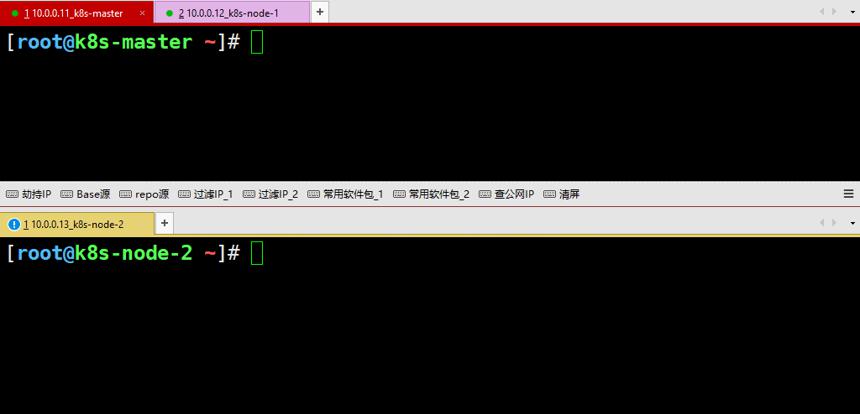

4.2 修改IP地址、主机和host解析

1. k8s-master

hostnamectl set-hostname k8s-master
ifconfig eth0|awk 'NR==2{print $2}'
IP=$(ifconfig eth0|awk 'NR==2{print $2}')
sed -i "s#$IP#10.0.0.11#g" /etc/sysconfig/network-scripts/ifcfg-eth0
grep 10.0.0.11 /etc/sysconfig/network-scripts/ifcfg-eth0
cat >>/etc/hosts <<EOF
10.0.0.11  k8s-master
10.0.0.12  k8s-node-1
10.0.0.13  k8s-node-2
EOF
tail -3 /etc/hosts
systemctl restart network

2. k8s-node-1

hostnamectl set-hostname k8s-node-1
ifconfig eth0|awk 'NR==2{print $2}'
IP=$(ifconfig eth0|awk 'NR==2{print $2}')
sed -i "s#$IP#10.0.0.12#g" /etc/sysconfig/network-scripts/ifcfg-eth0
grep 10.0.0.12 /etc/sysconfig/network-scripts/ifcfg-eth0
cat >>/etc/hosts <<EOF
10.0.0.11  k8s-master
10.0.0.12  k8s-node-1
10.0.0.13  k8s-node-2
EOF
tail -3 /etc/hosts
systemctl restart network

3. k8s-node-2

hostnamectl set-hostname k8s-node-2
ifconfig eth0|awk 'NR==2{print $2}'
IP=$(ifconfig eth0|awk 'NR==2{print $2}')
sed -i "s#$IP#10.0.0.13#g" /etc/sysconfig/network-scripts/ifcfg-eth0
grep 10.0.0.13 /etc/sysconfig/network-scripts/ifcfg-eth0
cat >>/etc/hosts <<EOF
10.0.0.11  k8s-master
10.0.0.12  k8s-node-1
10.0.0.13  k8s-node-2
EOF
tail -3 /etc/hosts
systemctl restart network

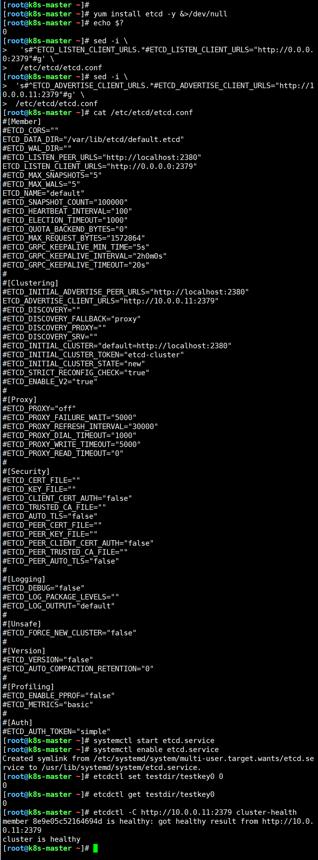

4.3 master 节点安装 etcd

#安装软件
yum install etcd -y &>/dev/null
echo $?

#修改/etc/etcd/etcd.conf配置文件
sed -i \
  's#^ETCD_LISTEN_CLIENT_URLS.*#ETCD_LISTEN_CLIENT_URLS="http://0.0.0.0:2379"#g' \
  /etc/etcd/etcd.conf
sed -i \
 's#^ETCD_ADVERTISE_CLIENT_URLS.*#ETCD_ADVERTISE_CLIENT_URLS="http://10.0.0.11:2379"#g' \
 /etc/etcd/etcd.conf
cat /etc/etcd/etcd.conf

#启动和自启动
systemctl start etcd.service
systemctl enable etcd.service

#验证结果
etcdctl set testdir/testkey0 0
etcdctl get testdir/testkey0
etcdctl -C http://10.0.0.11:2379 cluster-health

注意：etcd 原生支持做集群

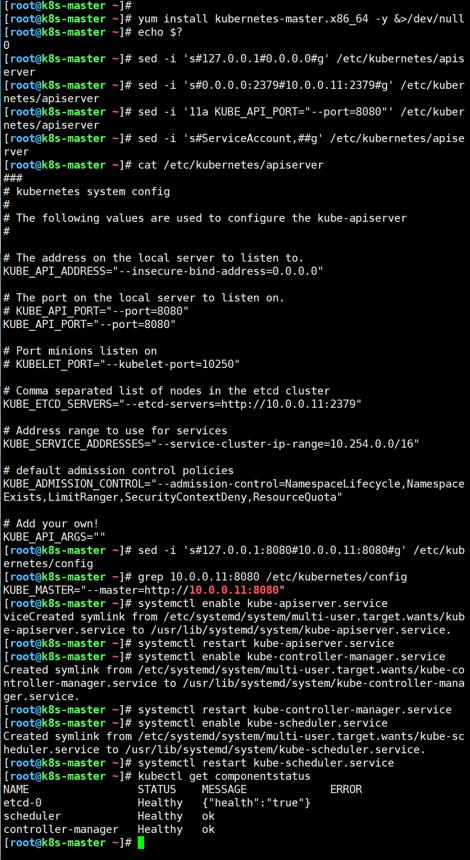

4.4 master 节点安装 kubernetes

#安装软件
yum install kubernetes-master.x86_64 -y &>/dev/null
echo $?

#修改/etc/kubernetes/apiserver配置文件
sed -i 's#127.0.0.1#0.0.0.0#g' /etc/kubernetes/apiserver
sed -i 's#0.0.0.0:2379#10.0.0.11:2379#g' /etc/kubernetes/apiserver
sed -i '11a KUBE_API_PORT="--port=8080"' /etc/kubernetes/apiserver
sed -i 's#ServiceAccount,##g' /etc/kubernetes/apiserver
cat /etc/kubernetes/apiserver

#修改/etc/kubernetes/config配置文件
sed -i 's#127.0.0.1:8080#10.0.0.11:8080#g' /etc/kubernetes/config
grep 10.0.0.11:8080 /etc/kubernetes/config

#启动和自启动
systemctl enable kube-apiserver.service
systemctl restart kube-apiserver.service
systemctl enable kube-controller-manager.service
systemctl restart kube-controller-manager.service
systemctl enable kube-scheduler.service
systemctl restart kube-scheduler.service

#验证结果
kubectl get componentstatus

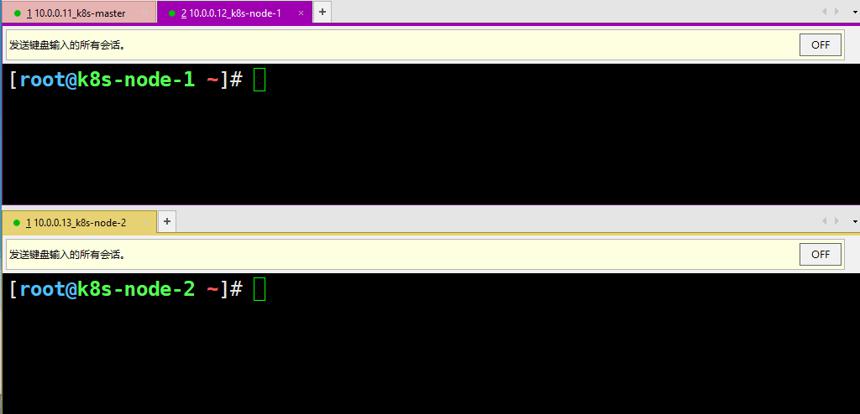

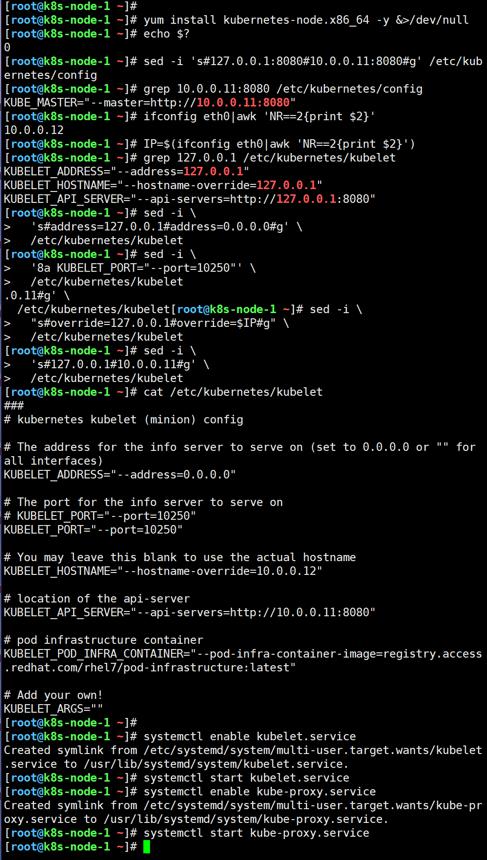

4.5 node 节点安装 kubernetes

#安装软件
yum install kubernetes-node.x86_64 -y &>/dev/null
echo $?

#修改etc/kubernetes/config配置文件
sed -i 's#127.0.0.1:8080#10.0.0.11:8080#g' /etc/kubernetes/config
grep 10.0.0.11:8080 /etc/kubernetes/config

#修改/etc/kubernetes/kubelet配置文件
ifconfig eth0|awk 'NR==2{print $2}'
IP=$(ifconfig eth0|awk 'NR==2{print $2}')

grep 127.0.0.1 /etc/kubernetes/kubelet

sed -i \
  's#address=127.0.0.1#address=0.0.0.0#g' \
  /etc/kubernetes/kubelet
sed -i \
  '8a KUBELET_PORT="--port=10250"' \
  /etc/kubernetes/kubelet
sed -i \
  "s#override=127.0.0.1#override=$IP#g" \
  /etc/kubernetes/kubelet
sed -i \
  's#127.0.0.1#10.0.0.11#g' \
  /etc/kubernetes/kubelet
cat /etc/kubernetes/kubelet

#启动和自启动
systemctl enable kubelet.service
systemctl start kubelet.service
systemctl enable kube-proxy.service
systemctl start kube-proxy.service

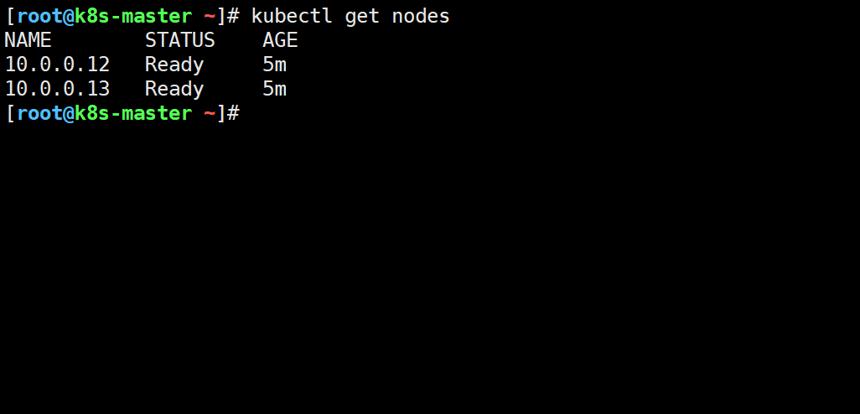

#在master节点检查
kubectl get nodes

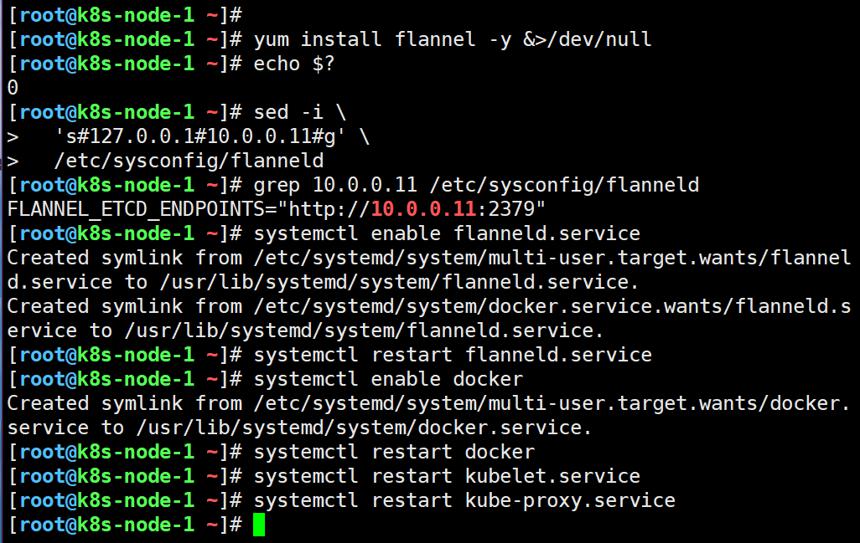

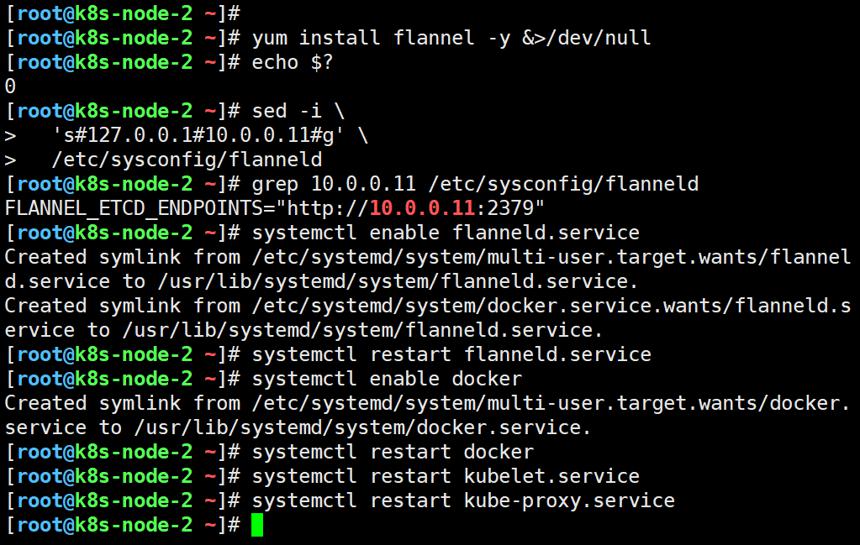

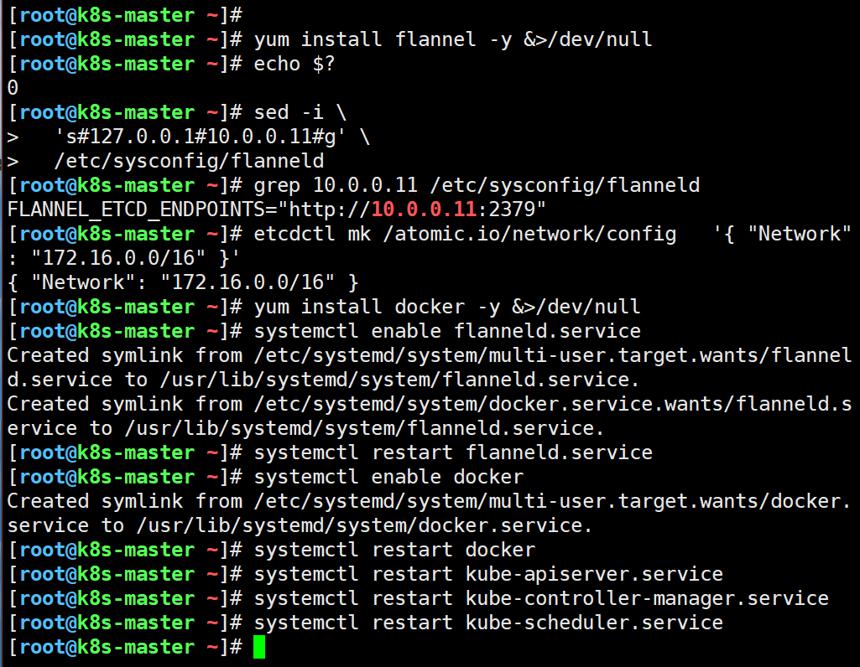

4.6 所有节点配置 flannel 网络

#所有节点
yum install flannel -y &>/dev/null
echo $?

sed -i \
  's#127.0.0.1#10.0.0.11#g' \
  /etc/sysconfig/flanneld

grep 10.0.0.11 /etc/sysconfig/flanneld

#master节点：
etcdctl mk /atomic.io/network/config   '{ "Network": "172.16.0.0/16" }'
yum install docker -y &>/dev/null
systemctl enable flanneld.service
systemctl restart flanneld.service
systemctl enable docker
systemctl restart docker
systemctl restart kube-apiserver.service
systemctl restart kube-controller-manager.service
systemctl restart kube-scheduler.service

#node节点：
systemctl enable flanneld.service
systemctl restart flanneld.service
systemctl enable docker
systemctl restart docker
systemctl restart kubelet.service
systemctl restart kube-proxy.service

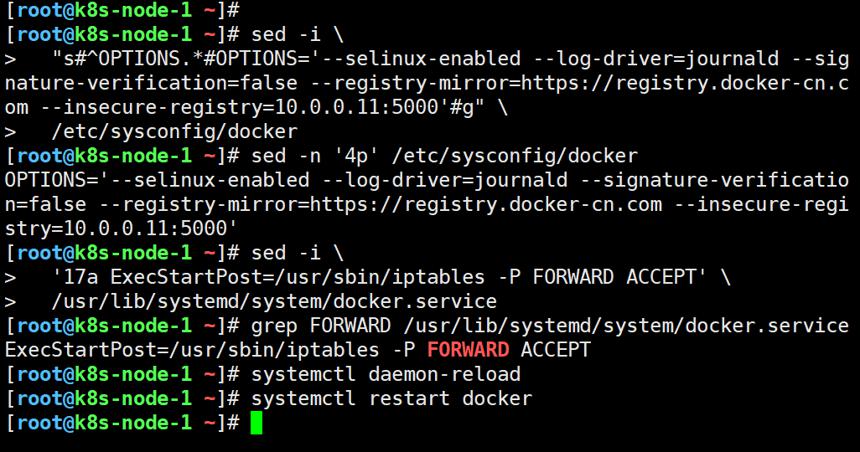

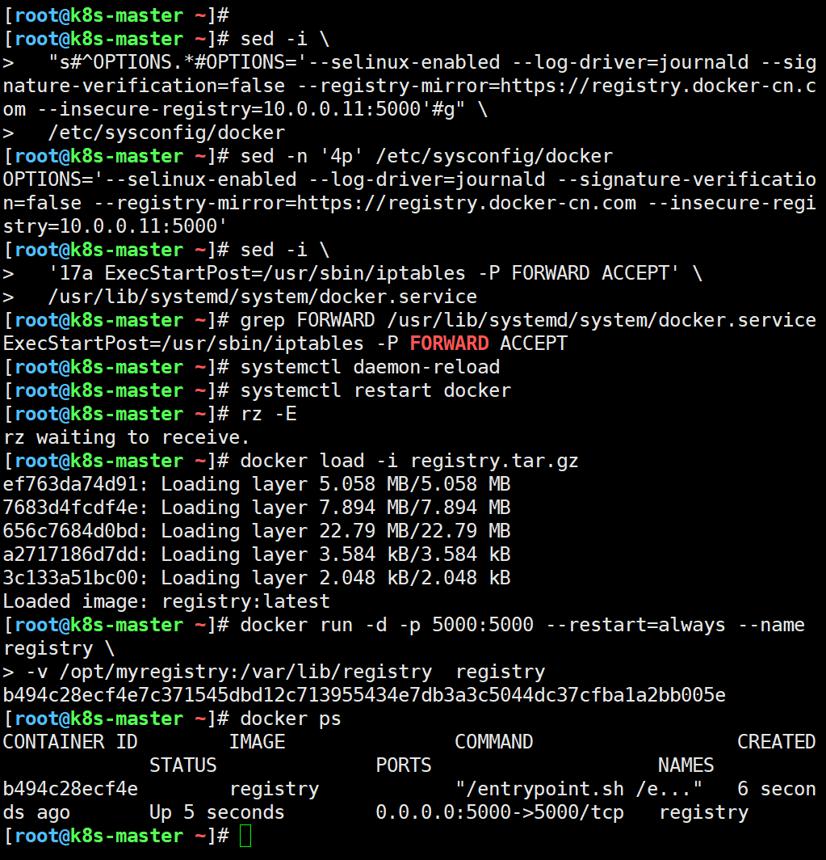

4.7 配置 master 为镜像仓库

#所有节点
#修改/etc/sysconfig/docker配置文件
sed -i \
  "s#^OPTIONS.*#OPTIONS='--selinux-enabled --log-driver=journald --signature-verification=false --registry-mirror=https://registry.docker-cn.com --insecure-registry=10.0.0.11:5000'#g" \
  /etc/sysconfig/docker

#查看
sed -n '4p' /etc/sysconfig/docker

#修改bug
sed -i \
  '17a ExecStartPost=/usr/sbin/iptables -P FORWARD ACCEPT' \
  /usr/lib/systemd/system/docker.service

#查看
grep FORWARD /usr/lib/systemd/system/docker.service

systemctl daemon-reload
systemctl restart docker

#master节点
#上传registry压缩包

#导入镜像
docker load -i registry.tar.gz

#启动容器
docker run -d -p 5000:5000 --restart=always --name registry \
-v /opt/myregistry:/var/lib/registry  registry

#查看
docker ps

【后续文章】编辑中
