influxdb的安装等操作在我的文章。

首先得装influxdb，其次操作如下。

application.properties

spring.datasource.test1.jdbc-url=jdbc:mysql://localhost:3306/spms-prod?useSSL=false&serverTimezone=GMT%2B8&characterEncoding=UTF-8
spring.datasource.test1.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.test1.username=root
spring.datasource.test1.password=rootspring.datasource.test2.jdbc-url=jdbc:oracle:thin:@localhost:1521:orcl
spring.datasource.test2.driver-class-name=oracle.jdbc.driver.OracleDriver
spring.datasource.test2.username=SYSTEM
spring.datasource.test2.password=root
#spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.use-lock=trueserver.port=8089mybatis.mapper-locations= classpath*:mapper/*/*.xml
mybatis.type-aliases-package=com.hainei.dao.*
pagehelper.helper-dialect=mysql
pagehelper.reasonable=true
pagehelper.support-methods-arguments=true
pagehelper.params=count=countSql
#??????sql????????????????????
#mybatis.configuration.log-impl=org.apache.ibatis.logging.stdout.StdOutImpl
#?????????????????
#jasypt.encryptor.password=zheTang
spring.jackson.time-zone= GMT+8#influxDB
influxDBUserName=admin
influxDBPassword= hainei1205
influxDBOpenurl=http://192.168.1.145:8086
influxDBDatabase= newopcopcIp: 192.168.100.231
opcUserName: Administrator
opcPassWord: Abc.123+
opcCode: D66FD91F-927D-47df-B074-EB2CD3F85C18

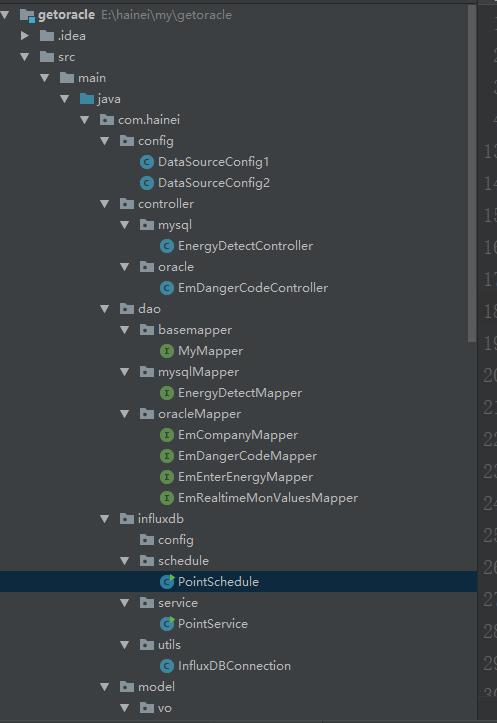

influxdb中的模块

schedule

package com.hainei.influxdb.schedule;import com.hainei.influxdb.utils.InfluxDBConnection;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.PropertySource;
import org.springframework.stereotype.Component;import java.util.Date;
import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.TimeUnit;/**
* Created with IntelliJ IDEA.
* User: lzx
* Date: 2019/9/26
* Time: 17:41
* Description: No Description
*/
@Component
@PropertySource({"classpath:application.properties"})
public class PointSchedule {
@Value("${influxDBUserName}")
private String influxDBUserName ;
@Value("${influxDBPassword}")
private String influxDBPassword ;
@Value("${influxDBOpenurl}")
private String influxDBOpenurl ;
@Value("${influxDBDatabase}")
private String influxDBDatabase ; //@Scheduled(cron = "*/5 * * * * *")
public void simulate(String tag,String pointId,String value,String status,Long times){
// InfluxDBConnection influxDBConnection = new InfluxDBConnection("admin", "admin2", "http://10.100.10.127:8086", "opc", null); InfluxDBConnection influxDBConnection = new InfluxDBConnection(influxDBUserName, influxDBPassword, influxDBOpenurl, influxDBDatabase, null);
Map<String, String> tags = new HashMap<String, String>();
tags.put("tag1", tag);
Map<String, Object> fields = new HashMap<String, Object>();
fields.put("pointId", pointId);
fields.put("pointValue", value);
fields.put("status", status);
fields.put("times", times); influxDBConnection.insert("opc", tags, fields, System.currentTimeMillis(), TimeUnit.MILLISECONDS); } public static void main(String[] args){
new Thread() {
@Override
public void run() {
while (true) {
System.out.println(2);
for(int i = 0;i<100;i++){
double v = (1 + Math.random() * (10 - 1 + 1));
InfluxDBConnection influxDBConnection = new InfluxDBConnection("admin", "admin2", "http://192.168.1.145:8086", "newopc", null);
Map<String, String> tags = new HashMap<String, String>();
tags.put("tag1", "TIA_70"+i);
Map<String, Object> fields = new HashMap<String, Object>();
fields.put("pointId", "TIA_70"+i);
fields.put("pointValue", ""+v);
fields.put("status", "good");
fields.put("times", new Date().getTime()); influxDBConnection.insert("opc", tags, fields, System.currentTimeMillis(), TimeUnit.MILLISECONDS); }
try {
Thread.sleep(10000); //设置暂停的时间，5000=5秒
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
}.start(); }}

service

utils

package com.hainei.influxdb.utils;import okhttp3.OkHttpClient;
import org.influxdb.InfluxDB;
import org.influxdb.InfluxDBFactory;
import org.influxdb.dto.*;import java.util.List;
import java.util.Map;
import java.util.concurrent.TimeUnit;/**
* FileName: InfluxDBConnection
* Author: Administrator
* Date: 2019/7/30 9:20
* Description: influxDb工具类
*/
public class InfluxDBConnection { // 用户名
private String username;
// 密码
private String password;
// 连接地址
private String openurl;
// 数据库
private String database;
// 保留策略
private String retentionPolicy; private InfluxDB influxDB;
public InfluxDBConnection(String username, String password, String openurl, String database,
String retentionPolicy) {
this.username = username;
this.password = password;
this.openurl = openurl;
this.database = database;
this.retentionPolicy = retentionPolicy == null || retentionPolicy.equals("") ? "autogen" : retentionPolicy;
influxDbBuild();
} /**
* 创建数据库
*
* @param dbName
*/
@SuppressWarnings("deprecation")
public void createDB(String dbName) {
influxDB.createDatabase(dbName);
} /**
* 删除数据库
*
* @param dbName
*/
@SuppressWarnings("deprecation")
public void deleteDB(String dbName) {
influxDB.deleteDatabase(dbName);
} /**
* 测试连接是否正常
*
* @return true 正常
*/
public boolean ping() {
boolean isConnected = false;
Pong pong;
try {
pong = influxDB.ping();
if (pong != null) {
isConnected = true;
}
} catch (Exception e) {
e.printStackTrace();
}
return isConnected;
} /**
* 连接时序数据库，若不存在则创建
*
* @return
*/
public InfluxDB influxDbBuild() {
if (influxDB == null) {
influxDB = InfluxDBFactory.connect(openurl, username, password);
}
try {
// if (!influxDB.databaseExists(database)) {
// influxDB.createDatabase(database);
// }
} catch (Exception e) {
// 该数据库可能设置动态代理，不支持创建数据库
// e.printStackTrace();
} finally {
influxDB.setRetentionPolicy(retentionPolicy);
}
influxDB.setLogLevel(InfluxDB.LogLevel.NONE);
return influxDB;
} /**
* 创建自定义保留策略
*
* @param policyName
* 策略名
* @param duration
* 保存天数
* @param replication
* 保存副本数量
* @param isDefault
* 是否设为默认保留策略
*/
public void createRetentionPolicy(String policyName, String duration, int replication, Boolean isDefault) {
String sql = String.format("CREATE RETENTION POLICY \"%s\" ON \"%s\" DURATION %s REPLICATION %s ", policyName,
database, duration, replication);
if (isDefault) {
sql = sql + " DEFAULT";
}
this.query(sql);
} /**
* 创建默认的保留策略
* 策略名
* @param ：default，保存天数：30天，保存副本数量：1
* 设为默认保留策略
*/
public void createDefaultRetentionPolicy() {
String command = String.format("CREATE RETENTION POLICY \"%s\" ON \"%s\" DURATION %s REPLICATION %s DEFAULT",
"default", database, "30d", 1);
this.query(command);
} /**
* 查询
*
* @param command
* 查询语句
* @return
*/
public QueryResult query(String command) {
return influxDB.query(new Query(command, database)); } /**
* 插入
*
* @param measurement
* 表
* @param tags
* 标签
* @param fields
* 字段
*/
public void insert(String measurement, Map<String, String> tags, Map<String, Object> fields, long time,
TimeUnit timeUnit) {
Point.Builder builder = Point.measurement(measurement);
builder.tag(tags);
builder.fields(fields);
if (0 != time) {
builder.time(time, timeUnit);
}
influxDB.write(database, retentionPolicy, builder.build());
} /**
* 批量写入测点
*
* @param batchPoints
*/
public void batchInsert(BatchPoints batchPoints) {
influxDB.write(batchPoints);
// influxDB.enableGzip();
// influxDB.enableBatch(2000,100,TimeUnit.MILLISECONDS);
// influxDB.disableGzip();
// influxDB.disableBatch();
} /**
* 批量写入数据
*
* @param database
* 数据库
* @param retentionPolicy
* 保存策略
* @param consistency
* 一致性
* @param records
* 要保存的数据（调用BatchPoints.lineProtocol()可得到一条record）
*/
public void batchInsert(final String database, final String retentionPolicy, final InfluxDB.ConsistencyLevel consistency,
final List<String> records) {
influxDB.write(database, retentionPolicy, consistency, records);
} /**
* 删除
*
* @param command
* 删除语句
* @return 返回错误信息
*/
public String deleteMeasurementData(String command) {
QueryResult result = influxDB.query(new Query(command, database));
return result.getError();
} /**
* 关闭数据库
*/
public void close() {
influxDB.close();
} /**
* 构建Point
*
* @param measurement
* @param time
* @param fields
* @return
*/
public Point pointBuilder(String measurement, long time, Map<String, String> tags, Map<String, Object> fields) {
Point point = Point.measurement(measurement).time(time, TimeUnit.MILLISECONDS).tag(tags).fields(fields).build();
return point;
}}

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.1.RELEASE</version>
<relativePath/>
</parent>
<groupId>com.hainei</groupId>
<artifactId>getoracle</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>war</packaging>
<name>getoracle</name>
<description>Demo project for Spring Boot</description> <properties>
<java.version>1.8</java.version>
<java.encoding>UTF-8</java.encoding>
<junit-version>4.11</junit-version>
<jar-no-version-redefined-version>2.0.0.RELEASE</jar-no-version-redefined-version>
<pom-version>3.10-FINAL</pom-version>
<spring-version>4.0.7.RELEASE</spring-version>
<servlet-version>2.5</servlet-version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<jar.scope>compile</jar.scope>
</properties> <dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency> <dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>

<dependency>
<groupId>org.codehaus.jackson</groupId>
<artifactId>jackson-core-asl</artifactId>
<version>1.9.13</version>
</dependency>
<dependency>
<groupId>org.codehaus.jackson</groupId>
<artifactId>jackson-mapper-asl</artifactId>
<version>1.9.13</version>
</dependency>


<dependency>
<groupId>com.github.pagehelper</groupId>
<artifactId>pagehelper-spring-boot-starter</artifactId>
<version>1.2.3</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.6</version>
</dependency>

<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.1.6</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.43</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>com.oracle</groupId>
<artifactId>ojdbc7</artifactId>
<version>12.2.0.1</version>
</dependency>
<dependency>
<groupId>tk.mybatis</groupId>
<artifactId>mapper-spring-boot-starter</artifactId>
<version>1.2.4</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>

<dependency>
<groupId>com.fasterxml.jackson.datatype</groupId>
<artifactId>jackson-datatype-guava</artifactId>
<version>2.5.3</version>
</dependency>
<dependency>
<groupId>commons-collections</groupId>
<artifactId>commons-collections</artifactId>
<version>3.2.2</version>
</dependency>
<dependency>
<groupId>commons-codec</groupId>
<artifactId>commons-codec</artifactId>
<version>1.10</version>
</dependency>




  <dependency>
<groupId>org.influxdb</groupId>
<artifactId>influxdb-java</artifactId>
<version>2.15</version>
</dependency>
<dependency>
<groupId>org.opentsdb.opc</groupId>
<artifactId>lib</artifactId>
<version>1.3.0-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>org.jinterop.dcom</groupId>
<artifactId>common</artifactId>
<version>2.0.4</version>
</dependency>

































<dependency>
<groupId>com.github.ulisesbocchio</groupId>
<artifactId>jasypt-spring-boot-starter</artifactId>
<version>1.16</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>5.1.5.RELEASE</version>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-test</artifactId>
</dependency>






































































































<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-websocket</artifactId>
<version>1.4.0.RELEASE</version>
</dependency> <dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>${servlet-version}</version>
<scope>provided</scope>
</dependency> <dependency>
<groupId>org.apache.activemq</groupId>
<artifactId>activemq-core</artifactId>
<version>5.7.0</version>
</dependency> <dependency>
<groupId>com.google.protobuf</groupId>
<artifactId>protobuf-java</artifactId>
<version>2.3.0</version>
</dependency> <dependency>
<groupId>net.sf.json-lib</groupId>
<artifactId>json-lib</artifactId>
<version>2.4</version>
<classifier>jdk15</classifier>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>commons-beanutils</groupId>
<artifactId>commons-beanutils</artifactId>
<version>1.8.1</version>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>commons-collections</groupId>
<artifactId>commons-collections</artifactId>
<version>3.2.1</version>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>commons-lang</groupId>
<artifactId>commons-lang</artifactId>
<version>2.6</version>
<scope>${jar.scope}</scope>
</dependency>
<dependency>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
<version>1.1.1</version>
<scope>${jar.scope}</scope>
</dependency>
<dependency>
<groupId>net.sf.ezmorph</groupId>
<artifactId>ezmorph</artifactId>
<version>1.0.6</version>
<scope>${jar.scope}</scope>
</dependency> </dependencies> <build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build></project>
