SAP SMARTFORMS-基于内存方式在report程序中传递数据到smartforms显示

提示：扫一扫查出行
【扫一扫了解最新限行尾号】
复制提示

一、准备工作

1、新建include程序

1> include程序名字：ZDD_INC_0104

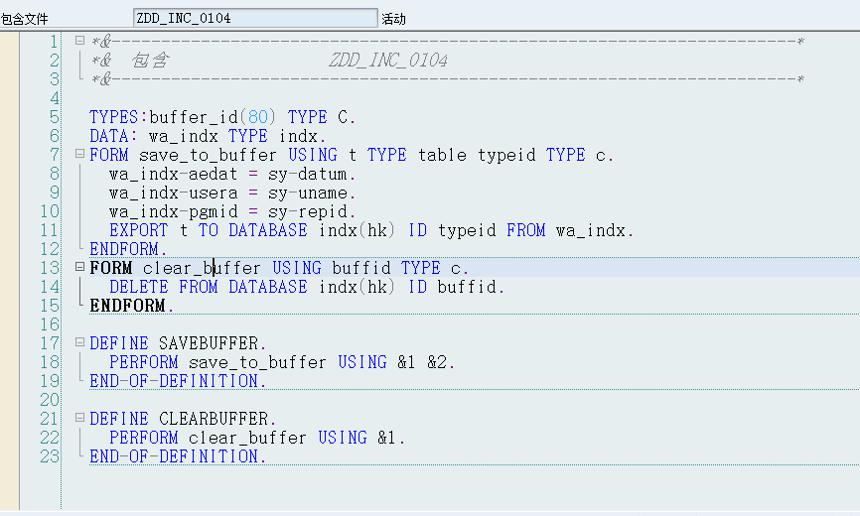

2> ZDD_INC_0104 程序中的内容为

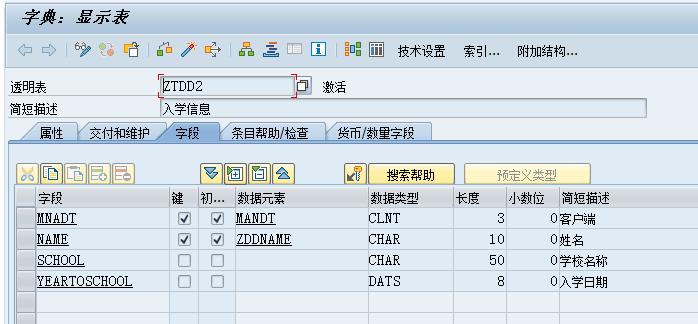

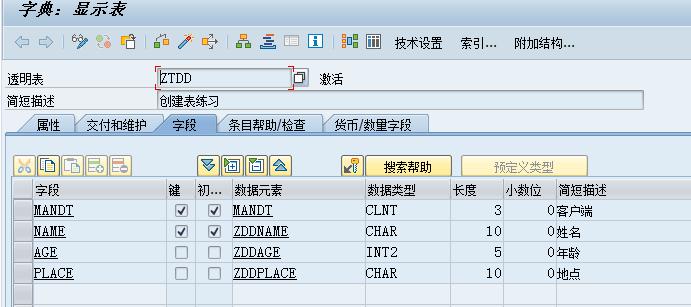

2、使用T-CODE :SE11新建两个数据库表ZTDD、ZTDD2

新建完数据库表后往表中添加数据即可

3、新建一个程序名为：ZDD_TEST_0104

REPORT ZDD_TEST_0104.
INCLUDE ZDD_INC_0104.
TABLES:ZTDD,ZTDD2.

TYPES:BEGIN OF ZITAB,
      NAME LIKE ZTDD-NAME,
      AGE  LIKE ZTDD-AGE,
    SCHOOL LIKE ZTDD2-SCHOOL,
   YEARTOSCHOOL   LIKE ZTDD2-YEARTOSCHOOL,
  END OF ZITAB.
DATA:ZITAB_ZTDD TYPE ZITAB OCCURS 0.
DATA:WA_ZTDD TYPE ZITAB.
DATA:fm_name TYPE rs38l_fnam.
DATA:itemsname(32) TYPE c.

START-OF-SELECTION.
SELECT-OPTIONS: age FOR ZTDD-AGE.

PERFORM GETDATA.
   PERFORM PRINT_DATA.
END-OF-SELECTION.
  FORM GETDATA.
   SELECT z1~NAME z1~AGE z2~SCHOOL z2~YEARTOSCHOOL
     INTO CORRESPONDING FIELDS OF TABLE ZITAB_ZTDD
     FROM ZTDD as z1 INNER JOIN ZTDD2 AS z2
     ON z1~NAME = z2~NAME
     WHERE z1~AGE in  age.

ENDFORM.

FORM PRINT_DATA.
       call function 'SSF_FUNCTION_MODULE_NAME'
EXPORTING
   formname = 'ZDD_FORM_1231'
IMPORTING
   fm_name = fm_name
EXCEPTIONS
   no_form = 1
   no_function_module = 2
   OTHERS = 3.

CONCATENATE 'ZSPMMF1002IT' SY-UZEIT INTO itemsname.
savebuffer ZITAB_ZTDD[] itemsname.
*调用 smartForms
call function fm_name
EXPORTING
   ptr_items = itemsname "这个ptr_items是smartforms中表接口的参数，下面会有描述
EXCEPTIONS
   formatting_error = 1
   internal_error = 2
   send_error = 3
   user_canceled = 4.
clearbuffer itemsname.
ENDFORM.

程序里的内容就到此为止了，下面是smartforms里的内容了

================================================================================================================

4、使用T-CODE :smartforms新建一个为：ZDD_FORM_1231的表单，样式随便选择

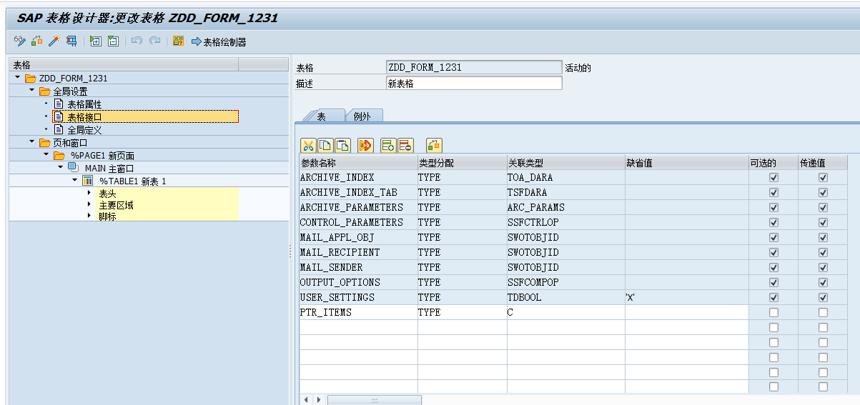

1> 定义表格接口—>导入
