MHA 高可用架构部署
提示：扫一扫查出行【扫一扫了解最新限行尾号】
复制提示
一, MHA 介绍
MHA（Master High Availability）目前在MySQL高可用方面是一个相对成熟的解决方案，它由日本DeNA公司youshimaton（现就职于Facebook公司）开发，是一套优秀的作为MySQL高可用性环境下故障切换和主从提升的高可用软件。在MySQL故障切换过程中，MHA能做到在0~30秒之内自动完成数据库的故障切换操作，并且在进行故障切换的过程中，MHA能在最大程度上保证数据的一致性，以达到真正意义上的高可用。
该软件由两部分组成：MHA Manager（管理节点）和MHA Node（数据节点） 。MHA Manager可以单独部署在一台独立的机器上管理多个master-slave集群，也可以部署在一台slave节点上。MHA Node运行在每台MySQL服务器上，MHA Manager会定时探测集群中的master节点，当master出现故障时，它可以自动将最新数据的slave提升为新的master，然后将所有其他的slave重新指向新的master。整个故障转移过程对应用程序完全透明。
在MHA自动故障切换过程中，MHA试图从宕机的主服务器上保存二进制日志，最大程度的保证数据的不丢失，但这并不总是可行的。例如，如果主服务器硬件故障或无法通过ssh访问，MHA没法保存二进制日志，只进行故障转移而丢失了最新的数据。使用MySQL 5.5的半同步复制，可以大大降低数据丢失的风险。MHA可以与半同步复制结合起来。如果只有一个slave已经收到了最新的二进制日志，MHA可以将最新的二进制日志应用于其他所有的slave服务器上，因此可以保证所有节点的数据一致性。
目前MHA主要支持一主多从的架构， 要搭建MHA,要求一个复制集群中必须最少有三台数据库服务器， 一主二从，即一台充当master，一台充当备用master，另外一台充当从库，因为至少需要三台服务器，出于机器成本的考虑，淘宝也在该基础上进行了改造，目前淘宝TMHA已经支持一主一从。
二, MHA搭建前
MHA搭建前必须要完成一主多从的主从复制项目:
环境:
|
db01 |
主 | 10.0.0.51 |
| db02 | 从 | 10.0.0.52 |
| db03 | 从 | 10.0.0.53 |
三台节点配置:
vim /etc/my.cnf
[mysqld]
basedir=/application/mysql
datadir=/application/mysql/data
socket=/tmp/mysql.sock
log-error=/var/log/mysql.log
log_bin=/data/mysql/mysql-bin
binlog_format=row
skip-name-resolve
server-id=51
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
[client]
socket=/tmp/mysql.sock slave1：10.0.0.52 vim /etc/my.cnf
[mysqld]
basedir=/application/mysql
datadir=/application/mysql/data
socket=/tmp/mysql.sock
log-error=/var/log/mysql.log
log_bin=/data/mysql/mysql-bin
binlog_format=row
skip-name-resolve
server-id=52
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
[client]
socket=/tmp/mysql.sock slave2：10.0.0.53
vim /etc/my.cnf
[mysqld]
basedir=/application/mysql
datadir=/application/mysql/data
socket=/tmp/mysql.sock
log-error=/var/log/mysql.log
log_bin=/data/mysql/mysql-bin
binlog_format=row
skip-name-resolve
server-id=53
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
[client]
socket=/tmp/mysql.sock 3.重新初始化三台机器数据 /application/mysql/scripts/mysql_install_db --basedir=/application/mysql/ --datadir=/application/mysql/data --user=mysql 4. 分别启动三台数据库服务器
/etc/init.d/mysqld start
三. MHA部署开始
构建GTID:
51节点:
grant replication slave on *.* to repl@'10.0.0.%' identified by '123'; 52\53节点: change master to master_host='10.0.0.51',master_user='repl',master_password='123' ,MASTER_AUTO_POSITION=1;
start slave;
密钥乱发:
主节点配值:
rm -rf /root/.ssh
ssh-keygen cd /root/.ssh
mv id_rsa.pub authorized_keys
scp -r /root/.ssh 10.0.0.52
scp -r /root/.ssh 10.0.0.53
各个节点密钥完成无密码两两互联
51节点:
ssh 10.0.0.51 date
ssh 10.0.0.52 date
ssh 10.0.0.53 date 52节点:
ssh 10.0.0.51 date
ssh 10.0.0.52 date
ssh 10.0.0.53 date 53节点:
ssh 10.0.0.51 date
ssh 10.0.0.52 date
ssh 10.0.0.53 date
数据库配置:
51节点 52节点 53节点配置 set global relay_log_purge = 0; 52节点 53节点配置
set global read_only=1;
服务器配置
ln -s /application/mysql/bin/mysqlbinlog /usr/bin/mysqlbinlog
ln -s /application/mysql/bin/mysql /usr/bin/mysql
软件下载:
下载mha软件，mha官网：https://code.google.com/archive/p/mysql-master-ha/
安装依赖包:
yum install perl-DBD-MySQL -y
安装node
所有节点
rpm -ivh mha4mysql-node-0.57-0.el7.noarch.rpm
主库创建MHA用户
grant all privileges on *.* to mha@'10.0.0.%' identified by 'mha';
53节点配置MHA
yum install -y perl-Config-Tiny epel-release perl-Log-Dispatch perl-Parallel-ForkManager perl-Time-HiRes
rpm -ivh mha4mysql-manager-0.57-0.el7.noarch.rpm
53节点配置文件配置
#创建配置文件目录
mkdir -p /etc/mha #创建日志目录
mkdir -p /var/log/mha/app1 #编辑mha配置文件
vim /etc/mha/app1.cnf [server default]
manager_log=/var/log/mha/app1/manager
manager_workdir=/var/log/mha/app1
master_binlog_dir=/data/mysql/
user=mha
password=mha
ping_interval=2
repl_password=123
repl_user=repl
ssh_user=root [server1]
hostname=10.0.0.51
port=3306 [server2]
hostname=10.0.0.52
port=3306 [server3]
hostname=10.0.0.53
port=3306

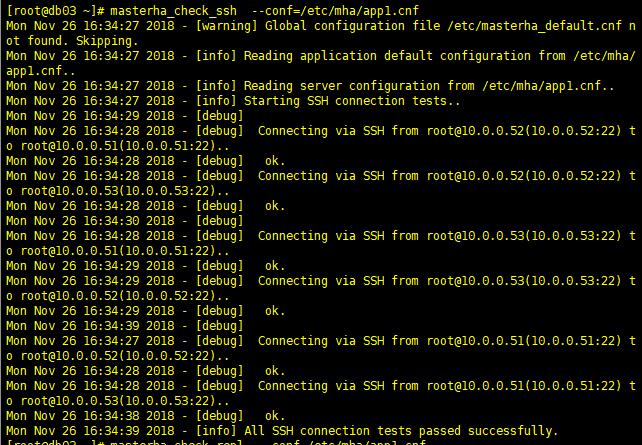

MHA 检查:
masterha_check_ssh --conf=/etc/mha/app1.cnf
全部ok为正常

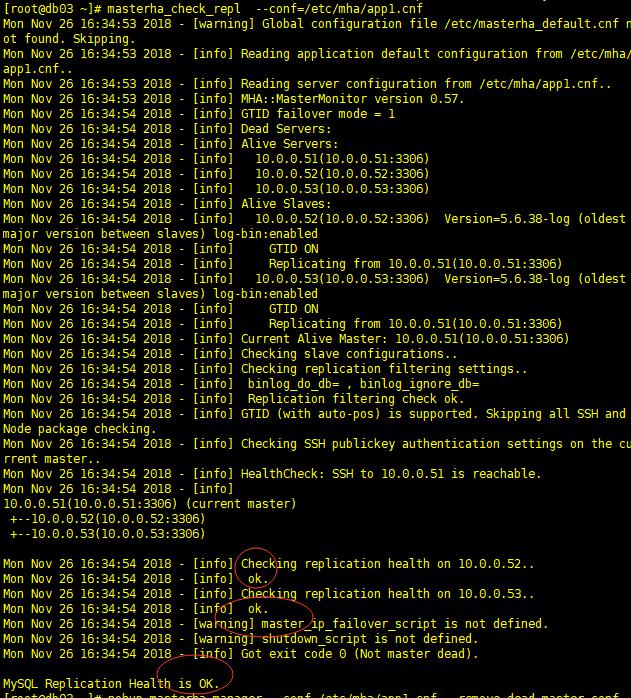

主从状态:
masterha_check_repl --conf=/etc/mha/app1.cnf
启动MHA
nohup masterha_manager --conf=/etc/mha/app1.cnf --remove_dead_master_conf --ignore_last_failover < /dev/null > /var/log/mha/app1/manager.log 2>&1 &
四, 故障演练
某一天主库宕机了
pkill mysqld
同时MHA架构日志:
Mon Nov :: - [warning] Got error on MySQL select ping: (MySQL server has gone away)
Mon Nov :: - [info] Executing SSH check script: exit
Mon Nov :: - [warning] Got error on MySQL connect: (Can't connect to MySQL server on '10.0.0.51' (111))
Mon Nov 26 17:31:12 2018 - [warning] Connection failed 2 time(s)..
Mon Nov 26 17:31:14 2018 - [warning] Got error on MySQL connect: 2003 (Can't connect to MySQL server on '10.0.0.51' ())
Mon Nov :: - [warning] Connection failed time(s)..
Mon Nov :: - [warning] HealthCheck: Got timeout on checking SSH connection to 10.0.0.51! at /usr/share/perl5/vendor_perl/MHA/HealthCheck.pm line .
Mon Nov :: - [warning] Got error on MySQL connect: (Can't connect to MySQL server on '10.0.0.51' (111))
Mon Nov 26 17:31:16 2018 - [warning] Connection failed 4 time(s)..
Mon Nov 26 17:31:16 2018 - [warning] Master is not reachable from health checker!
Mon Nov 26 17:31:16 2018 - [warning] Master 10.0.0.51(10.0.0.51:3306) is not reachable!
Mon Nov 26 17:31:16 2018 - [warning] SSH is NOT reachable.
Mon Nov 26 17:31:16 2018 - [info] Connecting to a master server failed. Reading configuration file /etc/masterha_default.cnf and /etc/mha/app1.cnf again, and trying to connect to all servers to check server status..
Mon Nov 26 17:31:16 2018 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Mon Nov 26 17:31:16 2018 - [info] Reading application default configuration from /etc/mha/app1.cnf..
Mon Nov 26 17:31:16 2018 - [info] Reading server configuration from /etc/mha/app1.cnf..
Mon Nov 26 17:31:17 2018 - [info] GTID failover mode = 1
Mon Nov 26 17:31:17 2018 - [info] Dead Servers:
Mon Nov 26 17:31:17 2018 - [info] 10.0.0.51(10.0.0.51:3306)
Mon Nov 26 17:31:17 2018 - [info] Alive Servers:
Mon Nov 26 17:31:17 2018 - [info] 10.0.0.52(10.0.0.52:3306)
Mon Nov 26 17:31:17 2018 - [info] 10.0.0.53(10.0.0.53:3306)
Mon Nov 26 17:31:17 2018 - [info] Alive Slaves:
Mon Nov 26 17:31:17 2018 - [info] 10.0.0.52(10.0.0.52:3306) Version=5.6.38-log (oldestmajor version between slaves) log-bin:enabled
Mon Nov 26 17:31:17 2018 - [info] GTID ON
Mon Nov 26 17:31:17 2018 - [info] Replicating from 10.0.0.51(10.0.0.51:3306)
Mon Nov 26 17:31:17 2018 - [info] 10.0.0.53(10.0.0.53:3306) Version=5.6.38-log (oldestmajor version between slaves) log-bin:enabled
Mon Nov 26 17:31:17 2018 - [info] GTID ON
Mon Nov 26 17:31:17 2018 - [info] Replicating from 10.0.0.51(10.0.0.51:3306)
Mon Nov 26 17:31:17 2018 - [info] Checking slave configurations..
Mon Nov 26 17:31:17 2018 - [info] Checking replication filtering settings..
Mon Nov 26 17:31:17 2018 - [info] Replication filtering check ok.
Mon Nov 26 17:31:17 2018 - [info] Master is down!
Mon Nov 26 17:31:17 2018 - [info] Terminating monitoring script.
Mon Nov 26 17:31:17 2018 - [info] Got exit code 20 (Master dead).
Mon Nov 26 17:31:17 2018 - [info] MHA::MasterFailover version 0.57.
Mon Nov 26 17:31:17 2018 - [info] Starting master failover.
Mon Nov 26 17:31:17 2018 - [info]
Mon Nov 26 17:31:17 2018 - [info] * Phase 1: Configuration Check Phase..
Mon Nov 26 17:31:17 2018 - [info]
Mon Nov 26 17:31:18 2018 - [info] GTID failover mode = 1
Mon Nov 26 17:31:18 2018 - [info] Dead Servers:
Mon Nov 26 17:31:18 2018 - [info] 10.0.0.51(10.0.0.51:3306)
Mon Nov 26 17:31:18 2018 - [info] Checking master reachability via MySQL(double check)...
Mon Nov 26 17:31:18 2018 - [info] ok.
Mon Nov 26 17:31:18 2018 - [info] Alive Servers:
Mon Nov 26 17:31:18 2018 - [info] 10.0.0.52(10.0.0.52:3306)
Mon Nov 26 17:31:18 2018 - [info] 10.0.0.53(10.0.0.53:3306)
Mon Nov 26 17:31:18 2018 - [info] Alive Slaves:
Mon Nov 26 17:31:18 2018 - [info] 10.0.0.52(10.0.0.52:3306) Version=5.6.38-log (oldestmajor version between slaves) log-bin:enabled
Mon Nov 26 17:31:18 2018 - [info] GTID ON
Mon Nov 26 17:31:18 2018 - [info] Replicating from 10.0.0.51(10.0.0.51:3306)
Mon Nov 26 17:31:18 2018 - [info] 10.0.0.53(10.0.0.53:3306) Version=5.6.38-log (oldestmajor version between slaves) log-bin:enabled
Mon Nov 26 17:31:18 2018 - [info] GTID ON
Mon Nov 26 17:31:18 2018 - [info] Replicating from 10.0.0.51(10.0.0.51:3306)
Mon Nov 26 17:31:18 2018 - [info] Starting GTID based failover.
Mon Nov 26 17:31:18 2018 - [info]
Mon Nov 26 17:31:18 2018 - [info] ** Phase 1: Configuration Check Phase completed.
Mon Nov 26 17:31:18 2018 - [info]
Mon Nov 26 17:31:18 2018 - [info] * Phase 2: Dead Master Shutdown Phase..
Mon Nov 26 17:31:18 2018 - [info]
Mon Nov 26 17:31:18 2018 - [info] Forcing shutdown so that applications never connect to the current master..
Mon Nov 26 17:31:18 2018 - [warning] master_ip_failover_script is not set. Skipping invalidating dead master IP address.
Mon Nov 26 17:31:18 2018 - [warning] shutdown_script is not set. Skipping explicit shutting down of the dead master.
Mon Nov 26 17:31:19 2018 - [info] * Phase 2: Dead Master Shutdown Phase completed.
Mon Nov 26 17:31:19 2018 - [info]
Mon Nov 26 17:31:19 2018 - [info] * Phase 3: Master Recovery Phase..
Mon Nov 26 17:31:19 2018 - [info]
Mon Nov 26 17:31:19 2018 - [info] * Phase 3.1: Getting Latest Slaves Phase..
Mon Nov 26 17:31:19 2018 - [info]
Mon Nov 26 17:31:19 2018 - [info] The latest binary log file/position on all slaves is mysql-bin.000003:792
Mon Nov 26 17:31:19 2018 - [info] Retrieved Gtid Set: b54af3fb-f133-11e8-825d-00505628e54f:1-3
Mon Nov 26 17:31:19 2018 - [info] Latest slaves (Slaves that received relay log files to the latest):
Mon Nov 26 17:31:19 2018 - [info] 10.0.0.52(10.0.0.52:3306) Version=5.6.38-log (oldestmajor version between slaves) log-bin:enabled
Mon Nov 26 17:31:19 2018 - [info] GTID ON
Mon Nov 26 17:31:19 2018 - [info] Replicating from 10.0.0.51(10.0.0.51:3306)
Mon Nov 26 17:31:19 2018 - [info] 10.0.0.53(10.0.0.53:3306) Version=5.6.38-log (oldestmajor version between slaves) log-bin:enabled
Mon Nov 26 17:31:19 2018 - [info] GTID ON
Mon Nov 26 17:31:19 2018 - [info] Replicating from 10.0.0.51(10.0.0.51:3306)
Mon Nov 26 17:31:19 2018 - [info] The oldest binary log file/position on all slaves is mysql-bin.000003:792
Mon Nov 26 17:31:19 2018 - [info] Retrieved Gtid Set: b54af3fb-f133-11e8-825d-00505628e54f:1-3
Mon Nov 26 17:31:19 2018 - [info] Oldest slaves:
Mon Nov 26 17:31:19 2018 - [info] 10.0.0.52(10.0.0.52:3306) Version=5.6.38-log (oldestmajor version between slaves) log-bin:enabled
Mon Nov 26 17:31:19 2018 - [info] GTID ON
Mon Nov 26 17:31:19 2018 - [info] Replicating from 10.0.0.51(10.0.0.51:3306)
Mon Nov 26 17:31:19 2018 - [info] 10.0.0.53(10.0.0.53:3306) Version=5.6.38-log (oldestmajor version between slaves) log-bin:enabled
Mon Nov 26 17:31:19 2018 - [info] GTID ON
Mon Nov 26 17:31:19 2018 - [info] Replicating from 10.0.0.51(10.0.0.51:3306)
Mon Nov 26 17:31:19 2018 - [info]
Mon Nov 26 17:31:19 2018 - [info] * Phase 3.3: Determining New Master Phase..
Mon Nov 26 17:31:19 2018 - [info]
Mon Nov 26 17:31:19 2018 - [info] Searching new master from slaves..
Mon Nov 26 17:31:19 2018 - [info] Candidate masters from the configuration file:
Mon Nov 26 17:31:19 2018 - [info] Non-candidate masters:
Mon Nov 26 17:31:19 2018 - [info] New master is 10.0.0.52(10.0.0.52:3306)
Mon Nov 26 17:31:19 2018 - [info] Starting master failover..
Mon Nov 26 17:31:19 2018 - [info]
From:
10.0.0.51(10.0.0.51:3306) (current master)
+--10.0.0.52(10.0.0.52:3306)
+--10.0.0.53(10.0.0.53:3306) To:
10.0.0.52(10.0.0.52:3306) (new master)
+--10.0.0.53(10.0.0.53:3306)
Mon Nov 26 17:31:19 2018 - [info]

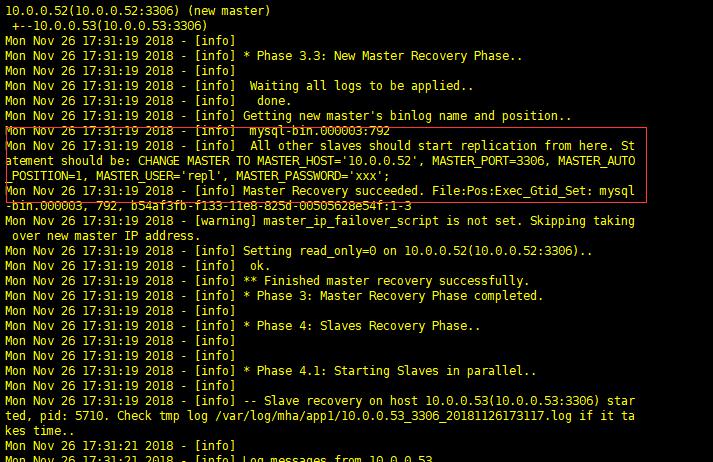

Mon Nov 26 17:31:19 2018 - [info] * Phase 3.3: New Master Recovery Phase..
Mon Nov 26 17:31:19 2018 - [info]
Mon Nov 26 17:31:19 2018 - [info] Waiting all logs to be applied..
Mon Nov 26 17:31:19 2018 - [info] done.
Mon Nov 26 17:31:19 2018 - [info] Getting new master's binlog name and position..
Mon Nov :: - [info] mysql-bin.:
Mon Nov :: - [info] All other slaves should start replication from here. Statement should be: CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=, MASTER_AUTO_POSITION=, MASTER_USER='repl', MASTER_PASSWORD='xxx';
Mon Nov :: - [info] Master Recovery succeeded. File:Pos:Exec_Gtid_Set: mysql-bin., , b54af3fb-f133-11e8-825d-00505628e54f:-
Mon Nov :: - [warning] master_ip_failover_script is not set. Skipping taking over new master IP address.
Mon Nov :: - [info] Setting read_only= on 10.0.0.52(10.0.0.52:)..
Mon Nov :: - [info] ok.
Mon Nov :: - [info] ** Finished master recovery successfully.
Mon Nov :: - [info] * Phase : Master Recovery Phase completed.
Mon Nov :: - [info]
Mon Nov :: - [info] * Phase : Slaves Recovery Phase..
Mon Nov :: - [info]
Mon Nov :: - [info]
Mon Nov :: - [info] * Phase 4.1: Starting Slaves in parallel..
Mon Nov :: - [info]
Mon Nov :: - [info] -- Slave recovery on host 10.0.0.53(10.0.0.53:) started, pid: . Check tmp log /var/log/mha/app1/10.0..53_3306_20181126173117.log if it takes time..
Mon Nov :: - [info]
Mon Nov :: - [info] Log messages from 10.0.0.53 ...
Mon Nov :: - [info]
Mon Nov :: - [info] Resetting slave 10.0.0.53(10.0.0.53:) and startingreplication from the new master 10.0.0.52(10.0.0.52:)..
Mon Nov :: - [info] Executed CHANGE MASTER.
Mon Nov :: - [info] Slave started.
Mon Nov :: - [info] gtid_wait(b54af3fb-f133-11e8-825d-00505628e54f:-) completed on 10.0.0.53(10.0.0.53:). Executed events.
Mon Nov :: - [info] End of log messages from 10.0.0.53.
Mon Nov :: - [info] -- Slave on host 10.0.0.53(10.0.0.53:) started.
Mon Nov :: - [info] All new slave servers recovered successfully.
Mon Nov :: - [info]
Mon Nov :: - [info] * Phase : New master cleanup phase..
Mon Nov :: - [info]
Mon Nov :: - [info] Resetting slave info on the new master..
Mon Nov :: - [info] 10.0.0.52: Resetting slave info succeeded.
Mon Nov :: - [info] Master failover to 10.0.0.52(10.0.0.52:) completed successfully.
Mon Nov :: - [info] Deleted server1 entry from /etc/mha/app1.cnf .
Mon Nov :: - [info] ----- Failover Report ----- app1: MySQL Master failover 10.0.0.51(10.0.0.51:) to 10.0.0.52(10.0.0.52:) succeeded Master 10.0.0.51(10.0.0.51:) is down! Check MHA Manager logs at db03:/var/log/mha/app1/manager for details. Started automated(non-interactive) failover.
Selected 10.0.0.52(10.0.0.52:) as a new master.
10.0.0.52(10.0.0.52:): OK: Applying all logs succeeded.
10.0.0.53(10.0.0.53:): OK: Slave started, replicating from 10.0.0.52(10.0.0.52:)
10.0.0.52(10.0.0.52:): Resetting slave info succeeded.
Master failover to 10.0.0.52(10.0.0.52:) completed successfully.
可以发现主库实现漂移自动转到53节点
恢复机器:
再MHA的日志这里可以看见他说明了要恢复服务器的内容
而且
vim /etc/mha/app1.cnf
配置文件中不需要的服务器自动删除
重新启动服务器的话需要把配置文件重新配置
[server default]
manager_log=/var/log/mha/app1/manager
manager_workdir=/var/log/mha/app1
master_binlog_dir=/data/mysql/
password=mha
ping_interval=
repl_password=
repl_user=repl
ssh_user=root
user=mha [server1]
hostname=10.0.0.51
port= [server2]
hostname=10.0.0.52
port= [server3]
hostname=10.0.0.53
port=

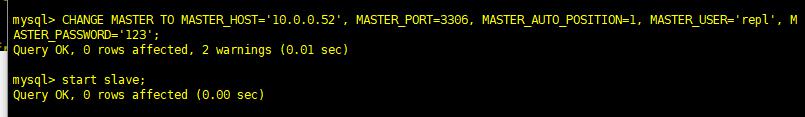

再宕机的服务器重新配置slave
CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=3306, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123'; start slave;
MHA重新启动
重新检测:
[root@db03 ~]# masterha_check_ssh --conf=/etc/mha/app1.cnf
Mon Nov :: - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Mon Nov :: - [info] Reading application default configuration from /etc/mha/app1.cnf..
Mon Nov :: - [info] Reading server configuration from /etc/mha/app1.cnf..
Mon Nov :: - [info] Starting SSH connection tests..
Mon Nov :: - [debug]
Mon Nov :: - [debug] Connecting via SSH from root@10.0.0.51(10.0.0.51:) to root@10.0.0.52(10.0.0.52:)..
Mon Nov :: - [debug] ok.
Mon Nov :: - [debug] Connecting via SSH from root@10.0.0.51(10.0.0.51:) to root@10.0.0.53(10.0.0.53:)..
Mon Nov :: - [debug] ok.
Mon Nov :: - [debug]
Mon Nov :: - [debug] Connecting via SSH from root@10.0.0.52(10.0.0.52:) to root@10.0.0.51(10.0.0.51:)..
Mon Nov :: - [debug] ok.
Mon Nov :: - [debug] Connecting via SSH from root@10.0.0.52(10.0.0.52:) to root@10.0.0.53(10.0.0.53:)..
Mon Nov :: - [debug] ok.
Mon Nov :: - [debug]
Mon Nov :: - [debug] Connecting via SSH from root@10.0.0.53(10.0.0.53:) to root@10.0.0.51(10.0.0.51:)..
Mon Nov :: - [debug] ok.
Mon Nov :: - [debug] Connecting via SSH from root@10.0.0.53(10.0.0.53:) to root@10.0.0.52(10.0.0.52:)..
Mon Nov :: - [debug] ok.
Mon Nov :: - [info] All SSH connection tests passed successfully.
[root@db03 ~]#
nohup masterha_manager --conf=/etc/mha/app1.cnf --remove_dead_master_conf --ignore_last_failover< /dev/null > /var/log/mha/app1/manager.log >& &
