flowable一个简单的例子

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"
xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"
xmlns:activiti="http://activiti.org/bpmn"
typeLanguage="http://www.w3.org/2001/XMLSchema"
expressionLanguage="http://www.w3.org/1999/XPath"

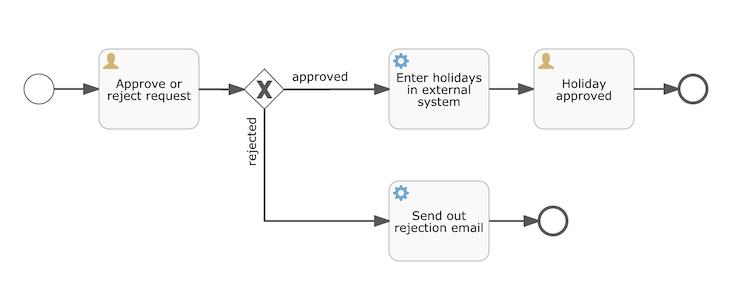

targetNamespace="http://www.flowable.org/processdef"> <process id="holidayRequest" name="Holiday Request" isExecutable="true"> <startEvent id="startEvent"/>
<sequenceFlow sourceRef="startEvent" targetRef="approveTask"/> <userTask id="approveTask" name="Approve or reject request" activiti:candidateGroups="managers"/>
<sequenceFlow sourceRef="approveTask" targetRef="decision"/> <exclusiveGateway id="decision"/>
<sequenceFlow sourceRef="decision" targetRef="externalSystemCall">
<conditionExpression xsi:type="tFormalExpression">
<![CDATA[
${approved}
]]>
</conditionExpression>
</sequenceFlow>
<sequenceFlow sourceRef="decision" targetRef="sendRejectionMail">
<conditionExpression xsi:type="tFormalExpression">
<![CDATA[
${!approved}
]]>
</conditionExpression>
</sequenceFlow> <serviceTask id="externalSystemCall" name="Enter holidays in external system" activiti:class="com.sky.flowable.CallExternalSystemDelegate"/>
<sequenceFlow sourceRef="externalSystemCall" targetRef="holidayApprovedTask"/> <userTask id="holidayApprovedTask" name="Holiday approved" activiti:assignee="${employee}"/>
<sequenceFlow sourceRef="holidayApprovedTask" targetRef="approveEnd"/> <serviceTask id="sendRejectionMail" name="Send out rejection email" activiti:class="com.sky.flowable.SendRejectionMail"/>
<sequenceFlow sourceRef="sendRejectionMail" targetRef="rejectEnd"/> <endEvent id="approveEnd"/> <endEvent id="rejectEnd"/> </process></definitions>

package com.sky.flowable;import org.activiti.engine.*;
import org.activiti.engine.history.HistoricActivityInstance;
import org.activiti.engine.impl.cfg.StandaloneProcessEngineConfiguration;
import org.activiti.engine.repository.Deployment;
import org.activiti.engine.repository.ProcessDefinition;
import org.activiti.engine.runtime.ProcessInstance;
import org.activiti.engine.task.Task;import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Scanner;/**
* @author sky
* @version 1.0
* @since 4.0
*/
public class main {
public static void main(String[] args) {
ProcessEngineConfiguration cfg = new StandaloneProcessEngineConfiguration()
.setJdbcUrl("jdbc:h2:mem:flowable;DB_CLOSE_DELAY=-1")
.setJdbcUsername("sa")
.setJdbcPassword("")
.setJdbcDriver("org.h2.Driver")
.setDatabaseSchemaUpdate(ProcessEngineConfiguration.DB_SCHEMA_UPDATE_TRUE); ProcessEngine processEngine = cfg.buildProcessEngine(); /*创建了一个新的部署*/
RepositoryService repositoryService = processEngine.getRepositoryService();
Deployment deployment = repositoryService.createDeployment()
.addClasspathResource("holiday-request.bpmn20.xml") //TODO holiday.xml命名为何不行?
.deploy(); /*部署流程定义*/
ProcessDefinition processDefinition = repositoryService.createProcessDefinitionQuery()
.deploymentId(deployment.getId())
.singleResult();
System.out.println("Found process definition : " + processDefinition.getName()); Scanner scanner= new Scanner(System.in);
System.out.println("Who are you?");
String employee = scanner.nextLine();
System.out.println("How many holidays do you want to request?");
Integer nrOfHolidays = Integer.valueOf(scanner.nextLine());
System.out.println("Why do you need them?");
String description = scanner.nextLine(); RuntimeService runtimeService = processEngine.getRuntimeService();
/*参数传递*/
Map<String, Object> variables = new HashMap<String, Object>();
variables.put("employee", employee);
variables.put("nrOfHolidays", nrOfHolidays);
variables.put("description", description);
/*通过RuntimeService启动流程实例*/
ProcessInstance processInstance =
runtimeService.startProcessInstanceByKey("holidayRequest", variables); /*得到实际的“managers”组任务列表*/
TaskService taskService = processEngine.getTaskService();
List<Task> tasks = taskService.createTaskQuery().taskCandidateGroup("managers").list();
System.out.println("You have " + tasks.size() + " tasks:");
for (int i=0; i<tasks.size(); i++) {
System.out.println((i+1) + ") " + tasks.get(i).getName());
} /*获取特定的流程实例变量*/
System.out.println("Which task would you like to complete?");
int taskIndex = Integer.valueOf(scanner.nextLine());
Task task = tasks.get(taskIndex - 1);
Map<String, Object> processVariables = taskService.getVariables(task.getId());
System.out.println(processVariables.get("employee") + " wants " + processVariables.get("nrOfHolidays") + " of holidays. Do you approve this?"); /*完成任务，传递排他网关条件*/
boolean approved = scanner.nextLine().toLowerCase().equals("y");
variables = new HashMap<String, Object>();
variables.put("approved", approved);
taskService.complete(task.getId(), variables); /*只有一个特定流程实例的活动
只有完成的活动
按结束时间排序*/
HistoryService historyService = processEngine.getHistoryService();
List<HistoricActivityInstance> activities =
historyService.createHistoricActivityInstanceQuery()
.processInstanceId(processInstance.getId())
.finished()
.orderByHistoricActivityInstanceEndTime().asc()
.list();
for (HistoricActivityInstance activity : activities) {
System.out.println(activity.getActivityId() + " took "
+ activity.getDurationInMillis() + " milliseconds");
}
}
}

public class CallExternalSystemDelegate implements JavaDelegate {
public void execute(DelegateExecution execution) {
System.out.println("Calling the external system for employee "
+ execution.getVariable("employee"));
}
}

public class SendRejectionMail implements JavaDelegate {
public void execute(DelegateExecution execution) {
System.out.println("Calling the external system for employee "
+ execution.getVariable("employee") + " Rejection---------------------");
}
}
