前言

基于上篇文章"基于Tomcat + JNDI + ActiveMQ实现JMS的点对点消息传送"很容易就可以编写一个发布/订阅消息传送例子，相关环境准备与该篇文章基本类似，主要的区别如下。

在Tomcat中配置JNDI

配置连接工厂和话题

<Resource name="topic/connectionFactory" auth="Container"
type="org.apache.activemq.ActiveMQConnectionFactory" description="JMS Connection Factory"
factory="org.apache.activemq.jndi.JNDIReferenceFactory"
brokerURL="failover:(tcp://localhost:61616)?initialReconnectDelay=100&amp;maxReconnectAttempts=5"
brokerName="LocalActiveMQBroker" useEmbeddedBroker="false" /> <Resource name="topic/topic0"
auth="Container"
type="org.apache.activemq.command.ActiveMQTopic" description="My Topic" factory="org.apache.activemq.jndi.JNDIReferenceFactory"
physicalName="TestTopic" />

在Web工厂中编写代码

新建一个发布者Servlet

package pubSub;import java.io.IOException;
import java.io.PrintWriter;import javax.naming.InitialContext;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.jms.Topic;
import javax.jms.Session;
import javax.jms.TextMessage;
import javax.jms.TopicPublisher;
import javax.jms.DeliveryMode;
import javax.jms.TopicSession;
import javax.jms.TopicConnection;
import javax.jms.TopicConnectionFactory;/**
* Servlet implementation class JMSTest
*/
@WebServlet("/Publish")
public class Publisher extends HttpServlet {
private static final long serialVersionUID = 1L; /**
* @see HttpServlet#HttpServlet()
*/
public Publisher() {
super();
// TODO Auto-generated constructor stub
} /**
* @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse
* response)
*/
protected void doGet(HttpServletRequest request,
HttpServletResponse response) throws ServletException, IOException {
PrintWriter out = response.getWriter(); try {
// get the initial context
InitialContext ctx = new InitialContext(); // lookup the topic object
Topic topic = (Topic) ctx.lookup("java:comp/env/topic/topic0"); // lookup the topic connection factory
TopicConnectionFactory connFactory = (TopicConnectionFactory) ctx
.lookup("java:comp/env/topic/connectionFactory"); // create a topic connection
TopicConnection topicConn = connFactory.createTopicConnection(); // create a topic session
TopicSession topicSession = topicConn.createTopicSession(false,
Session.AUTO_ACKNOWLEDGE); // create a topic publisher
TopicPublisher topicPublisher = topicSession.createPublisher(topic);
topicPublisher.setDeliveryMode(DeliveryMode.NON_PERSISTENT); // create the "Hello World" message
TextMessage message = topicSession.createTextMessage();
message.setText("Hello World"); // publish the messages
topicPublisher.publish(message); // print what we did
out.write("Message published: " + message.getText()); // close the topic connection
topicConn.close();
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
} } /**
* @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse
* response)
*/
protected void doPost(HttpServletRequest request,
HttpServletResponse response) throws ServletException, IOException {
// TODO Auto-generated method stub
}}

新建一个订阅者Servlet

package pubSub;import java.io.IOException;
import java.io.PrintWriter;import javax.jms.Session;
import javax.jms.TextMessage;
import javax.jms.Topic;
import javax.jms.TopicConnection;
import javax.jms.TopicConnectionFactory;
import javax.jms.TopicSession;
import javax.jms.TopicSubscriber;
import javax.naming.InitialContext;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;/**
* Servlet implementation class Receive
*/
@WebServlet("/Subscribe")
public class Subscriber extends HttpServlet {
private static final long serialVersionUID = 1L; /**
* @see HttpServlet#HttpServlet()
*/
public Subscriber() {
super();
// TODO Auto-generated constructor stub
} /**
* @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse
* response)
*/
protected void doGet(HttpServletRequest request,
HttpServletResponse response) throws ServletException, IOException {
PrintWriter out = response.getWriter(); try {
// get the initial context
InitialContext ctx = new InitialContext(); // lookup the topic object
Topic topic = (Topic) ctx.lookup("java:comp/env/topic/topic0"); // lookup the topic connection factory
TopicConnectionFactory connFactory = (TopicConnectionFactory) ctx
.lookup("java:comp/env/topic/connectionFactory"); // create a topic connection
TopicConnection topicConn = connFactory.createTopicConnection(); // create a topic session
TopicSession topicSession = topicConn.createTopicSession(false,
Session.AUTO_ACKNOWLEDGE); // create a topic subscriber
TopicSubscriber topicSubscriber = topicSession
.createSubscriber(topic); // start the connection
topicConn.start(); // receive the message
TextMessage message = (TextMessage) topicSubscriber.receive(); // print the message
out.write("Message received: " + message.getText()); // close the topic connection
topicConn.close();
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
} /**
* @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse
* response)
*/
protected void doPost(HttpServletRequest request,
HttpServletResponse response) throws ServletException, IOException {
// TODO Auto-generated method stub
}}

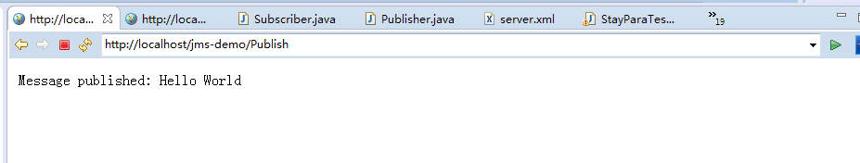

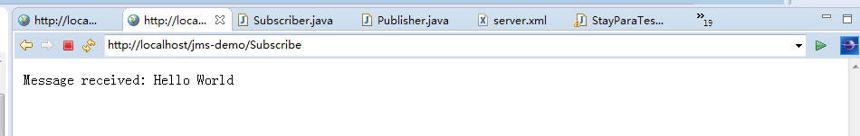

运行Web工程，分别打开多个标签访问订阅servlet，然后访问发布servlet，结果如下：

在订阅者订阅消息的时候，一开始没接收到消息，一旦发布者发布消息后，订阅者马上收到消息。

参考资料

http://howtodoinjava.com/jms/jms-publish-subscribe-message-example/
