Bluefruit LE Sniffer - Bluetooth Low Energy (BLE 4.0) - nRF51822 驱动安装及使用

IP云
IP云V管理员/4 阅读
08/01
提示：扫一扫查出行
【扫一扫了解最新限行尾号】
复制提示

BLE Sniffer

https://www.adafruit.com/product/2269

Bluefruit LE Sniffer - Bluetooth Low Energy (BLE 4.0) - nRF51822

nrf51822模块

https://cdn-shop.adafruit.com/product-files/2267/MDBT40-P256R.pdf

驱动安装

  • 安装wireshark

    Wireshark v2.4.6 or later available from http://www.wireshark.org/.

  • 安装 CP210x USB to UART Bridge VCP Drivers

    需要安装USB to UART 驱动

    https://learn.adafruit.com/introducing-the-adafruit-bluefruit-le-sniffer/usb-driver-install

  • 安装python2.7

    wireshark Nordic plugin只支持2.7版本

  • 安装wireshark Nordic plugin

    从下面的链接中下载plugin, 安装链接中的guide安装

    https://learn.adafruit.com/introducing-the-adafruit-bluefruit-le-sniffer/v2-wireshark-usage

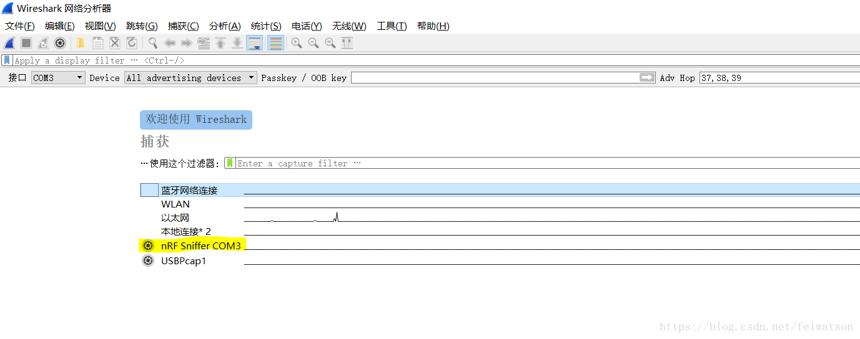

安装完成后，如下图，将出现 “nRF Sniffer COMx" 接口

捕获

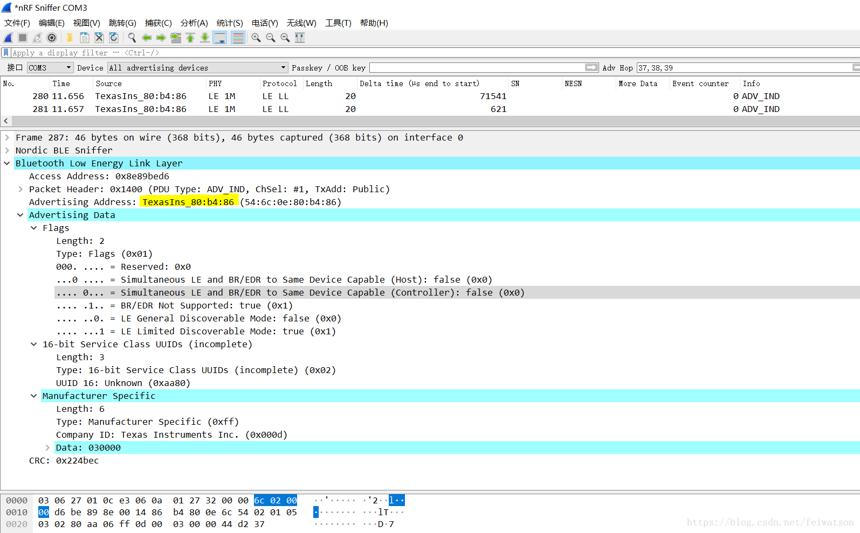

如下图为捕获的TI sensorTag 的广播报文

Reference

https://learn.adafruit.com/introducing-the-adafruit-bluefruit-le-sniffer/introduction

https://learn.adafruit.com/introducing-the-adafruit-bluefruit-le-sniffer/usb-driver-install

https://learn.adafruit.com/introducing-the-adafruit-bluefruit-le-sniffer/using-with-sniffer-v2

https://learn.adafruit.com/introducing-the-adafruit-bluefruit-le-sniffer/v2-wireshark-usage
