Ti 949 配置 948 i2c
提示：扫一扫查出行【扫一扫了解最新限行尾号】
复制提示

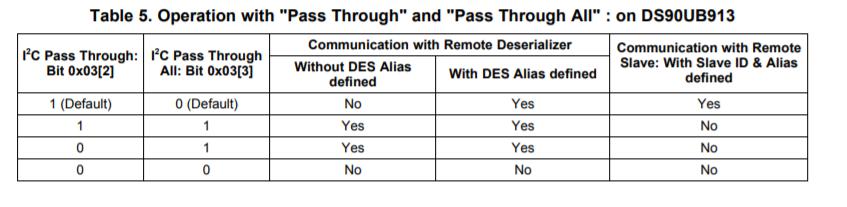

如果不想用 远端 slave，只访问948 选 i2c pass through all =1 ；i2c pass through =0/1

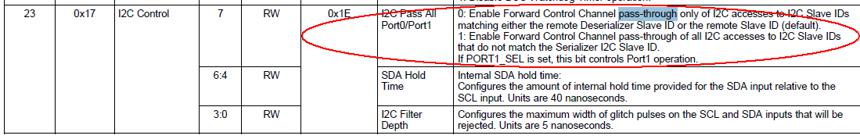

0x0c 0x17 0x9e
如果想用远端 slave，和948 ，选择 i2c pass through all = i2c pass through = 1
0x0c 0x07 0x60(slave 的i2c地址 8bit)
0x0c 0x08 0x62 (在949 总线上扫描到的新地址 0x62 8bit)
0x0c 0x17 0x9e

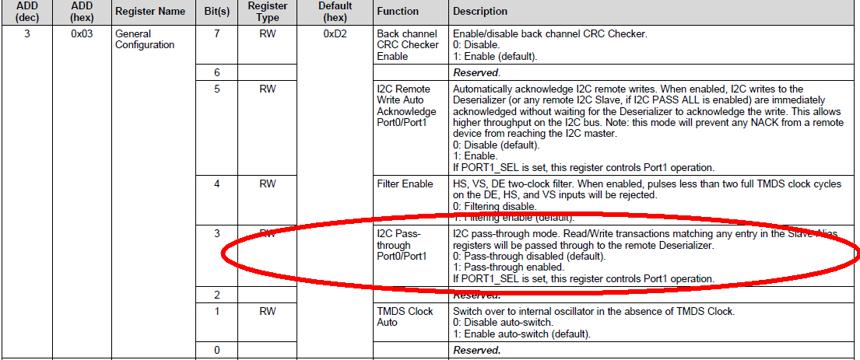

0x0c 0x03 0xda
949芯片的I2c pass through
PASS through ALL
