首先参考https://www.jianshu.com/p/4eaedaeafcb4

这是一个傻瓜似的目标检测样例，目前还不清楚图片怎么转换，怎么验证，后续继续跟进

模型测试
（1）图片数据集上测试

python examples/ssd/score_ssd_pascal.py

输出为

I0505 ::27.929069  caffe.cpp:] Finetuning from models/VGGNet/VOC0712/SSD_300x300/VGG_VOC0712_SSD_300x300_iter_120000.caffemodel

I0505 ::28.052016  net.cpp:] Ignoring source layer mbox_loss

I0505 ::28.053956  caffe.cpp:] Starting Optimization

I0505 ::28.053966  solver.cpp:] Solving VGG_VOC0712_SSD_300x300_train

I0505 ::28.053969  solver.cpp:] Learning Rate Policy: multistep

I0505 ::28.197612  solver.cpp:] Iteration , loss = 1.45893

I0505 ::28.197657  solver.cpp:] Iteration , Testing net (#)

I0505 ::28.213793  net.cpp:] Ignoring source layer mbox_loss

I0505 ::04.390517  solver.cpp:]     Test net output #: detection_eval = 0.570833

I0505 ::04.414819  solver.cpp:] Optimization Done.

I0505 ::04.414847  caffe.cpp:] Optimization Done.

作者：Ericzhang922

链接：https://www.jianshu.com/p/4eaedaeafcb4

來源：简书

简书著作权归作者所有，任何形式的转载都请联系作者获得授权并注明出处。

可以看到图片数据集上的检测结果为57.0833%。利用python examples/ssd/ssd_detect.py可以用单张图片测试检测效果(注意文件内加载文件的路径，如果报错修改为绝对路径)：

可以得到如下结果

然后来看ssd_detect.py中的代码

#encoding=utf8

'''

Detection with SSD

In this example, we will load a SSD model and use it to detect objects.

'''

import os

import sys

import argparse

import numpy as np

from PIL import Image, ImageDraw

# Make sure that caffe is on the python path:

caffe_root = './'

os.chdir(caffe_root)

sys.path.insert(0, os.path.join(caffe_root, 'python'))

import caffe

from google.protobuf import text_format

from caffe.proto import caffe_pb2

def get_labelname(labelmap, labels):

    num_labels = len(labelmap.item)

    labelnames = []

    if type(labels) is not list:

        labels = [labels]

    for label in labels:

        found = False

        for i in xrange(0, num_labels):

            if label == labelmap.item[i].label:

                found = True

                labelnames.append(labelmap.item[i].display_name)

                break

        assert found == True

    return labelnames

class CaffeDetection:

    def __init__(self, gpu_id, model_def, model_weights, image_resize, labelmap_file):

        caffe.set_device(gpu_id)

        caffe.set_mode_gpu()

        self.image_resize = image_resize

        # Load the net in the test phase for inference, and configure input preprocessing.

        self.net = caffe.Net(model_def,      # defines the structure of the model

                             model_weights,  # contains the trained weights

                             caffe.TEST)     # use test mode (e.g., don't perform dropout)

         # input preprocessing: 'data' is the name of the input blob == net.inputs[0]

        self.transformer = caffe.io.Transformer({'data': self.net.blobs['data'].data.shape})

        self.transformer.set_transpose('data', (2, 0, 1))

        self.transformer.set_mean('data', np.array([104, 117, 123])) # mean pixel

        # the reference model operates on images in [0,255] range instead of [0,1]

        self.transformer.set_raw_scale('data', 255)

        # the reference model has channels in BGR order instead of RGB

        self.transformer.set_channel_swap('data', (2, 1, 0))

        # load PASCAL VOC labels

        file = open(labelmap_file, 'r')

        self.labelmap = caffe_pb2.LabelMap()

        text_format.Merge(str(file.read()), self.labelmap)

    def detect(self, image_file, conf_thresh=0.5, topn=5):

        '''

        SSD detection

        '''

        # set net to batch size of 1

        # image_resize = 300

        self.net.blobs['data'].reshape(1, 3, self.image_resize, self.image_resize)

        image = caffe.io.load_image(image_file)

        #Run the net and examine the top_k results

        transformed_image = self.transformer.preprocess('data', image)

        self.net.blobs['data'].data[...] = transformed_image

        # Forward pass.

        detections = self.net.forward()['detection_out']

        # Parse the outputs.

        det_label = detections[0,0,:,1]

        det_conf = detections[0,0,:,2]

        det_xmin = detections[0,0,:,3]

        det_ymin = detections[0,0,:,4]

        det_xmax = detections[0,0,:,5]

        det_ymax = detections[0,0,:,6]

        # Get detections with confidence higher than 0.6.

        top_indices = [i for i, conf in enumerate(det_conf) if conf >= conf_thresh]

        top_conf = det_conf[top_indices]

        top_label_indices = det_label[top_indices].tolist()

        top_labels = get_labelname(self.labelmap, top_label_indices)

        top_xmin = det_xmin[top_indices]

        top_ymin = det_ymin[top_indices]

        top_xmax = det_xmax[top_indices]

        top_ymax = det_ymax[top_indices]

        result = []

        for i in xrange(min(topn, top_conf.shape[0])):

            xmin = top_xmin[i] # xmin = int(round(top_xmin[i] * image.shape[1]))

            ymin = top_ymin[i] # ymin = int(round(top_ymin[i] * image.shape[0]))

            xmax = top_xmax[i] # xmax = int(round(top_xmax[i] * image.shape[1]))

            ymax = top_ymax[i] # ymax = int(round(top_ymax[i] * image.shape[0]))

            score = top_conf[i]

            label = int(top_label_indices[i])

            label_name = top_labels[i]

            result.append([xmin, ymin, xmax, ymax, label, score, label_name])

        return result

def main(args):

    '''main '''

    detection = CaffeDetection(args.gpu_id,

                               args.model_def, args.model_weights,

                               args.image_resize, args.labelmap_file)

    result = detection.detect(args.image_file)

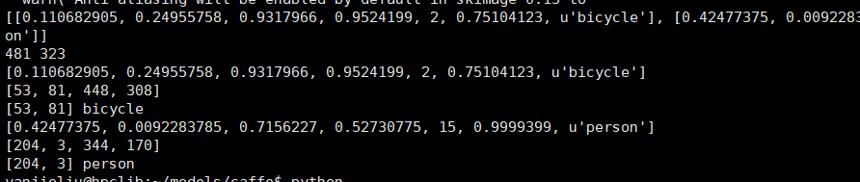

    print result

    img = Image.open(args.image_file)

    draw = ImageDraw.Draw(img)

    width, height = img.size

    print width, height

    for item in result:

        xmin = int(round(item[0] * width))

        ymin = int(round(item[1] * height))

        xmax = int(round(item[2] * width))

        ymax = int(round(item[3] * height))

        draw.rectangle([xmin, ymin, xmax, ymax], outline=(255, 0, 0))

        draw.text([xmin, ymin], item[-1] + str(item[-2]), (0, 0, 255))

        print item

        print [xmin, ymin, xmax, ymax]

        print [xmin, ymin], item[-1]

    img.save('detect_result.jpg')

def parse_args():

    '''parse args'''

    parser = argparse.ArgumentParser()

    parser.add_argument('--gpu_id', type=int, default=0, help='gpu id')

    parser.add_argument('--labelmap_file',

                        default='data/VOC0712/labelmap_voc.prototxt')

    parser.add_argument('--model_def',

                        default='models/VGGNet/VOC0712/SSD_300x300/deploy.prototxt')

    parser.add_argument('--image_resize', default=300, type=int)

    parser.add_argument('--model_weights',

                        default='models/VGGNet/VOC0712/SSD_300x300/'

                        'VGG_VOC0712_SSD_300x300_iter_120000.caffemodel')

    parser.add_argument('--image_file', default='examples/images/fish-bike.jpg')

    return parser.parse_args()

if __name__ == '__main__':

    main(parse_args())

首先看传参这部分

def parse_args():

    '''parse args'''

    parser = argparse.ArgumentParser()

    parser.add_argument('--gpu_id', type=int, default=0, help='gpu id')

    parser.add_argument('--labelmap_file',

                        default='data/VOC0712/labelmap_voc.prototxt')

    parser.add_argument('--model_def',

                        default='models/VGGNet/VOC0712/SSD_300x300/deploy.prototxt')

    parser.add_argument('--image_resize', default=300, type=int)

    parser.add_argument('--model_weights',

                        default='models/VGGNet/VOC0712/SSD_300x300/'

                        'VGG_VOC0712_SSD_300x300_iter_120000.caffemodel')

    parser.add_argument('--image_file', default='examples/images/fish-bike.jpg')

    return parser.parse_args()

通过这部分的代码，我们可以看到进行检测时与训练时不一样，不需要对图片格式进行转换，直接输入原始图片就可以

所以，利用此命令 python ./examples/ssd/ssd_detect.py --image_file examples/images/fish-bike.jpg 可以指定用来检测的图片，

根据自己图片的位置，调整参数 python ./examples/ssd/ssd_detect.py --image_file ~/dataset/img_test/p1.jpg ，又因为需要进行时间统计，所以对代码进行修改。加入时间统计的函数，如下

#encoding=utf8

'''

Detection with SSD

In this example, we will load a SSD model and use it to detect objects.

'''

import os

import sys

import argparse

import numpy as np

from PIL import Image, ImageDraw

import time

# Make sure that caffe is on the python path:

caffe_root = './'

os.chdir(caffe_root)

sys.path.insert(0, os.path.join(caffe_root, 'python'))

import caffe

from google.protobuf import text_format

from caffe.proto import caffe_pb2

def get_labelname(labelmap, labels):

    num_labels = len(labelmap.item)

    labelnames = []

    if type(labels) is not list:

        labels = [labels]

    for label in labels:

        found = False

        for i in xrange(0, num_labels):

            if label == labelmap.item[i].label:

                found = True

                labelnames.append(labelmap.item[i].display_name)

                break

        assert found == True

    return labelnames

class CaffeDetection:

    def __init__(self, gpu_id, model_def, model_weights, image_resize, labelmap_file):

        caffe.set_device(gpu_id)

        caffe.set_mode_gpu()

        self.image_resize = image_resize

        # Load the net in the test phase for inference, and configure input preprocessing.

        self.net = caffe.Net(model_def,      # defines the structure of the model

                             model_weights,  # contains the trained weights

                             caffe.TEST)     # use test mode (e.g., don't perform dropout)

         # input preprocessing: 'data' is the name of the input blob == net.inputs[0]

        self.transformer = caffe.io.Transformer({'data': self.net.blobs['data'].data.shape})

        self.transformer.set_transpose('data', (2, 0, 1))

        self.transformer.set_mean('data', np.array([104, 117, 123])) # mean pixel

        # the reference model operates on images in [0,255] range instead of [0,1]

        self.transformer.set_raw_scale('data', 255)

        # the reference model has channels in BGR order instead of RGB

        self.transformer.set_channel_swap('data', (2, 1, 0))

        # load PASCAL VOC labels

        file = open(labelmap_file, 'r')

        self.labelmap = caffe_pb2.LabelMap()

        text_format.Merge(str(file.read()), self.labelmap)

    def detect(self, image_file, conf_thresh=0.5, topn=5):

        '''

        SSD detection

        '''

        # set net to batch size of 1

        # image_resize = 300

        self.net.blobs['data'].reshape(1, 3, self.image_resize, self.image_resize)

        image = caffe.io.load_image(image_file)

        #Run the net and examine the top_k results

        transformed_image = self.transformer.preprocess('data', image)

        self.net.blobs['data'].data[...] = transformed_image

        # Forward pass.

        detections = self.net.forward()['detection_out']

        # Parse the outputs.

        det_label = detections[0,0,:,1]

        det_conf = detections[0,0,:,2]

        det_xmin = detections[0,0,:,3]

        det_ymin = detections[0,0,:,4]

        det_xmax = detections[0,0,:,5]

        det_ymax = detections[0,0,:,6]

        # Get detections with confidence higher than 0.6.

        top_indices = [i for i, conf in enumerate(det_conf) if conf >= conf_thresh]

        top_conf = det_conf[top_indices]

        top_label_indices = det_label[top_indices].tolist()

        top_labels = get_labelname(self.labelmap, top_label_indices)

        top_xmin = det_xmin[top_indices]

        top_ymin = det_ymin[top_indices]

        top_xmax = det_xmax[top_indices]

        top_ymax = det_ymax[top_indices]

        result = []

        for i in xrange(min(topn, top_conf.shape[0])):

            xmin = top_xmin[i] # xmin = int(round(top_xmin[i] * image.shape[1]))

            ymin = top_ymin[i] # ymin = int(round(top_ymin[i] * image.shape[0]))

            xmax = top_xmax[i] # xmax = int(round(top_xmax[i] * image.shape[1]))

            ymax = top_ymax[i] # ymax = int(round(top_ymax[i] * image.shape[0]))

            score = top_conf[i]

            label = int(top_label_indices[i])

            label_name = top_labels[i]

            result.append([xmin, ymin, xmax, ymax, label, score, label_name])

        return result

def main(args):

    '''main '''

    start = time.time()

    detection = CaffeDetection(args.gpu_id,

                               args.model_def, args.model_weights,

                               args.image_resize, args.labelmap_file)

    result = detection.detect(args.image_file)

    end = time.time()

    print('time:\n')

    print str(end-start)

    with open('./mcode/ssd_outputs.txt', 'a') as f:

        f.write('\n')

        f.write(str(end-start))

    print result

    img = Image.open(args.image_file)

    draw = ImageDraw.Draw(img)

    width, height = img.size

    print width, height

    for item in result:

        xmin = int(round(item[0] * width))

        ymin = int(round(item[1] * height))

        xmax = int(round(item[2] * width))

        ymax = int(round(item[3] * height))

        draw.rectangle([xmin, ymin, xmax, ymax], outline=(255, 0, 0))

        draw.text([xmin, ymin], item[-1] + str(item[-2]), (0, 0, 255))

        print item

        print [xmin, ymin, xmax, ymax]

        print [xmin, ymin], item[-1]

    img.save('detect_result.jpg')

def parse_args():

    '''parse args'''

    parser = argparse.ArgumentParser()

    parser.add_argument('--gpu_id', type=int, default=0, help='gpu id')

    parser.add_argument('--labelmap_file',

                        default='data/VOC0712/labelmap_voc.prototxt')

    parser.add_argument('--model_def',

                        default='models/VGGNet/VOC0712/SSD_300x300/deploy.prototxt')

    parser.add_argument('--image_resize', default=300, type=int)

    parser.add_argument('--model_weights',

                        default='models/VGGNet/VOC0712/SSD_300x300/'

                        'VGG_VOC0712_SSD_300x300_iter_120000.caffemodel')

    parser.add_argument('--image_file', default='examples/images/fish-bike.jpg')

    return parser.parse_args()

if __name__ == '__main__':

    main(parse_args())
