Mat对象：图像文件的内存数据对象

读取为 Mat 对象

读取图像位Mat对象，获取图像的相关信息

#include <opencv2/opencv.hpp>

#include <iostream>

using namespace cv;

using namespace std;

int main(int argc, char** argv)

{

    Mat src = imread("f:/temp/images/lena.jpg", IMREAD_GRAYSCALE);

    if (src.empty())

    {

        printf("Could not find the image!\n");

        return -1;

    }

    namedWindow("002-demo", WINDOW_AUTOSIZE);

    imshow("002-demo", src);

    // 获取图像的宽度

    int width = src.cols;

    // 获取图像的高度

    int height = src.rows;

    // 获取图像的通道数

    int dim = src.channels();

    int depth = src.depth();

    int type = src.type();

    if (type == CV_8UC1)

    {

        printf("type：CV_8UC1\n");

    }

    // 这里打印出来depth和type有时候为0，并不代表深度为0，而是代表一个枚举类型的值

    printf("width: %d, height: %d, dim: %d, depth: %d, type: %d\n", width, height, dim, depth, type);

    waitKey(0);

    destroyAllWindows();

    return 0;

}

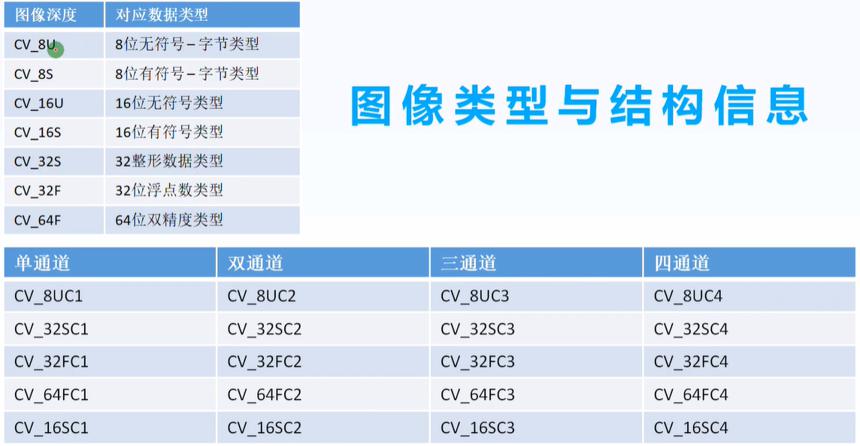

图像的类型与结构信息：

#ifndef OPENCV_CORE_HAL_INTERFACE_H

#define OPENCV_CORE_HAL_INTERFACE_H

//! @addtogroup core_hal_interface

//! @{

//! @name Return codes

//! @{

#define CV_HAL_ERROR_OK 0

#define CV_HAL_ERROR_NOT_IMPLEMENTED 1

#define CV_HAL_ERROR_UNKNOWN -1

//! @}

#ifdef __cplusplus

#include <cstddef>

#else

#include <stddef.h>

#include <stdbool.h>

#endif

//! @name Data types

//! primitive types

//! - schar  - signed 1 byte integer

//! - uchar  - unsigned 1 byte integer

//! - short  - signed 2 byte integer

//! - ushort - unsigned 2 byte integer

//! - int    - signed 4 byte integer

//! - uint   - unsigned 4 byte integer

//! - int64  - signed 8 byte integer

//! - uint64 - unsigned 8 byte integer

//! @{

#if !defined _MSC_VER && !defined __BORLANDC__

#  if defined __cplusplus && __cplusplus >= 201103L && !defined __APPLE__

#    include <cstdint>

#    ifdef __NEWLIB__

        typedef unsigned int uint;

#    else

        typedef std::uint32_t uint;

#    endif

#  else

#    include <stdint.h>

     typedef uint32_t uint;

#  endif

#else

   typedef unsigned uint;

#endif

typedef signed char schar;

#ifndef __IPL_H__

   typedef unsigned char uchar;

   typedef unsigned short ushort;

#endif

#if defined _MSC_VER || defined __BORLANDC__

   typedef __int64 int64;

   typedef unsigned __int64 uint64;

#  define CV_BIG_INT(n)   n##I64

#  define CV_BIG_UINT(n)  n##UI64

#else

   typedef int64_t int64;

   typedef uint64_t uint64;

#  define CV_BIG_INT(n)   n##LL

#  define CV_BIG_UINT(n)  n##ULL

#endif

#define CV_USRTYPE1 (void)"CV_USRTYPE1 support has been dropped in OpenCV 4.0"

#define CV_CN_MAX     512

#define CV_CN_SHIFT   3

#define CV_DEPTH_MAX  (1 << CV_CN_SHIFT)

#define CV_8U   0

#define CV_8S   1

#define CV_16U  2

#define CV_16S  3

#define CV_32S  4

#define CV_32F  5

#define CV_64F  6

#define CV_16F  7

#define CV_MAT_DEPTH_MASK       (CV_DEPTH_MAX - 1)

#define CV_MAT_DEPTH(flags)     ((flags) & CV_MAT_DEPTH_MASK)

#define CV_MAKETYPE(depth,cn) (CV_MAT_DEPTH(depth) + (((cn)-1) << CV_CN_SHIFT))

#define CV_MAKE_TYPE CV_MAKETYPE

#define CV_8UC1 CV_MAKETYPE(CV_8U,1)

#define CV_8UC2 CV_MAKETYPE(CV_8U,2)

#define CV_8UC3 CV_MAKETYPE(CV_8U,3)

#define CV_8UC4 CV_MAKETYPE(CV_8U,4)

#define CV_8UC(n) CV_MAKETYPE(CV_8U,(n))

#define CV_8SC1 CV_MAKETYPE(CV_8S,1)

#define CV_8SC2 CV_MAKETYPE(CV_8S,2)

#define CV_8SC3 CV_MAKETYPE(CV_8S,3)

#define CV_8SC4 CV_MAKETYPE(CV_8S,4)

#define CV_8SC(n) CV_MAKETYPE(CV_8S,(n))

#define CV_16UC1 CV_MAKETYPE(CV_16U,1)

#define CV_16UC2 CV_MAKETYPE(CV_16U,2)

#define CV_16UC3 CV_MAKETYPE(CV_16U,3)

#define CV_16UC4 CV_MAKETYPE(CV_16U,4)

#define CV_16UC(n) CV_MAKETYPE(CV_16U,(n))

#define CV_16SC1 CV_MAKETYPE(CV_16S,1)

#define CV_16SC2 CV_MAKETYPE(CV_16S,2)

#define CV_16SC3 CV_MAKETYPE(CV_16S,3)

#define CV_16SC4 CV_MAKETYPE(CV_16S,4)

#define CV_16SC(n) CV_MAKETYPE(CV_16S,(n))

#define CV_32SC1 CV_MAKETYPE(CV_32S,1)

#define CV_32SC2 CV_MAKETYPE(CV_32S,2)

#define CV_32SC3 CV_MAKETYPE(CV_32S,3)

#define CV_32SC4 CV_MAKETYPE(CV_32S,4)

#define CV_32SC(n) CV_MAKETYPE(CV_32S,(n))

#define CV_32FC1 CV_MAKETYPE(CV_32F,1)

#define CV_32FC2 CV_MAKETYPE(CV_32F,2)

#define CV_32FC3 CV_MAKETYPE(CV_32F,3)

#define CV_32FC4 CV_MAKETYPE(CV_32F,4)

#define CV_32FC(n) CV_MAKETYPE(CV_32F,(n))

#define CV_64FC1 CV_MAKETYPE(CV_64F,1)

#define CV_64FC2 CV_MAKETYPE(CV_64F,2)

#define CV_64FC3 CV_MAKETYPE(CV_64F,3)

#define CV_64FC4 CV_MAKETYPE(CV_64F,4)

#define CV_64FC(n) CV_MAKETYPE(CV_64F,(n))

#define CV_16FC1 CV_MAKETYPE(CV_16F,1)

#define CV_16FC2 CV_MAKETYPE(CV_16F,2)

#define CV_16FC3 CV_MAKETYPE(CV_16F,3)

#define CV_16FC4 CV_MAKETYPE(CV_16F,4)

#define CV_16FC(n) CV_MAKETYPE(CV_16F,(n))

//! @}

//! @name Comparison operation

//! @sa cv::CmpTypes

//! @{

#define CV_HAL_CMP_EQ 0

#define CV_HAL_CMP_GT 1

#define CV_HAL_CMP_GE 2

#define CV_HAL_CMP_LT 3

#define CV_HAL_CMP_LE 4

#define CV_HAL_CMP_NE 5

//! @}

//! @name Border processing modes

//! @sa cv::BorderTypes

//! @{

#define CV_HAL_BORDER_CONSTANT 0

#define CV_HAL_BORDER_REPLICATE 1

#define CV_HAL_BORDER_REFLECT 2

#define CV_HAL_BORDER_WRAP 3

#define CV_HAL_BORDER_REFLECT_101 4

#define CV_HAL_BORDER_TRANSPARENT 5

#define CV_HAL_BORDER_ISOLATED 16

//! @}

//! @name DFT flags

//! @{

#define CV_HAL_DFT_INVERSE        1

#define CV_HAL_DFT_SCALE          2

#define CV_HAL_DFT_ROWS           4

#define CV_HAL_DFT_COMPLEX_OUTPUT 16

#define CV_HAL_DFT_REAL_OUTPUT    32

#define CV_HAL_DFT_TWO_STAGE      64

#define CV_HAL_DFT_STAGE_COLS    128

#define CV_HAL_DFT_IS_CONTINUOUS 512

#define CV_HAL_DFT_IS_INPLACE 1024

//! @}

//! @name SVD flags

//! @{

#define CV_HAL_SVD_NO_UV    1

#define CV_HAL_SVD_SHORT_UV 2

#define CV_HAL_SVD_MODIFY_A 4

#define CV_HAL_SVD_FULL_UV  8

//! @}

//! @name Gemm flags

//! @{

#define CV_HAL_GEMM_1_T 1

#define CV_HAL_GEMM_2_T 2

#define CV_HAL_GEMM_3_T 4

//! @}

//! @}

#endif

创建 Mat 对象
  1. 通过读入一张图像，直接转换为Mat对象
  2. 使用无参数构造函数，创建Mat对象
  3. 使用行、列、类型带这个三个参数的构造函数创建Mat对象
  4. 使用行、列、类型、Scalar向量四个参数的构造函数创建Mat对象
  5. 使用大小、类型两个参数的构造函数创建Mat对象
  6. 使用大小、类型、Scalar向量三个参数的构造函数创建Mat对象
  7. 使用Mat::zeros函数实现，两个参数一个是Size表示图像宽与高另外一个表示类型
  8. 使用Mat::ones函数实现，两个参数一个是Size表示图像宽与高，另外一个表示类型
    // 创建mat对象

    Mat t1 = Mat(256, 256, CV_8UC3);

    // Scalar(...) 是一个标量，表示一个颜色值

    // 灰度图像是一个通道的，一个参数就可以

    t1 = Scalar(0, 0, 255);

    imshow("t1", t1);

    // 方法2

    Mat t2 = Mat(Size(512, 512), CV_8UC3);

    t2 = Scalar(255, 0, 255);

    imshow("t2", t2);

    // 创建时指定大小

    Mat t3 = Mat::zeros(Size(256, 256), CV_8UC3);

    imshow("t3", t3);

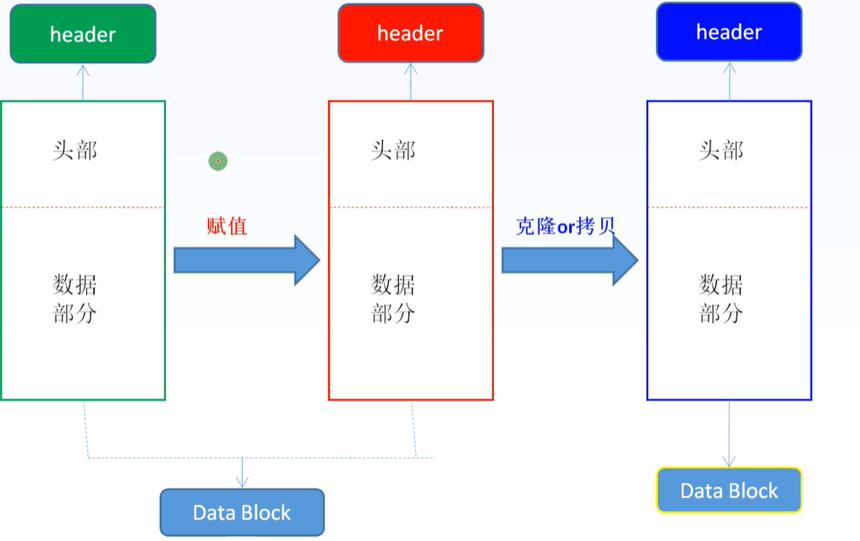

    // 从现有的图像create

    // 只是对象引用的赋值，本质上还是一张图像

    // 如果对原图像进行修改，t4也会被修改

    Mat t4 = src;

    // 克隆，是一个新的对象

    // 对原图进行修改，t5并不改变

    Mat t5 = src.clone();

    imshow("t5", t5);

    // 拷贝

    Mat t6;

    src.copyTo(t6);

    imshow("t6", t6);

    // 创建一个和现有图像大小、类型一样的空白图像

    Mat t7 = Mat::zeros(src.size(), src.type());

Mat 像素信息遍历
    /*

    for (int row = 0; row < height; row++) {

        for (int col = 0; col < width; col++) {

            if (dim == 3) {

                Vec3b pixel = src.at<Vec3b>(row, col);

                int blue = pixel[0];

                int green = pixel[1];

                int red = pixel[2];

                src.at<Vec3b>(row, col)[0] = 255 - blue;

                src.at<Vec3b>(row, col)[1] = 255 - green;

                src.at<Vec3b>(row, col)[2] = 255 - red;

            }

            if (dim == 1) {

                int pv = src.at<uchar>(row, col);

                src.at<uchar>(row, col) = (255 - pv);

            }

        }

    }

    imshow("fan", src);

    */

    // 指针方式遍历，并拷贝图像

    Mat result = Mat::zeros(src.size(), src.type());

    for (int row = 0; row < height; row++) {

        uchar* curr_row = src.ptr<uchar>(row);

        uchar* result_row = result.ptr<uchar>(row);

        for (int col = 0; col < width; col++) {

            if (dim == 3) {

                int blue = *curr_row++;

                int green = *curr_row++;

                int red = *curr_row++;

                *result_row++ = blue;

                *result_row++ = green;

                *result_row++ = red;

            }

            if (dim == 1) {

                int pv = *curr_row++;

                *result_row++ = pv;

            }

        }

    }

    imshow("src", src);

Mat对象起源

当OpenCV 1.0发布时候没有Mat对象，是个C语言风格的数据结构IPlImage来表示内存中图像对象，但是OpenCV开发者在做复杂图像处理算法分析与计算时候，创建了很多IplImage这样的数据结构，偶尔最后可能忘记释放内存了，这样算法就有了内存泄漏，导致开发者浪费很多精力去寻找这个错误，这个已经跟图像处理算法没有关系了，但是它却困扰了很多OpenCV开发者。Intel发现自己做的库居然这么渣，广大群众不满意，决定从OpenCV 2.0开始使用一个新的内存对象Mat来表示内存中的图像对象。它是C++风格的数据结构，自动实现内存分配与回收，这样OpenCV开发者就再也不用担心因为使用OpenCV的图像对象数据结构而导致内存泄漏问题了。但是仍然有些开发者直到现在还在顽固的使用IplImage这个对象，Intel为了照顾他们，所以允许IplImage对象继续存在，还提供可以把IplImage对象转换成Mat对象的构造函数，作为开源SDK可谓仁至义尽。
