该BLOG内容是之前在部门组织讨论运行时问题时自己写的PPT内容，内容以点带面，主要是方便以后自己回顾查看。

大纲包括：1、运行时问题分类 2、服务器自带工具 3、其他工具 4、例子 5、实际情况

运行时问题分类-软件角度：1、内存泄漏，对象未释放 2、线程阻塞、死锁 3、线程死循环 4、网络IO连接超时时间过长 5、磁盘不可写 .....

运行时问题分类-硬件角度：1、内存占用高 2、CPU占用高 3、网络无反应 4、硬盘空间满 ....

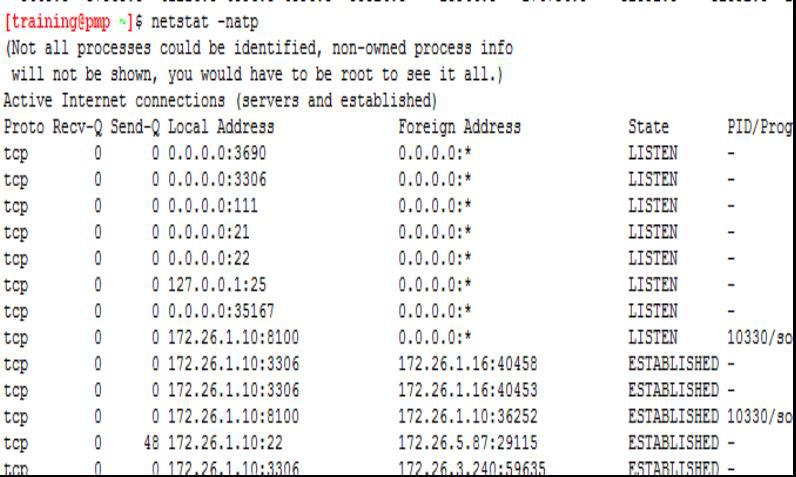

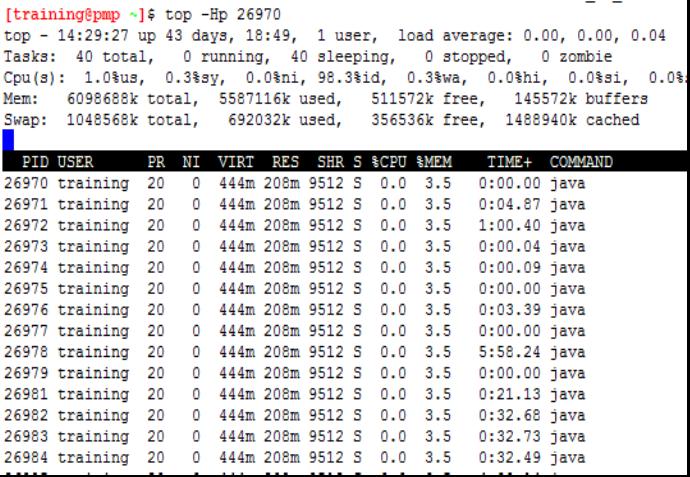

Linux指令：1、top, top -Hp pid 2、free 3、df 4、netstat, netstat -natp ...

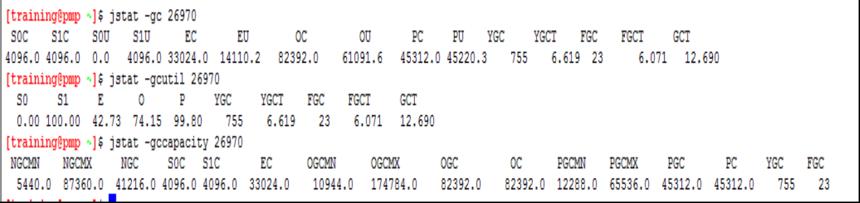

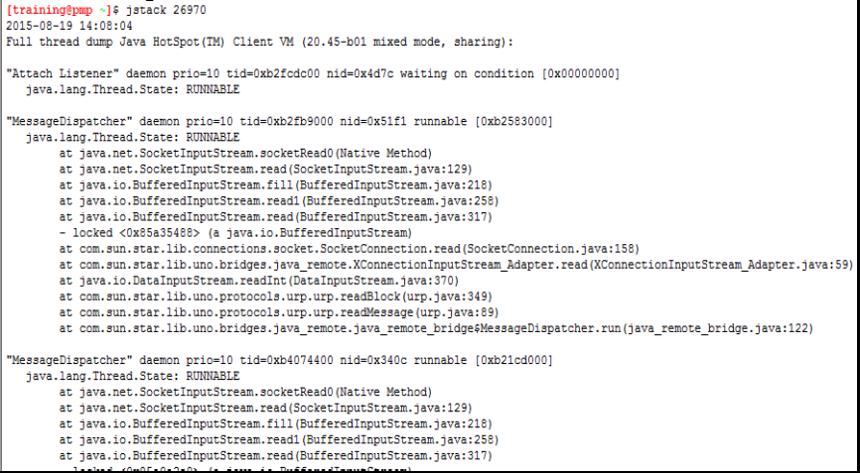

JDK指令：1、jps, jps -v 2、jstack, jstack pid 3、jmap, jmap -dump:format=b,file=/opt/... 4、jstat, jstat -gcutil(gc,gccapacity) pid ....

工具：

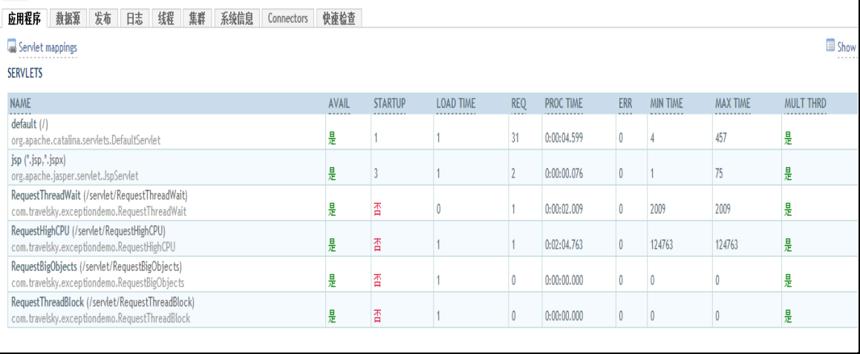

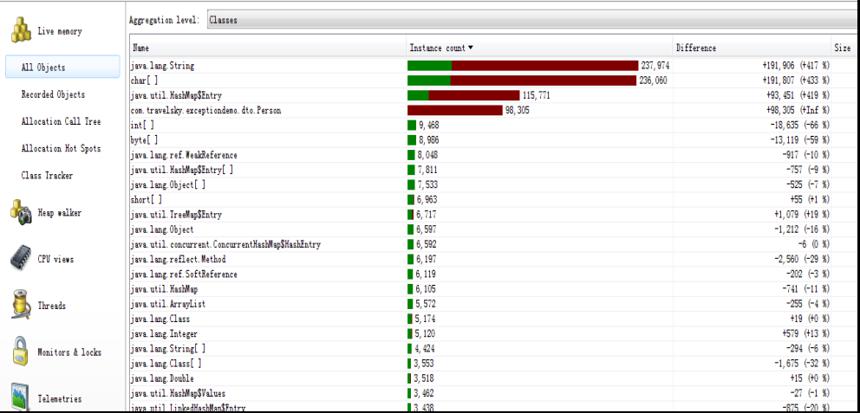

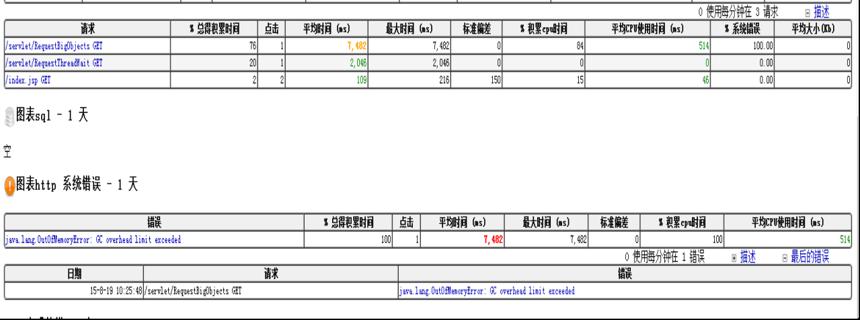

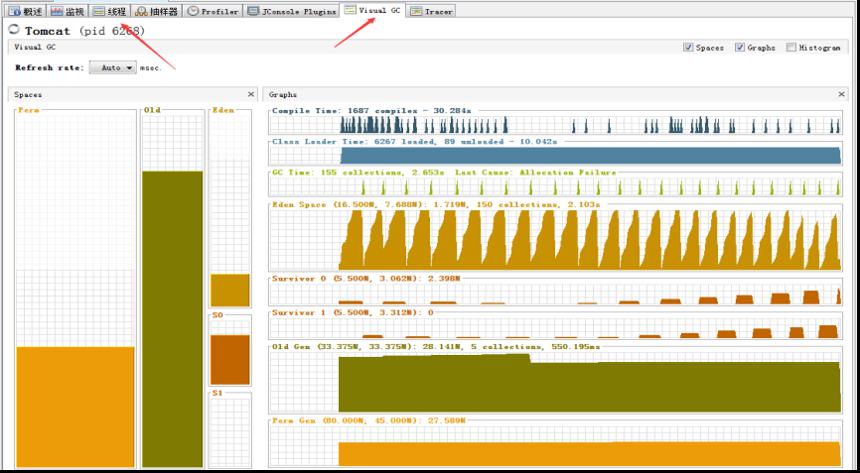

实时分析工具： 1、Jconsole 2、VisualVM 3、JProfiler 4、JavaMelody 5、LambdaProbe ....

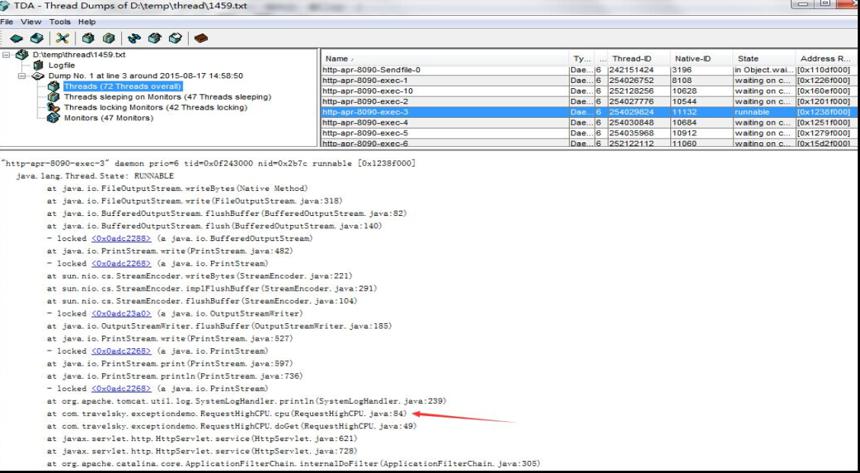

离线分析工具： 1、MemoryAnalyzer tool 2、Thread Dump Analyzer ....

DEMO：1、内存溢出 2、CPU占用过高 3、线程死锁 4、线程阻塞

准备工作：堆栈内存设置低一点，打印GC日志和OOM时输出dump文件： set JAVA_OPTS=-server -Xms24m -Xmx50m -XX:PermSize=28M -XX:MaxPermSize=80m -XX:+PrintGCDetails -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=d:\temp\dump

内存溢出：

Map<String, Person> map = new HashMap<String, Person>();
Object[] array = new Object[];
for (int i = ; i < ; i++) {
String d = new Date().toString();
Person p = new Person(d, i);
map.put(i + "person", p);
array[i] = p;
}

MAT-关键字(个人理解，不一定准确):

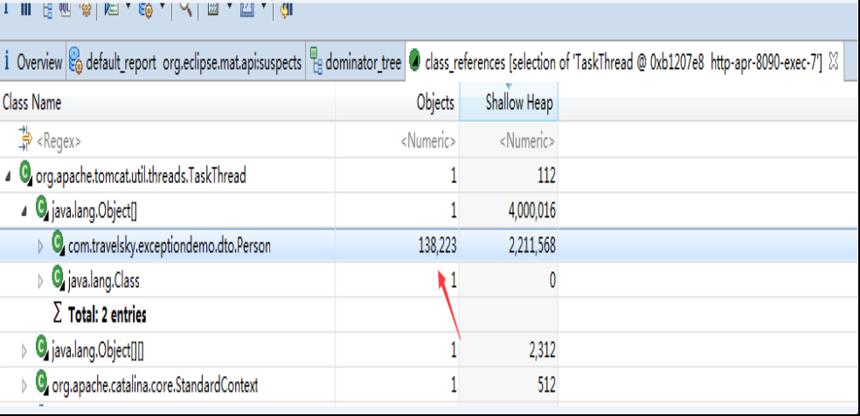

Histogram：内存中的类对象实例的对象的个数和大小

Dominator Tree：堆对象树，对象大小和占用百分比

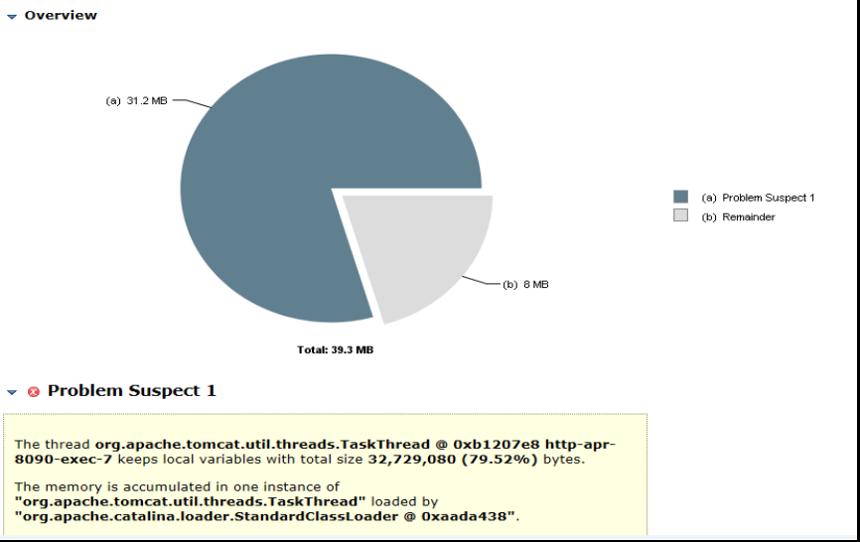

Leak Suspects：MAT分析的内存泄漏的可疑点

shallow heap：对象自身占用内存大小

retained heap：对象自身和引用的对象占用内存大小

Merge Shortest Paths to GC Roots：从GC根节点到该对象的路径视图

with outgoing references：对象持有的外部对象引用

with incomming references：对象被哪些外部对象引用

....

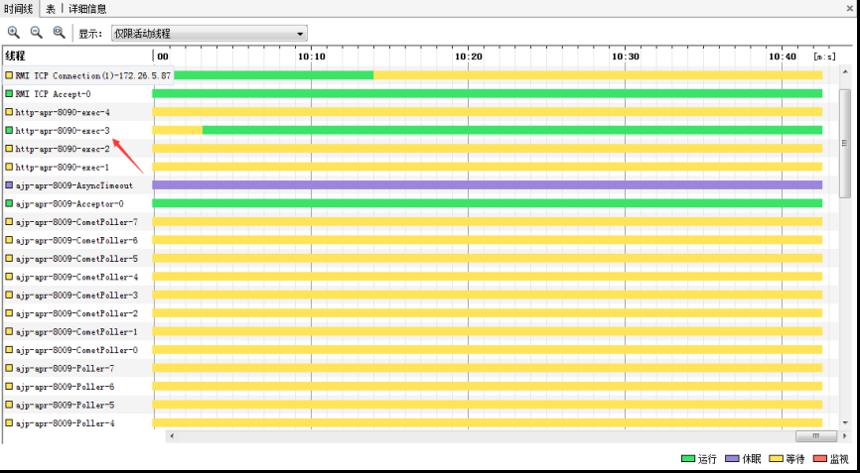

CPU占用过高：

int i = 0;
while (i < 1000000) {
i++;
System.out.println(i);
try {
Thread.sleep(0);
} catch (InterruptedException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}

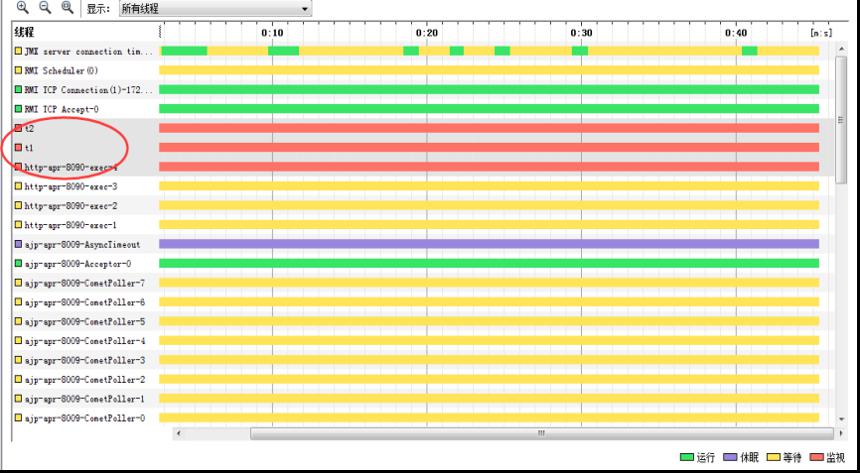

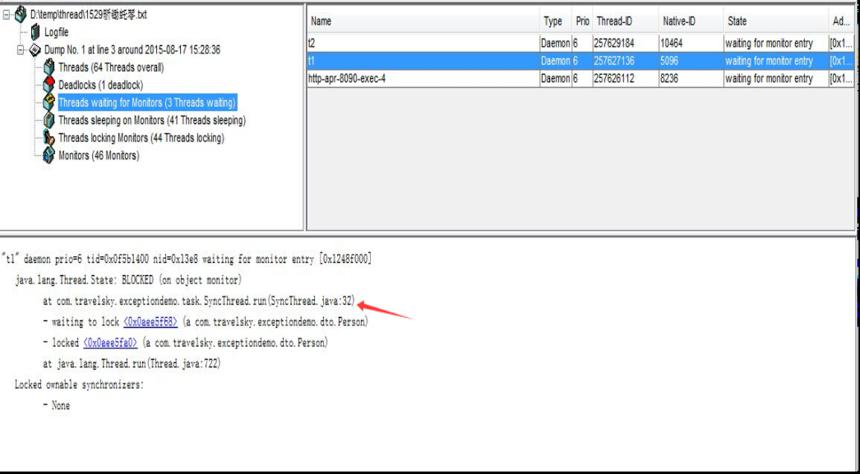

线程死锁:

Thread t1 = new Thread(new SyncThread(obj1, obj2), "t1");
Thread t2 = new Thread(new SyncThread(obj2, obj1), "t2");t1.start();
try {
Thread.sleep(3000);
} catch (InterruptedException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
t2.start();
synchronized (obj1) {
System.out.println("主线程 lock on " + obj1.getName());
}

private Person obj1;
private Person obj2;public SyncThread(Person o1, Person o2) {
this.obj1 = o1;
this.obj2 = o2;
}public void run() {
String name = Thread.currentThread().getName();
System.out.println(name + " acquiring lock on " + obj1.getName());
synchronized (obj1) {
System.out.println(name + " acquired lock on " + obj1.getName());
work();
System.out.println(name + " acquiring lock on " + obj2.getName());
synchronized (obj2) {
System.out.println(name + " acquired lock on " + obj2.getName());
work();
}
System.out.println(name + " released lock on " + obj2.getName());
}
System.out.println(name + " released lock on " + obj1.getName());
System.out.println(name + " finished execution.");
}private void work() {
try {
Thread.sleep(10000);
} catch (InterruptedException e) {
e.printStackTrace();
}
}

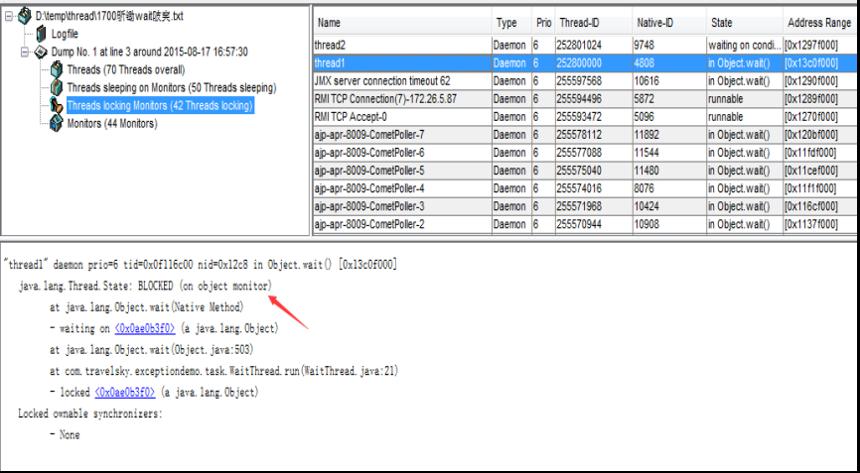

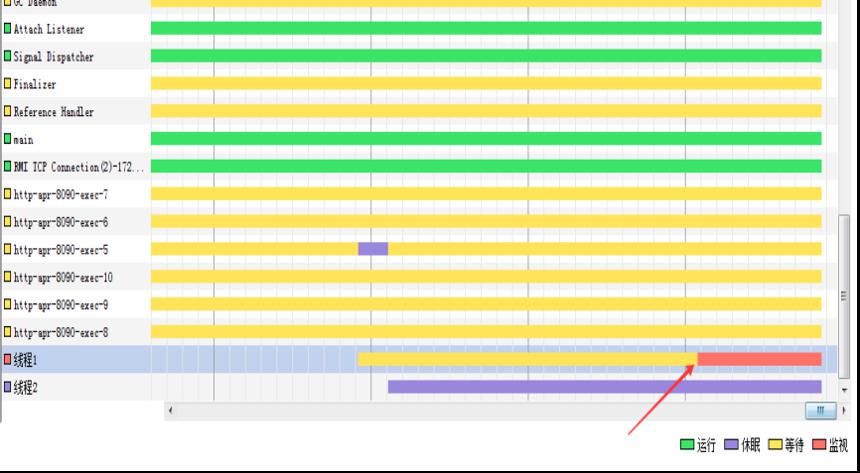

线程阻塞：

WaitThread thread1 = new WaitThread();
thread1.setName("线程1");
NotifyThread thread2 = new NotifyThread();
thread2.setName("线程2");thread1.start();try {
Thread.sleep(20000);
} catch (InterruptedException e) {
e.printStackTrace();
}thread2.start();

public class NotifyThread extends Thread {
@Override
public void run() {
synchronized (RequestThreadWait.object) {
System.out.println("线程" + Thread.currentThread().getName() + "占用了锁");
try {
Thread.sleep(20000);
} catch (InterruptedException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
RequestThreadWait.object.notify();
System.out.println("线程" + Thread.currentThread().getName() + "调用了object.notify()");
try {
Thread.sleep(20000);
} catch (InterruptedException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
System.out.println("线程" + Thread.currentThread().getName() + "释放了锁");
}
}
public class WaitThread extends Thread {public void run() {
synchronized (RequestThreadWait.object) {
System.out.println("线程" + Thread.currentThread().getName() + "获取到了锁开始");
try {
RequestThreadWait.object.wait();
} catch (InterruptedException e) {
}
System.out.println("线程" + Thread.currentThread().getName() + "获取到了锁结束！");
}
}
}
