spring cloud stream整合
提示：扫一扫查出行【扫一扫了解最新限行尾号】
复制提示
spring cloud stream整体架构核心概念图：

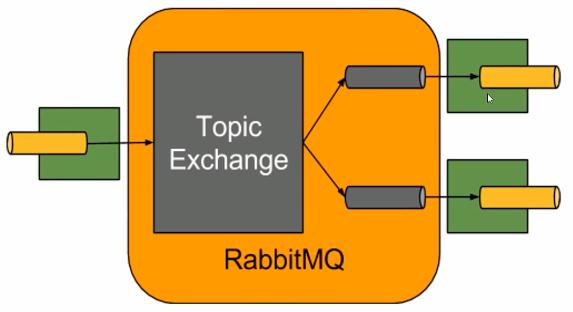

图一：消息的发送端和接收端可以是不同的中间件

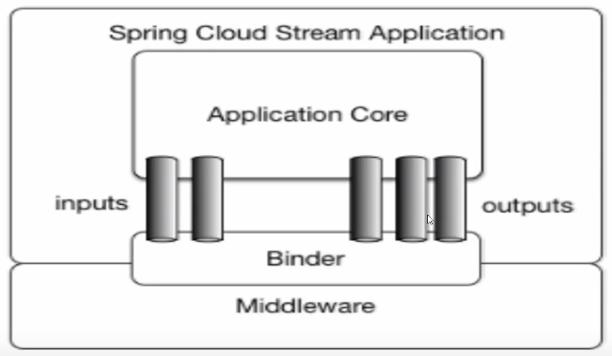

图二：

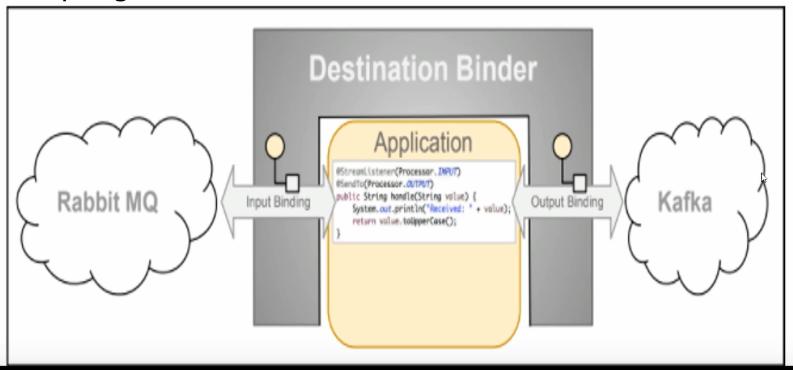

图三：在消息的发送之前和消息的接收端套了一层管道
- @Output:输出注释，用于定义发送消息接口
- @Input:输入注解，用于定义消息的消费者接口
- @StreamListener:用于定义监听方法的注解
springcloudstream框架有一个非常大的问题就是不能实现可靠性消息投递，会存在少量消息丢失的问题
这个原因是springcloudstream框架为了和kafka兼顾所以在实际工作中使用它的目的是针对高性能的消息通信的
这点就是当前版本的springcloudstream的定位
Barista接口是定义作为后面类的参数，这一接口来定义通道类型和通道名称（该名称可以自定义）
通道名称是作为配置用，通道类型则决定了app会使用这一通道进行发送消息还是从中接收消息
引入pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.dwz</groupId>
<artifactId>rabbitmq-springcloudstream-producer</artifactId>
<version>0.0.1-SNAPSHOT</version> <parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.6.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent> <properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.8</maven.compiler.source>
<maven.compiler.target>1.8</maven.compiler.target>
<java.version>1.8</java.version>
</properties> <dependencies>
<!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-web -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<version>2.1.6.RELEASE</version>
</dependency> <dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency> <dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency> <!-- https://mvnrepository.com/artifact/com.rabbitmq/amqp-client -->
<dependency>
<groupId>com.rabbitmq</groupId>
<artifactId>amqp-client</artifactId>
<version>5.7.3</version>
</dependency> <dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency> <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-core -->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-core</artifactId>
<version>2.10.0</version>
</dependency> <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.10.0</version>
</dependency> <!--spring boot热部署插件-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
<optional>true</optional>
</dependency> <!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-stream-rabbit -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-stream-rabbit</artifactId>
<version>2.1.4.RELEASE</version>
</dependency> <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-actuator -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
<version>2.1.6.RELEASE</version>
</dependency>
</dependencies> <build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
生产者代码
配置application.properties
server.port=8001
server.servlet.context-path=/producerspring.application.name=producer
spring.cloud.stream.bindings.output_channel.destination=exchange-4
spring.cloud.stream.bindings.output_channel.group=queue-4
spring.cloud.stream.bindings.output_channel.binder=rabbit_cluster#表明使用的环境是rabbit
spring.cloud.stream.binders.rabbit_cluster.type=rabbit
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.addresses=127.0.0.1:5672
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.username=root_dwz
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.password=123456
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.virtual-host=/vhost_dwz
Barista接口
package com.dwz.rabbitmq.stream;import org.springframework.cloud.stream.annotation.Output;
import org.springframework.messaging.MessageChannel;
public interface Barista { String OUTPUT_CHANNEL = "output_channel"; //注解@Output表明了它是一个输出类型的通道类，名字output_channel。这一名字与app1中通道名一致，表明注入了
//一个名字为output_channel的通道
@Output(Barista.OUTPUT_CHANNEL)
MessageChannel logoutput();
}
发送消息的方法
package com.dwz.rabbitmq.stream;import java.util.Map;import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.stream.annotation.EnableBinding;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageHeaders;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.stereotype.Service;@EnableBinding(Barista.class)
@Service
public class RabbitmqSender {
@Autowired
private Barista barista; //发送消息
public String sendMessage(Object message, Map<String, Object> properties) throws Exception {
try {
MessageHeaders mhs = new MessageHeaders(properties);
Message msg = MessageBuilder.createMessage(message, mhs);
boolean sendStatus = barista.logoutput().send(msg);
System.err.println("-------------------sending---------------------");
System.err.println("发送数据：" + message + ",sendStatus:" + sendStatus);
return null;
} catch (Exception e) {
System.err.println("---------------------error--------------------------");
e.printStackTrace();
throw new RuntimeException(e.getMessage());
}
}
}
测试代码
package com.dwz.rabbitmq;import java.util.Date;
import java.util.HashMap;
import java.util.Map;import org.apache.http.client.utils.DateUtils;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;import com.dwz.rabbitmq.stream.RabbitmqSender;
@RunWith(SpringRunner.class)
@SpringBootTest
public class Testdd { @Autowired
private RabbitmqSender rabbitmqSender; @Test
public void sendMessageTest1() {
for(int i = 0; i < 5; i++) {
try {
Map<String, Object> properties = new HashMap<>();
properties.put("SERIAL_NUMBER", "12345");
properties.put("BANK_NUMBER", "abc");
properties.put("PLAT_SEND_TIME", DateUtils.formatDate(new Date(), "yyyy-MM-dd HH:mm:ss:SSS"));
rabbitmqSender.sendMessage("Hello, I am amqp sender num:" + i, properties);
} catch (Exception e) {
System.err.println("------------------error-------------------");
e.printStackTrace();
}
}
}
}
消费端代码
配置application.properties
server.port=8002
server.servlet.context-path=/consumerspring.application.name=consumer
spring.cloud.stream.bindings.input_channel.destination=exchange-4
spring.cloud.stream.bindings.input_channel.group=queue-4
spring.cloud.stream.bindings.input_channel.binder=rabbit_cluster
spring.cloud.stream.bindings.input_channel.consumer.concurrency=1
spring.cloud.stream.rabbit.bindings.input_channel.consumer.requeue-rejected=false
spring.cloud.stream.rabbit.bindings.input_channel.consumer.acknowledge-mode=manual
#设置断开重连
spring.cloud.stream.rabbit.bindings.input_channel.consumer.recovery-interval=3000
#启用持久化订阅
spring.cloud.stream.rabbit.bindings.input_channel.consumer.durable-subscription=true
#设置最大监听数
spring.cloud.stream.rabbit.bindings.input_channel.consumer.max-concurrency=5spring.cloud.stream.binders.rabbit_cluster.type=rabbit
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.addresses=127.0.0.1:5672
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.username=root_dwz
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.password=123456
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.virtual-host=/vhost_dwz
Barista接口
package com.dwz.rabbitmq.stream;import org.springframework.cloud.stream.annotation.Input;
import org.springframework.messaging.SubscribableChannel;public interface Barista { String INPUT_CHANNEL = "input_channel"; //注解@Input声明了它是一个输入类型的通道，名字是input_channel
@Input(Barista.INPUT_CHANNEL)
SubscribableChannel loginput();
}
接收消息的方法
package com.dwz.rabbitmq.stream;import org.springframework.amqp.support.AmqpHeaders;
import org.springframework.cloud.stream.annotation.EnableBinding;
import org.springframework.cloud.stream.annotation.StreamListener;
import org.springframework.messaging.Message;
import org.springframework.stereotype.Component;import com.rabbitmq.client.Channel;@EnableBinding(Barista.class)
@Component
public class RabbitmqReceiver { @StreamListener(Barista.INPUT_CHANNEL)
public void receiver(Message message) throws Exception {
Channel channel = (Channel)message.getHeaders().get(AmqpHeaders.CHANNEL);
Long deliveryTag = (Long)message.getHeaders().get(AmqpHeaders.DELIVERY_TAG);
System.err.println("Input Stream 1 接受数据：" + message);
System.err.println("消费完毕---------------");
channel.basicAck(deliveryTag, false);
}
}
