(实例2) TFT2.0液晶屏幕测试 mega2560

IP云
IP云V管理员/4 阅读
12/02
提示：扫一扫查出行
【扫一扫了解最新限行尾号】
复制提示

关键修改

针对mega2560板子

#define TFT_RST A4

#define TFT_RS  A3

#define TFT_CS  A5  // SS

#define TFT_SDI A2  // MOSI

#define TFT_CLK A1  // SCK

#define TFT_LED A0   // 0 if wired to +5V directly

#define TFT_BRIGHTNESS 200 // Initial brightness of TFT backlight (optional)

// Use hardware SPI (faster - on Uno: 13-SCK, 12-MISO, 11-MOSI)

//TFT_22_ILI9225 tft = TFT_22_ILI9225(TFT_RST, TFT_RS, TFT_CS, TFT_LED, TFT_BRIGHTNESS);

// Use software SPI (slower)

TFT_22_ILI9225 tft = TFT_22_ILI9225(TFT_RST, TFT_RS, TFT_CS, TFT_SDI, TFT_CLK, TFT_LED,TFT_BRIGHTNESS);

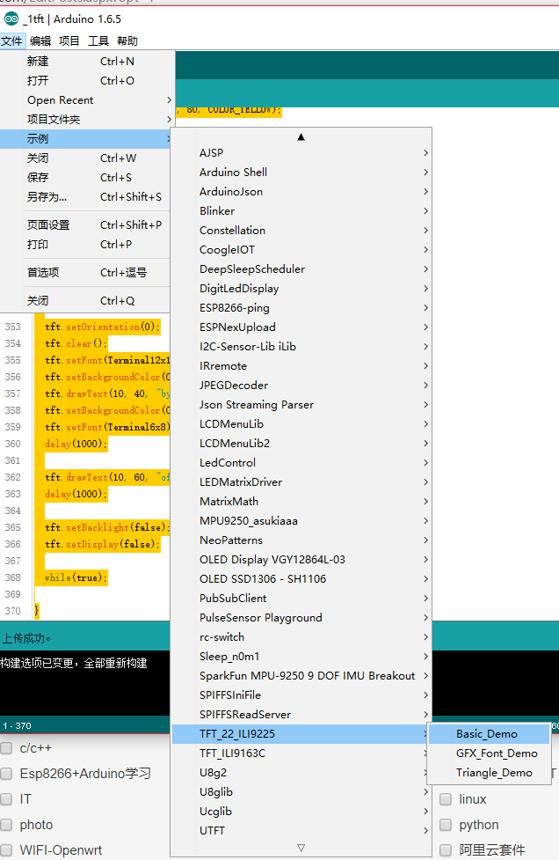

完整代码

w// Include application, user and local libraries

#include "SPI.h"

#include "TFT_22_ILI9225.h"

//176*220

//#ifdef ARDUINO_ARCH_STM32F1

//#define TFT_RST PA1

//#define TFT_RS  PA2

//#define TFT_CS  PA0 // SS

//#define TFT_SDI PA7 // MOSI

//#define TFT_CLK PA5 // SCK

//#define TFT_LED 0 // 0 if wired to +5V directly

//#else

//#define TFT_RST 8

//#define TFT_RS  9

//#define TFT_CS  10  // SS

//#define TFT_SDI 11  // MOSI

//#define TFT_CLK 13  // SCK

//#define TFT_LED 3   // 0 if wired to +5V directly

//#endif

#define TFT_RST A4

#define TFT_RS  A3

#define TFT_CS  A5  // SS

#define TFT_SDI A2  // MOSI

#define TFT_CLK A1  // SCK

#define TFT_LED A0   // 0 if wired to +5V directly

#define TFT_BRIGHTNESS 200 // Initial brightness of TFT backlight (optional)

// Use hardware SPI (faster - on Uno: 13-SCK, 12-MISO, 11-MOSI)

//TFT_22_ILI9225 tft = TFT_22_ILI9225(TFT_RST, TFT_RS, TFT_CS, TFT_LED, TFT_BRIGHTNESS);

// Use software SPI (slower)

//TFT_22_ILI9225 tft = TFT_22_ILI9225(TFT_RST, TFT_RS, TFT_CS, TFT_SDI, TFT_CLK, TFT_LED, TFT_BRIGHTNESS);

TFT_22_ILI9225 tft = TFT_22_ILI9225(TFT_RST, TFT_RS, TFT_CS, TFT_SDI, TFT_CLK, TFT_LED,TFT_BRIGHTNESS);

// Variables and constants

uint16_t x, y;

boolean flag = false;

/*

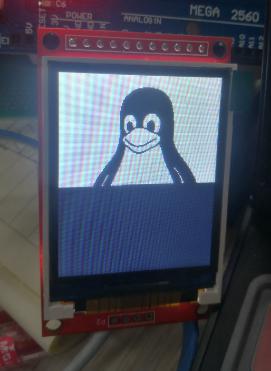

 * Tux black/white image in 180x220 converted using Ardafruit bitmap converter

 * https://github.com/ehubin/Adafruit-GFX-Library/tree/master/Img2Code

 */

static const uint8_t PROGMEM tux[] =

{

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x0,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x0,0x0,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0x0,0x0,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x0,0x0,0x0,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x0,0x0,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x0,0x0,0x0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x0,0x0,0x0,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x0,0x0,0x0,0x0,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x0,0x0,0x0,0x0,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x0,0x0,0x0,0x0,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0x0,0x0,0x0,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0x0,0x0,0x0,0x0,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0x0,0x0,0x0,0x0,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x0,0x0,0x0,0x0,0x0,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x0,0x0,0x0,0x0,0x0,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x0,0x0,0x0,0x0,0x0,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x0,0x0,0x1,0xfc,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x0,0x0,0x7,0xfe,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x1,0xf8,0x0,0xf,0xff,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x3,0xfc,0x0,0x1f,0xff,0x80,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x7,0xfe,0x0,0x1f,0xff,0xc0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x7,0xfe,0x0,0x3f,0xff,0xc0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xf,0xff,0x0,0x3f,0xff,0xe0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xf,0xff,0x0,0x7f,0xf,0xe0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xf,0xbf,0x80,0x7e,0x7,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xf,0xf,0x80,0x7c,0x7,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xe,0x7,0x80,0x78,0x3,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xe,0x7,0x80,0x78,0x3,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xe,0x7,0x80,0x78,0x3,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xe,0x3,0x80,0x78,0x3,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xe,0x3,0x0,0x38,0x3,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xe,0x0,0x0,0x0,0x3,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xe,0x0,0xff,0xc0,0x3,0xe0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x6,0x1,0xff,0xf8,0x3,0xe0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x7,0x7,0xff,0xfc,0x7,0xe0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x3,0x8f,0xff,0xff,0x7,0xc0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x3,0x1f,0xff,0xff,0xc0,0x80,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x3f,0xff,0xff,0xf8,0x0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0xff,0xff,0xff,0xff,0x0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x1,0xff,0xff,0xff,0xff,0xc0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x3,0xff,0xff,0xff,0xff,0xe0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf,0xff,0xff,0xff,0xff,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xf,0xff,0xff,0xff,0xfe,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x19,0xff,0xff,0xff,0xf8,0x70,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x18,0xff,0xff,0xff,0xe0,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x1c,0x7f,0xff,0xff,0x87,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0xe,0x3f,0xff,0xff,0xf,0xe0,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x7,0x1f,0xff,0xfc,0x3f,0xc0,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x7,0x87,0xff,0xf0,0xff,0x80,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x3,0xe1,0xff,0xc3,0xff,0x10,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0xf0,0x38,0xf,0xfe,0x38,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x7e,0x0,0x3f,0xf8,0x78,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x2,0x1f,0xe7,0xff,0xc1,0xf8,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x3,0x8f,0xff,0xff,0x7,0xfc,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x3,0xc7,0xff,0xfe,0x3f,0xfc,0x0,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x3,0xe3,0xff,0xf8,0x7f,0xfc,0x0,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x7,0xf0,0xff,0xe1,0xff,0xfe,0x0,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x7,0xfc,0x3f,0x7,0xff,0xfe,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x7,0xfe,0x0,0x1f,0xff,0xfe,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x7,0xff,0xc0,0xff,0xff,0xff,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x7,0xff,0xff,0xff,0xff,0xff,0x0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0xf,0xff,0xff,0xff,0xff,0xff,0x0,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0xf,0xff,0xff,0xff,0xff,0xff,0x80,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0x80,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0x80,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0x0,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0x0,0x7f,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0x0,0x7f,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xe0,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xe0,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xf0,0x0,0x0,0xf,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xf0,0x0,0x0,0x7,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x0,0x7,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x0,0x3,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x0,0x1,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x0,0x0,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x2,0x0,0x0,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x1,0x0,0x0,0x7f,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x80,0x0,0x3f,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xf0,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x40,0x0,0x3f,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xf0,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x20,0x0,0x1f,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xe0,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x0,0x0,0xf,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x10,0x0,0xf,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xc0,0x10,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x8,0x0,0x7,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0x80,0x20,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x0,0x0,0x7,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0x0,0x20,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x4,0x0,0x3,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0x0,0x40,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x2,0x0,0x1,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xfe,0x0,0x40,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x2,0x0,0x1,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xfe,0x0,0x80,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x1,0x0,0x0,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xfc,0x0,0x80,0x7f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x1,0x0,0x0,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xfc,0x1,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x1,0x80,0x0,0x7f,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xf8,0x1,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x80,0x0,0x7f,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xf8,0x2,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0xc0,0x0,0x7f,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xf0,0x2,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0xc0,0x0,0x3f,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xf0,0x6,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x40,0x0,0x3f,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xe0,0x4,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x0,0x60,0x0,0x1f,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xe0,0x4,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x60,0x0,0x1f,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xc0,0xc,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x60,0x0,0x1f,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xc0,0xc,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x60,0x0,0xf,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xc0,0x8,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x30,0x0,0xf,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0x80,0x8,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x30,0x0,0xf,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0x80,0x18,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x30,0x0,0x7,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0x80,0x18,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x30,0x0,0x7,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0x0,0x18,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x30,0x0,0x7,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0x0,0x18,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x30,0x0,0x7,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0x0,0x18,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x70,0x0,0x7,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfe,0x0,0x18,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x70,0x0,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfe,0x0,0x18,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x70,0x0,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfe,0x0,0x18,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x70,0x0,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfe,0x0,0x18,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0xf0,0x0,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x18,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x0,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x1c,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x0,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x1c,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x1c,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x3e,0x0,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x1e,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x7,0x80,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0xe,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x1e,0x1,0xe0,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0xf,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x3f,0xc0,0x70,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x7,0x7f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x7f,0xf0,0x38,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x7f,0xf8,0xc,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0xff,0xfe,0x6,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0xff,0xff,0x2,0x7,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0xff,0xff,0x3,0x7,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x0,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc0,0x7f,0xff,0x3,0x7,0xff,0xff,0xf0,

0xff,0xff,0xff,0xfc,0x1e,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x84,0x7f,0xff,0x3,0x7,0xff,0xff,0xf0,

0xff,0xff,0xff,0xf8,0x7f,0x80,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xc,0x7f,0xfe,0x2,0xf,0xff,0xff,0xf0,

0xff,0xff,0xff,0xf0,0xff,0xe0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x1e,0x7f,0xfe,0x0,0xf,0xff,0xff,0xf0,

0xff,0xff,0xff,0xe1,0xff,0xf0,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x1e,0x3f,0xfc,0x0,0x3,0xff,0xff,0xf0,

0xff,0xff,0xff,0xc3,0xff,0xf8,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x3e,0x1f,0xf0,0x0,0x1,0xff,0xff,0xf0,

0xff,0xff,0xff,0xc7,0xff,0xfc,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x3e,0xf,0xe0,0xf,0xe0,0xff,0xff,0xf0,

0xff,0xff,0xff,0x87,0xff,0xfe,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x7f,0x2,0x0,0x1f,0xf8,0x7f,0xff,0xf0,

0xff,0xff,0xff,0xf,0xff,0xfe,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x7f,0x80,0x0,0x3f,0xfc,0x7f,0xff,0xf0,

0xff,0xff,0xfe,0x1f,0xff,0xff,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x7f,0x80,0x0,0xff,0xfc,0x3f,0xff,0xf0,

0xff,0xff,0xf8,0x3f,0xff,0xff,0x80,0x3,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x7f,0xc0,0x3,0xff,0xfe,0x3f,0xff,0xf0,

0xff,0xff,0xc0,0x7f,0xff,0xff,0x80,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0xff,0xf0,0xf,0xff,0xfe,0x3f,0xff,0xf0,

0xff,0xff,0x0,0xff,0xff,0xff,0xc0,0x0,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0xff,0xff,0xff,0xff,0xff,0x1f,0xff,0xf0,

0xff,0xfc,0x3,0xff,0xff,0xff,0xc0,0x0,0x7f,0xff,0xff,0xff,0xff,0xff,0xf8,0xff,0xff,0xff,0xff,0xff,0x1f,0xff,0xf0,

0xff,0xf0,0x1f,0xff,0xff,0xff,0xe0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xf8,0xff,0xff,0xff,0xff,0xff,0x1f,0xff,0xf0,

0xff,0xe0,0xff,0xff,0xff,0xff,0xe0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xf8,0xff,0xff,0xff,0xff,0xff,0xf,0xff,0xf0,

0xff,0xe1,0xff,0xff,0xff,0xff,0xf0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xf8,0xff,0xff,0xff,0xff,0xff,0x8f,0xff,0xf0,

0xff,0xc3,0xff,0xff,0xff,0xff,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xff,0xf8,0xff,0xff,0xff,0xff,0xff,0x8f,0xff,0xf0,

0xff,0xc7,0xff,0xff,0xff,0xff,0xf8,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xf0,0xff,0xff,0xff,0xff,0xff,0x8f,0xff,0xf0,

0xff,0x87,0xff,0xff,0xff,0xff,0xf8,0x0,0x7,0xff,0xff,0xff,0xff,0xff,0xf1,0xff,0xff,0xff,0xff,0xff,0x87,0xff,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xfc,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xf1,0xff,0xff,0xff,0xff,0xff,0xc7,0xff,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xfc,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xf1,0xff,0xff,0xff,0xff,0xff,0xc3,0xff,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xfe,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xf1,0xff,0xff,0xff,0xff,0xff,0xe1,0xff,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xfe,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xf1,0xff,0xff,0xff,0xff,0xff,0xe1,0xff,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xff,0x0,0x1,0xff,0xff,0xff,0xff,0xff,0xf1,0xff,0xff,0xff,0xff,0xff,0xf0,0xff,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xff,0x80,0x1,0xff,0xff,0xff,0xff,0xff,0xf1,0xff,0xff,0xff,0xff,0xff,0xf8,0x7f,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xff,0xc0,0x1,0xff,0xff,0xff,0xff,0xff,0xf1,0xff,0xff,0xff,0xff,0xff,0xfc,0x3f,0xf0,

0xff,0x87,0xff,0xff,0xff,0xff,0xff,0xc0,0x3,0xff,0xff,0xff,0xff,0xff,0xe1,0xff,0xff,0xff,0xff,0xff,0xfe,0x3f,0xf0,

0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xe0,0x7,0xff,0xff,0xff,0xff,0xff,0xe1,0xff,0xff,0xff,0xff,0xff,0xfe,0x1f,0xf0,

0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xf0,0xf,0xff,0xff,0xff,0xff,0xff,0xe3,0xff,0xff,0xff,0xff,0xff,0xff,0x1f,0xf0,

0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xf8,0x7f,0xff,0xff,0xff,0xff,0xff,0xe3,0xff,0xff,0xff,0xff,0xff,0xff,0xf,0xf0,

0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xf8,0x7f,0xff,0xff,0xff,0xff,0xff,0xc3,0xff,0xff,0xff,0xff,0xff,0xff,0x8f,0xf0,

0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xfc,0x3f,0xff,0xff,0xff,0xff,0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xff,0x8f,0xf0,

0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xfe,0x1f,0xff,0xff,0xff,0xff,0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xff,0x8f,0xf0,

0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xff,0xf,0xff,0xff,0xff,0xff,0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xff,0xf,0xf0,

0xff,0xc7,0xff,0xff,0xff,0xff,0xff,0xff,0x8f,0xff,0xff,0xff,0xff,0xff,0x7,0xff,0xff,0xff,0xff,0xff,0xff,0x1f,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xff,0xff,0x87,0xff,0xff,0xff,0xff,0xfe,0xf,0xff,0xff,0xff,0xff,0xff,0xfe,0x1f,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xff,0xff,0xc3,0xff,0xff,0xff,0xff,0xf8,0xf,0xff,0xff,0xff,0xff,0xff,0xf8,0x3f,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xff,0xff,0xe1,0xff,0xff,0xff,0xff,0xe0,0xf,0xff,0xff,0xff,0xff,0xff,0xf0,0x7f,0xf0,

0xff,0xf,0xff,0xff,0xff,0xff,0xff,0xff,0xe0,0x7f,0xff,0xff,0xff,0x80,0x1f,0xff,0xff,0xff,0xff,0xff,0xc0,0xff,0xf0,

0xff,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x1f,0xff,0xff,0xfe,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0x3,0xff,0xf0,

0xff,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x3,0xff,0xff,0xf0,0x0,0x1f,0xff,0xff,0xff,0xff,0xfc,0x7,0xff,0xf0,

0xff,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x3f,0xfe,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xf0,0x1f,0xff,0xf0,

0xff,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xc0,0x7f,0xff,0xf0,

0xff,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0x1,0xff,0xff,0xf0,

0xff,0x1f,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xfc,0x7,0xff,0xff,0xf0,

0xff,0x8f,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xf8,0x1f,0xff,0xff,0xf0,

0xff,0x87,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xf0,0x7f,0xff,0xff,0xf0,

0xff,0xc1,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xe0,0xff,0xff,0xff,0xf0,

0xff,0xe0,0xf,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0xc3,0xff,0xff,0xff,0xf0,

0xff,0xf0,0x0,0xf,0xff,0xff,0xff,0xff,0xf8,0x0,0x0,0x0,0x0,0x0,0x3f,0xff,0xff,0xff,0x87,0xff,0xff,0xff,0xf0,

0xff,0xfc,0x0,0x0,0x7f,0xff,0xff,0xff,0xf8,0x0,0x1f,0xff,0xf0,0x0,0x3f,0xff,0xff,0xff,0xf,0xff,0xff,0xff,0xf0,

0xff,0xff,0xe0,0x0,0x7,0xff,0xff,0xff,0xf8,0x7,0xff,0xff,0xff,0xfe,0x1f,0xff,0xff,0xfe,0x1f,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xc0,0x0,0xff,0xff,0xff,0xf1,0xff,0xff,0xff,0xff,0xff,0x1f,0xff,0xff,0xfc,0x3f,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0x0,0x3f,0xff,0xff,0xe1,0xff,0xff,0xff,0xff,0xff,0xf,0xff,0xff,0xf8,0x7f,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xf0,0xf,0xff,0xff,0xc3,0xff,0xff,0xff,0xff,0xff,0x8f,0xff,0xff,0xf0,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xfe,0x3,0xff,0xff,0x87,0xff,0xff,0xff,0xff,0xff,0x87,0xff,0xff,0xc1,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0x80,0x3f,0xfe,0xf,0xff,0xff,0xff,0xff,0xff,0xc3,0xff,0xff,0x83,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xe0,0x0,0x0,0x1f,0xff,0xff,0xff,0xff,0xff,0xe1,0xff,0xfe,0x7,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xf8,0x0,0x0,0x3f,0xff,0xff,0xff,0xff,0xff,0xf0,0x7f,0xf8,0x1f,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0x80,0x1,0xff,0xff,0xff,0xff,0xff,0xff,0xf8,0xf,0x80,0x3f,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xfe,0x3f,0xff,0xff,0xff,0xff,0xff,0xff,0xfc,0x0,0x0,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0x0,0x3,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,0x3f,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0,

0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xf0

};

// Setup

void setup() {

  tft.begin();

  Serial.begin(9600);

}

// Loop

void loop() {

  tft.drawRectangle(0, 0, tft.maxX() - 1, tft.maxY() - 1, COLOR_WHITE);

  tft.setFont(Terminal6x8);

  tft.drawText(10, 10, "hello!");

  delay(1000);

  tft.clear();

  tft.drawText(10, 20, "clear");

  delay(1000);

  tft.drawText(10, 30, "text small");

  tft.setBackgroundColor(COLOR_YELLOW);

  tft.setFont(Terminal12x16);

  tft.drawText(90, 30, "BIG", COLOR_RED);

  tft.setBackgroundColor(COLOR_BLACK);

  tft.setFont(Terminal6x8);

  delay(1000);

  tft.drawText(10, 40, "setBacklight off");

  delay(500);

  tft.setBacklight(LOW);

  delay(500);

  tft.setBacklight(HIGH);

  tft.drawText(10, 50, "setBacklight on");

  delay(1000);

  tft.drawRectangle(10, 10, 110, 110, COLOR_BLUE);

  tft.drawText(10, 60, "rectangle");

  delay(1000);

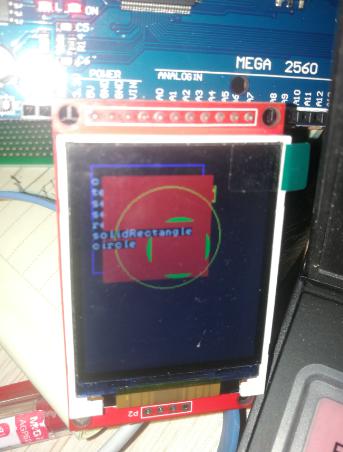

  tft.fillRectangle(20, 20, 120, 120, COLOR_RED);

  tft.drawText(10, 70, "solidRectangle");

  delay(1000);

  tft.drawCircle(80, 80, 50, COLOR_YELLOW);

  tft.drawText(10, 80, "circle");

  delay(1000);

  tft.fillCircle(90, 90, 30, COLOR_GREEN);

  tft.drawText(10, 90, "solidCircle");

  delay(1000);

  tft.drawLine(0, 0, tft.maxX() - 1, tft.maxY() - 1, COLOR_CYAN);

  tft.drawText(10, 100, "line");

  delay(1000);

  for (uint8_t i = 0; i < 127; i++)

    tft.drawPixel(random(tft.maxX()), random(tft.maxY()), random(0xffff));

  tft.drawText(10, 110, "point");

  delay(1000);

  for (uint8_t i = 0; i < 4; i++) {

    tft.clear();

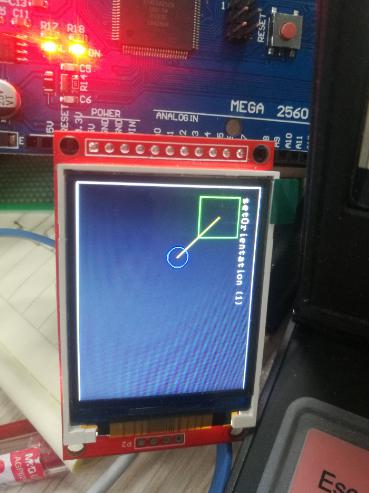

    tft.setOrientation(i);

    tft.drawRectangle(0, 0, tft.maxX() - 1, tft.maxY() - 1, COLOR_WHITE);

    tft.drawText(10, 10, "setOrientation (" + String("0123").substring(i, i + 1) + ")");

    tft.drawRectangle(10, 20, 50, 60, COLOR_GREEN);

    tft.drawCircle(70, 80, 10, COLOR_BLUE);

    tft.drawLine(30, 40, 70, 80, COLOR_YELLOW);

    delay(1000);

  }

  tft.setOrientation(0);

  tft.clear();

  tft.drawText(10, 100, "drawing bitmap");

  delay(1000);

  tft.clear();

  tft.setBackgroundColor(COLOR_BLACK);

  tft.drawBitmap(0, 0, tux, 180, 220, COLOR_WHITE);

  delay(5000);

  tft.setOrientation(0);

  tft.clear();

  tft.setFont(Terminal12x16);

  tft.setBackgroundColor(COLOR_YELLOW);

  tft.drawText(10, 40, "bye!", COLOR_RED);

  tft.setBackgroundColor(COLOR_BLACK);

  tft.setFont(Terminal6x8);

  delay(1000);

  tft.drawText(10, 60, "off");

  delay(1000);

  tft.setBacklight(false);

  tft.setDisplay(false);

  while(true);

}

相关阅读

目录[+]
