java nio 写一个完整的http服务器支持文件上传 chunk传输 gzip 压缩

也仿照着 netty处理了NIO的空轮询BUG

本项目并不复杂代码不多我没有采用过多的设计模式和套娃使其看着比较简单易懂

起因：

想自己写一个web服务器不使用tomcat 有时候想轻量级一点代码量很少

成果：

现在已经支持文件上传下载，分块传输协议 gzip压缩使用过程和java Servlet差不多我封装两个对象一个HttpRequest 一个Response 可以仿照这servlet来对http做出响应与接收后续有空可能会对原生的Servlet做出支持。

图：下面是我给出的示例

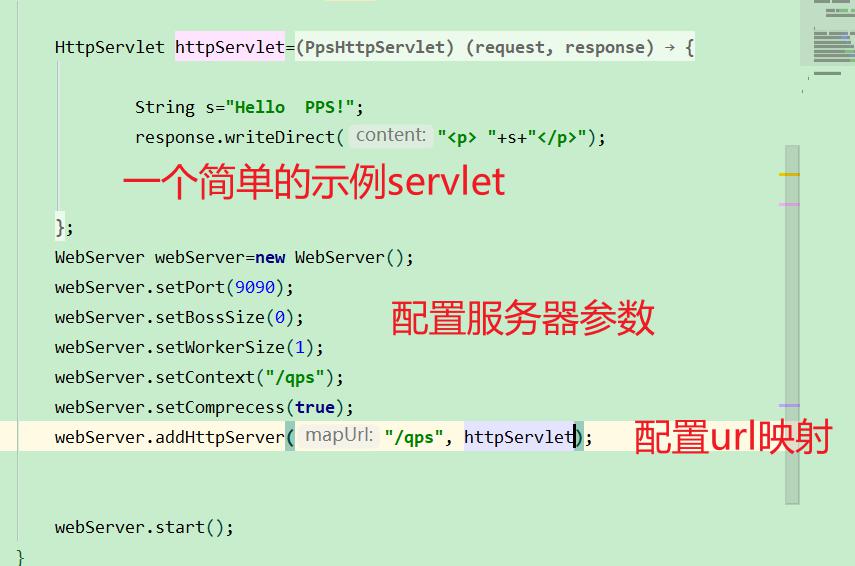

首先这是我写的按照我的规则写的一个普通servlet(不是javax 里面的那个是我自己写的一个接口)

访问效果：

我也写了几个默认的servlet

分别处理 404 500 和 icon 和静态资源请求

下面是静态资源的servlet

import com.pps.web.constant.ContentTypeEnum;
import com.pps.web.constant.PpsWebConstant;
import com.pps.web.data.HttpRequest;
import com.pps.web.data.Response;
import com.pps.web.servlet.model.PpsHttpServlet;import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;/**
* 讲静态资源的默认处理
* @author Pu PanSheng, 2021/12/20
* @version OPRA v1.0
*/
public class DefaultStaticResourceServlet extends PpsHttpServlet { private volatile Map<String, String> resource; public void scanFile(String root){
//检索资源目录
String context =(String) serverParams.get("context");
String mapUrl=(String) serverParams.get(PpsWebConstant.RESOUCE_MAPPING_DIR_KEY);
String dir=(String) serverParams.get(PpsWebConstant.RESOUCE_DIR_KEY);
File file=new File(root);
if(file==null){
return;
}
for (File listFile : file.listFiles()) {
if(listFile.isDirectory()){
scanFile(listFile.getPath());
}else if(listFile.isFile()){
String path = listFile.getPath();
String s = context + mapUrl;
path=path.replace(dir,s);
path=path.replace(File.separator,"/");
resource.put(path, listFile.getAbsolutePath());
}
}
}
@Override
public boolean isMatch(String url) { if(resource==null){
synchronized (this) {
resource = new HashMap<>();
scanFile((String) serverParams.get(PpsWebConstant.RESOUCE_DIR_KEY));
}
}
return resource.containsKey(url); } @Override
public void get(HttpRequest request, Response response) { String url = request.getUrl();
String u = resource.get(url);
try {
int i = url.lastIndexOf(".");
String suffix = url.substring(i + 1);
ContentTypeEnum contentTypeEnum=null;
for (ContentTypeEnum value : ContentTypeEnum.values()) {
String type = value.getType();
if(type.endsWith(suffix)||suffix.equals(value.getDesc())){
contentTypeEnum=value;
break;
}
}
//下载
if(contentTypeEnum==null){
contentTypeEnum=ContentTypeEnum.applicationstream;
}
response.setContentType(contentTypeEnum.getType()); try (FileInputStream fileInputStream = new FileInputStream(u)) { byte[] bu = new byte[1024];
int read = fileInputStream.read(bu);
while (read != -1) {
response.write(bu, 0, read);
read = fileInputStream.read(bu);
}
response.flush(); } } catch (IOException e) {
e.printStackTrace();
throw new RuntimeException("静态资源映射过程出错");
} }
}

静态资源需要配置一下参数：

/**
* 静态资源映射设置
*/
webServer.setStaticResourceDir("c:\\test");
webServer.setResourceMapping("/resource");

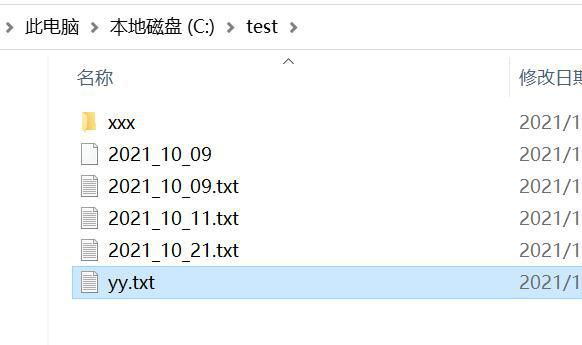

对应电脑情况

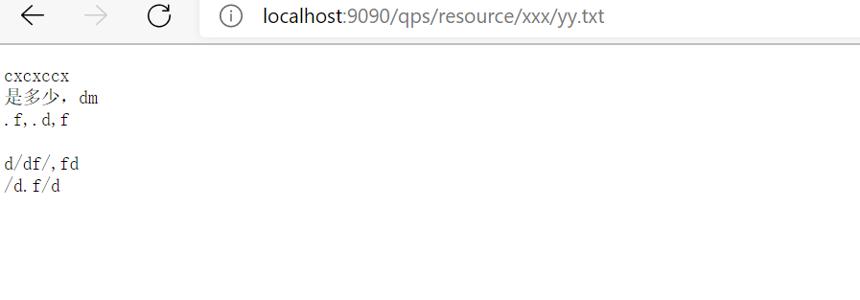

效果：

好了下面上硬菜：怎么实现的用原生的java nio 类实现这种效果：

预备知识：

1 了解reactor模式

2 熟悉http报文规范因为后面要解析http报文

3 了解nio socket等知识

本web服务采用reactor模式和netty类似会有一个专门处理连接的bosser 和处理普通的读写的worker

当配置 bosser等于 0的时候 worker也会承担 bosser的职责处理socket连接

当配置bosser大于0 那么bosser 会处理连接把连接好的socket分发到 worker众多线程里面

所有根据参数的不同 reactor模式也会发生变化

下面作者带着大家看下我写的服务器实现

首先定义工作者worker:

它是非常核心的一个类

他来处理Socket事件其实现了 Runnable对象把他提交到线程池它的run 方法将会执行继而会一直轮询处理Socket的事件

后面将详细介绍怎么处理Socket 不同的事件的：

package com.pps.web;import com.pps.web.constant.PpsWebConstant;
import com.pps.web.hander.EventHander;import java.io.IOException;
import java.nio.channels.*;
import java.util.Iterator;
import java.util.concurrent.BlockingDeque;
import java.util.concurrent.Executor;
import java.util.concurrent.LinkedBlockingDeque;/**
* @author Pu PanSheng, 2021/12/17
* @version OPRA v1.0
*/
public class Worker implements Runnable{ protected Selector selector; /**
* 测试bug的计数器限制
*/ private int testBugSize=PpsWebConstant.TEST_BUG_COUNT; private BlockingDeque<Runnable> task; private Executor executor; private WebServer webServer; public Worker(Executor executor){
try {
this.selector=Selector.open();
this.executor=executor;
this.task=new LinkedBlockingDeque<>(); } catch (IOException e) {
e.printStackTrace();
}
} void init(WebServer webServer){
this.webServer=webServer;
} protected void registerEvent(SelectableChannel selectableChannel, int type) throws ClosedChannelException {
//如果该Selector 此时已经被阻塞在select()中了那么这里会被阻塞住请注意
if(selectableChannel.isOpen()) {
selectableChannel.register(chooseSelector(), type);
}
} /**
* 向工作者注册同步执行任务
* @param runnable
*/
public void registerTask(Runnable runnable){ task.addLast(runnable); } /**
* 向工作者注册异步执行任务
* @param runnable
*/
public void registerAsyncTask(Runnable runnable){ executor.execute(runnable); } protected Selector chooseSelector(){
return selector;
} protected void wakeUp(){
selector.wakeup();
} @Override
public void run() { EventHander instance = EventHander.getInstance(webServer); int count=0;
long startTime=System.nanoTime();
int timeOut= PpsWebConstant.TIMEOUT;
while (true){ try { //同步任务执行
runTask(); /**
* 如果不设置超时时间那么如果线程已经运行了且阻塞在select() 上面
* 这个时候再注册事件那么注册线程会一直阻塞在注册方法上
* 远无法注册成功
* 所以必须加个超时时间
*/
int select = selector.select(timeOut); if(select<=0){ /**
* nio bug 当某些因为poll和epoll对于突然中断的连接socket
* 会对返回的eventSet事件集合置为POLLHUP或者POLLERR，eventSet事件集合发生了变化，
* 这就导致Selector会被唤醒，进而导致CPU 100%问题。
* 根本原因就是JDK没有处理好这种情况，
* 比如SelectionKey中就没定义有异常事件的类型。
*
* 所以需要处理下这种情况:
*/
count++; if(count>testBugSize) { long endTime = System.nanoTime();
long distance = endTime - startTime; //如果小于正常情况下该限制次数下的事件间隔说明触发了bug
if(distance<((testBugSize+1)*1000*1000*timeOut)){ //重建selector
Selector newSelector = Selector.open();
for (SelectionKey key : selector.keys()) {
key.channel().register(newSelector, key.interestOps());
} this.selector=newSelector; } count=0;
startTime=System.nanoTime(); } continue;
}
Iterator<SelectionKey> iterator = selector.selectedKeys().iterator(); while (iterator.hasNext()){ try { SelectionKey next = iterator.next(); if(!next.isValid()){
next.cancel();
continue;
} SelectableChannel channel = next.channel(); if (next.isReadable()) { SocketChannel channelRead = (SocketChannel) channel;
instance.read(channelRead, next, this);
registerEvent(channelRead,SelectionKey.OP_READ); }else if(next.isAcceptable()){ ServerSocketChannel connectChannel = (ServerSocketChannel)channel;
SocketChannel accept = connectChannel.accept();
accept.configureBlocking(false);
registerEvent(accept,SelectionKey.OP_READ); }else if(next.isConnectable()){ }else if (next.isWritable()) { //应当不会出现这种情况 } }catch(Exception e){ e.printStackTrace();
}
finally {
iterator.remove();
startTime=System.nanoTime();
count=0;
} } } catch (Exception e) {
e.printStackTrace();
} } } private void runTask() { while (!task.isEmpty()){
Runnable poll = task.poll();
if(poll!=null){
poll.run();
}
} }
}

对于socket 连接事件处理：

ServerSocketChannel connectChannel = (ServerSocketChannel)channel;
SocketChannel accept = connectChannel.accept();
accept.configureBlocking(false);
registerEvent(accept,SelectionKey.OP_READ);

Worker的

registerEvent(accept,SelectionKey.OP_READ);

就是向当前的 work注册事件

而 BosserWorker 重载了

registerEvent(accept,SelectionKey.OP_READ);

方法
会挑选一个工作者worker 来注册：

如下：

@Override
protected void registerEvent(SelectableChannel selectableChannel, int type) throws ClosedChannelException {

if(type == SelectionKey.OP_ACCEPT){
super.registerEvent(selectableChannel,type);
return;
}
int cU= count.addAndGet(1);
int workL=cU%workers.length;
Worker worker=workers[workL];
worker.registerEvent(selectableChannel, type);
worker.wakeUp();

}

那么对于 read事件是怎么处理的呢这一块牵扯的内容就很多了

因为涉及到 http报文的读取和解析以及对一些异常的处理特别是http报文的解析针对http 上传文件的的报文还有点复杂

首先read事件会调用 EventHander 的 read 方法

public void read(SocketChannel socketChannel, SelectionKey selectionKey, Worker worker) throws IOException {

Response response=null;
try {
//构造自己的输入流方便后面读取

PpsInputSteram ppsInputSteram=new PpsInputSteram(socketChannel,selectionKey);
HttpRequest request= null;

//解析Http报文
request = new HttpRequest(ppsInputSteram, worker);
/**
* 假如服务器 context 为 /
* 1 servlet / 匹配 /
* 2 servlet /key 匹配 /key
* 3 servlet /* 匹配
* 假如服务器 context 为 /context
*
* servlet /context 匹配 url /context/context
* servlet / 匹配 url /context
* servlet /key 匹配 url /context/key
* servlet /* 匹配
*/
try {
//封装Response 方便我们的程序写Http报文响应

response=new Response(socketChannel,webServer.getServerParms());
response.setRequestHeader(request.getHeaderParam()); String matchUrl=request.getUrl(); if(matchUrl==null){
return;
}
if(matchUrl.endsWith("/")){
matchUrl=matchUrl.substring(0,matchUrl.length()-1);
}

//作者定义的规范类似于 java 的servlet HttpServlet httpServlet = mappingServlet.get(matchUrl); if(httpServlet==null){ //是否满足静态资源
if(resourceServlet.isMatch(matchUrl)){
httpServlet=resourceServlet;
} //全局servlet是否存在
if(httpServlet==null){
httpServlet=allServlet;
} //一个都没那么就用系统默认的了也就是404
if(httpServlet==null){
httpServlet=defualtServlet;
} }
//这一步会调用到我们自己写的处理程序
httpServlet.get(request,response);

//一些后置任务假如一个http请求是文件上传那么肯定是要把这个文件放在暂存文件里面的当访问结束后需要删掉它不然会越来越多

if(request.isSavleFile()){ //删除临时文件
HttpRequest finalRequest = request;

//向工作者提交任务
worker.registerTask(()->{
for (Application__multipart_form_dataHttpBodyResolve.FileEntity fromDatum : finalRequest.getFromData()) {
String urlF = fromDatum.getInfo(PpsWebConstant.TEMP_FILE_KEY);
if (urlF != null) {
try {
Files.deleteIfExists(Paths.get(urlF));
} catch (IOException e) {
e.printStackTrace();
}
}
}
}); } }catch (Exception e){

//如果是这种异常那么说明客户端关闭了连接
if(e instanceof ChannelCloseException){
selectionKey.cancel();
socketChannel.close();
}else {
//这种异常就是我们自己的程序异常了需要打印和返回500错误
e.printStackTrace();
errorServlet.get(request, response);
}
} } catch (Exception e) {
if(!(e instanceof IOException)&&!(e instanceof ChannelCloseException)){
e.printStackTrace();
}
selectionKey.cancel();
socketChannel.close();
} }

以上就是非常核心的socketc处理了

下面就进入怎么到解析Http报文

看下我的HttpRquest类当构造它是根据传入的socketChannel 他就会开始解析了并把数据封装到这个对象里面

解析http报文的方法体非常复杂根据不同的Content-Type 需要采取不同的算法所以笔者采用工厂模式+策略方法模式+java的SPI 能够灵活的添加自己的算法

作者默认写了三种解析算法分别解析

application/x-www-form-urlencoded

multipart/form-data

application/json

三种请求体的数据：

请读者自己看吧就不一一介绍了

package com.pps.web.data;import com.pps.web.Worker;
import com.pps.web.constant.PpsWebConstant;
import com.pps.web.exception.ChannelReadEndException;
import com.pps.web.servlet.entity.PpsInputSteram;import java.io.InputStream;
import java.io.UnsupportedEncodingException;
import java.net.URLDecoder;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;/**
* @author Pu PanSheng, 2021/12/18
* @version OPRA v1.0
*/
public class HttpRequest { private String protocol;
private String method;
private Map<String,String> urlParams=new HashMap<>();
private Map<String,String> headerParam=new HashMap<>();
private Map<String,Object> httpBodyData=new HashMap<>();
private boolean isSavleFile;
private PpsInputSteram inputStream;
private String url;
private Worker worker; public HttpRequest(PpsInputSteram inputStream, Worker worker) throws Exception {
this.worker=worker;
this.inputStream = inputStream;
httpResolve();
inputStream.returnBuffer();
} public boolean isSavleFile() {
return isSavleFile;
} public void setSavleFile(boolean savleFile) {
isSavleFile = savleFile;
} public void addTask(Runnable task){ worker.registerTask(task); }
public InputStream getInputStream() {
return inputStream;
} void putHttpBody(String key,Object v){
httpBodyData.put(key,v);
} public List<Application__multipart_form_dataHttpBodyResolve.FileEntity>getFromData(){
Object body = httpBodyData.get("body");
if(body instanceof ArrayList){
return (List<Application__multipart_form_dataHttpBodyResolve.FileEntity>)body;
}
return new ArrayList<>(0);
} public String getBodyContent(){ Object body = httpBodyData.get("body");
return (String)body; } private void httpResolve() throws Exception { //http报文请求行和请求头
List<String> httpReportHead=new ArrayList<>();
byte [] line=new byte[PpsWebConstant.BUFFER_INIT_LENGTH];
int index=0;
while (true) { try{
byte data = (byte) inputStream.read();
line[index]=data; if(data=='\n'&&index!=0&&line[index-1]=='\r'){ String s = new String(line, 0, index+1, "utf-8");
//如果s==\r\n 那么说明这个就是请求体和请求头的那个分隔标记下面的字节就是请求体了
if(s.equals("\r\n")){
break;
}
httpReportHead.add(s);
for (int i = 0; i < line.length; i++) {
line[i]=0;
}
index=0;
continue;
} index++;
//扩容
if(index>=line.length){
byte[] newLine=new byte[line.length*2];
System.arraycopy(line,0,newLine,0,index);
line=newLine;
} }catch (ChannelReadEndException e){
break;
} } //解析请求头
resolveHttpHead(httpReportHead); //请求体解析
String content_type = getHeader("content-type");
if(content_type==null){
content_type=getHeader("Content-Type");
}
if(content_type!=null){
content_type=content_type.trim();
if(content_type.contains("multipart/form-data")){
content_type="multipart/form-data";
}
}
HttpBodyResolve factory = HttpAlgoFactory.getHttpBodyResoveAlgo(content_type);
if(factory!=null){
factory.resolve(this);
} } private void resolveHttpHead(List<String> httpReportHead) throws UnsupportedEncodingException { //解析请求头
if(!httpReportHead.isEmpty()) { //请求行
String requestLine= httpReportHead.get(0);
String[] lineArr = requestLine.split(" ");
setMethod(lineArr[0]);
setProtocol(lineArr[2]);
String url=lineArr[1];
int i1 = url.indexOf("?");
if(i1!=-1) {
String pureUrl = url.substring(0, i1);
String endUrl = url.substring(i1+1);
setUrl(pureUrl);
endUrl= URLDecoder.decode(endUrl, PpsWebConstant.CHAR_SET);
String[] split1 = endUrl.split("&");
for (String s : split1) {
String[] split2 = s.split("=");
if(split2.length==2){
putUrlParam(split2[0], split2[1]);
}
}
}else {
setUrl(url);
} //解析请求头
for (int i = 1; i < httpReportHead.size(); i++) { String[] split1 = httpReportHead.get(i).split(":");
if(split1.length==2){
putHeaderParam(split1[0],split1[1]);
}
} } } public String getProtocol() {
return protocol;
} public void putUrlParam(String key,String v){
urlParams.put(key,v);
}
public void putHeaderParam(String key,String v){
headerParam.put(key,v);
}
public String getHeader(String k){
return headerParam.get(k);
}
public Map<String, String> getHeaderParam() {
return headerParam;
} public void setHeaderParam(Map<String, String> headerParam) {
this.headerParam = headerParam;
} public void setProtocol(String protocol) {
this.protocol = protocol;
} public String getMethod() {
return method;
} public void setMethod(String method) {
this.method = method;
} public Map<String, String> getUrlParams() {
return urlParams;
} public void setUrlParams(Map<String, String> urlParams) {
this.urlParams = urlParams;
} public String getParam(String key){
return urlParams.get(key);
} public String getUrl() {
return url;
} public void setUrl(String url) {
this.url = url;
}
}

对于 content-type

multipart/form-data

的请求体解析：

package com.pps.web.data;import com.pps.web.constant.ContentTypeEnum;
import com.pps.web.constant.PpsWebConstant;import java.io.*;
import java.util.*;/**
* @author Pu PanSheng, 2021/12/19
* @version OPRA v1.0
*/
public class Application__multipart_form_dataHttpBodyResolve implements HttpBodyResolve { private Map<String, Object> serverParam; @Override
public void init(Map<String, Object> serverParam) {
this.serverParam=serverParam;
} @Override
public void resolve(HttpRequest httpRequest) throws Exception { InputStream ppsInputSteram = httpRequest.getInputStream(); List<FileEntity> list=new ArrayList<>(); byte[] spline = getSpline(ppsInputSteram); while (true) { if (spline == null||spline[spline.length-1]=='-') {
break;
} FileEntity fileEntity = new FileEntity();
String desc = getDesc(ppsInputSteram);
String[] split = desc.split("\r\n");
for (String s : split) {
String[] split1 = s.split(";");
for (String s1 : split1) {
String[] split2 = s1.split("=");
if (split2.length == 2) {
String key = split2[0].trim();
String v = split2[1].trim();
fileEntity.putInfo(key, v);
}
} } //具体的内容
byte[] lineBuff = new byte[3*1024]; int indexL = 0;
while (true) { byte data = (byte) ppsInputSteram.read();
if (data != -1) {
lineBuff[indexL] = data;
//如果\r\n 那么说明下面可能就是其他文件了但是还不一定
if (data == '\n' && indexL != 0 && lineBuff[indexL - 1] == '\r') { //看看下一段是否位分隔
byte[] spline2 = getSpline2(ppsInputSteram, spline.length);
boolean f = true;
if (spline2 != null && spline2.length != spline.length) {
f = false;
}
if (f && spline2 != null && spline2.length == spline.length) {
for (int i = 0; i < spline.length - 2; i++) {
if (spline2[i] != spline[i]) {
f = false;
break;
}
}
}
//是分割线表示确实结束了这一段的内容就是文件了
if (f) {
spline = spline2;
break;
} else {//没有结束那么
for (int i = 0; i < spline2.length; i++) {
indexL++;
//扩容
if (indexL >= lineBuff.length) {
lineBuff = resize(lineBuff, indexL);
}
lineBuff[indexL] = spline2[i];
}
}
}
indexL++;
//扩容
if (indexL >= lineBuff.length) {
lineBuff = resize(lineBuff, indexL);
}
} else {
break;
}
} int size=indexL-1;
if(size<=0){
break;
}
String filename = fileEntity.getInfo("filename");
//说明是文件
if(filename!=null){
String tempDir =(String) serverParam.get(PpsWebConstant.TEMP_DIR_KEY);
String tempFileName=tempDir+File.separator+UUID.randomUUID().toString();
try(BufferedOutputStream fileOutputStream=new BufferedOutputStream(new FileOutputStream(tempFileName))) {
fileOutputStream.write(lineBuff, 0, size);
fileOutputStream.flush();
fileEntity.putInfo(PpsWebConstant.TEMP_FILE_KEY, tempFileName);
httpRequest.setSavleFile(true);
}
}else {
byte [] t=new byte[size];
System.arraycopy(lineBuff,0,t,0,size);
fileEntity.setData(t);
}
list.add(fileEntity);
}
httpRequest.putHttpBody("body",list); } @Override
public String getType() {
return ContentTypeEnum.multipartformdata.getType();
}
public byte[] getSpline2(InputStream inputStream, int len) throws IOException { byte [] bytes=new byte[len];
for (int i = 0; i < len; i++) {
byte data = (byte) inputStream.read();
if(data==-1){
break;
}
} return bytes;
}
public byte[] getSpline(InputStream inputStream) throws IOException { //取第一行的标志位
byte[] splitLine=new byte[1024];
int k=0;
while (true) { byte data = (byte) inputStream.read(); if(data!=-1) { splitLine[k] = data;
if (data == '\n' && k != 0 && splitLine[k - 1] == '\r') {
//----------------343434--\r\n 表示结束了
if (splitLine[k - 2] == '-' && splitLine[k - 3] == '-') {
return null;
} k++; if (k >= splitLine.length) {
splitLine = resize(splitLine, k);
} break;
} k++;
if (k >= splitLine.length) {
splitLine = resize(splitLine, k);
}
}else {
break;
} }
byte[] newL=new byte[k];
System.arraycopy(splitLine,0,newL,0,k);
splitLine=newL;
return splitLine; } public String getDesc(InputStream inputStream) throws IOException { StringBuilder stringBuilder=new StringBuilder();
byte[] lineBuff=new byte[1024];
int indexL=0;
while (true) { byte data = (byte) inputStream.read();
if(data!=-1) {
lineBuff[indexL] = data;
if (data == '\n' && indexL != 0 && lineBuff[indexL - 1] == '\r') {
String s = new String(lineBuff, 0, indexL + 1, "utf-8");
//如果s==\r\n 那么说明这个下面就是具体的请求体字节内容
if (s.equals("\r\n")) {
break;
}
stringBuilder.append(s);
for (int i = 0; i < lineBuff.length; i++) {
lineBuff[i] = 0;
}
indexL = 0;
continue;
} indexL++;
//扩容
if (indexL >= lineBuff.length) {
lineBuff = resize(lineBuff, indexL);
}
}else {
break;
}
}
return stringBuilder.toString();
}
public byte[] resize(byte[] lineBuff,int indexL){
int resizeL = lineBuff.length * 2;
if(resizeL>(Integer) serverParam.get("maxDataSize")){
throw new RuntimeException("超过服务器最大可支持数据大小！");
}
byte[] newLine=new byte[resizeL];
System.arraycopy(lineBuff,0,newLine,0,indexL);
return newLine;
} public static class FileEntity{ private Map<String,String> info=new HashMap<>();
private byte [] data;
private InputStream inputStream;
public InputStream getInputStream() {
if(inputStream!=null){
return inputStream;
}
String url = info.get("pps-file-url");
if(url==null){
return null;
}
try {
inputStream=new FileInputStream(url);
return inputStream;
} catch (FileNotFoundException e) {
e.printStackTrace();
throw new RuntimeException(e);
}
}
void putInfo(String k,String v){
info.put(k,v);
}
public String getInfo(String k){
return info.get(k);
} public void setData(byte[] data) {
this.data = data;
} public byte[] getData() {
return data;
}
}
}

其他的就不举例了对于上传文件的请求服务器会将这个文件存到临时目录当我们想要拿到这个文件流时可以调用Request的相关方法西面是我写的一个上传的servletDemo

import com.pps.web.data.Application__multipart_form_dataHttpBodyResolve;
import com.pps.web.data.HttpRequest;
import com.pps.web.data.Response;
import com.pps.web.servlet.model.PpsHttpServlet;import java.io.InputStream;
import java.util.List;/**
* @author Pu PanSheng, 2021/12/21
* @version OPRA v1.0
*/
public class UploadServlet extends PpsHttpServlet {
@Override
public void get(HttpRequest request, Response response) { List<Application__multipart_form_dataHttpBodyResolve.FileEntity> fromData = request.getFromData(); fromData.forEach(f->{ f.getInfo("name");
String filename = f.getInfo("filename");
//说明时文件流
if(filename!=null) {
//得到文件流
InputStream inputStream = f.getInputStream(); }else {
//普通key 那么直接转成字符
byte[] data = f.getData();
String s = new String(data); } }); }
}

接下来看下是怎么处理Response 当我们在自己的程序里写入数据是如何返回给服务器的

搜先我们需要的知道我们的数据想要让浏览器任务那么必须告诉浏览器如下信息：

什么文件类型(也就是content-Type)

数据量多大（不告诉这个浏览器就会一直转圈因为它不知到结束没有但是有时候我们并不知道我们要发送的数据有多大那么就需要使用到分块传输 Chunck）

还有Http报文的那些规范请求头请求行

我们的程序应该只需要关心发送的数据以上对于使用者应该是透明的所以Response的重点就在这里下面请看Response 的Write等重点方法

package com.pps.web.data;import com.pps.web.WebServer;
import com.pps.web.constant.PpsWebConstant;
import com.pps.web.exception.ChannelCloseException;
import com.pps.web.util.BufferUtil;import java.io.IOException;
import java.nio.channels.SocketChannel;
import java.util.HashMap;
import java.util.HashSet;
import java.util.Map;
import java.util.Set;/**
* @author Pu PanSheng, 2021/12/18
* @version OPRA v1.0
*/
public class Response { private SocketChannel socketChannel;
private String protocol="HTTP/1.1";
private String code="200";
private String contentType="text/html";
private String charset="utf-8";
private Map<String,String> headerParams=new HashMap<>();
private Map<String,String> requestHeader=new HashMap<>(); /**
* 客户端可支持压缩格式
*/
private String[] acceptEncoding; /**
* 应用的压缩算法
*/
private ContentEncoding applyEncoding; /**
* 压缩文件支持类型
*/
private Set<String> compressContentType=new HashSet<>(); /**
* 是否开启压缩
*/
private boolean cancompress=false; private boolean flag; private Map<String, Object> serverParam; public Response(SocketChannel socketChannel,Map<String, Object> serverParam) { this.serverParam=serverParam;
this.socketChannel = socketChannel;
headerParams.put("Connection","keep-alive");
cancompress= (Boolean)serverParam
.getOrDefault(PpsWebConstant.OPEN_CONPRECESS_KEY,false);
String[] ss=(((String)serverParam
.get(PpsWebConstant.CONPRECESS_TYPE_KEY)).split(","));
for (String s : ss) {
compressContentType.add(s);
} } public void setRequestHeader(Map<String, String> requestHeader) {
String s = requestHeader.get("Accept-Encoding");
if(s==null){
s=requestHeader.get("accept-encoding");
}
if(s!=null){
acceptEncoding=s.split(",");
for (int i = 0; i < acceptEncoding.length; i++) {
acceptEncoding[i]=acceptEncoding[i].trim();
}
}
this.requestHeader = requestHeader;
} public void setCode(int code){
this.code=String.valueOf(code);
}
public void setCharset(String charset){
this.charset=charset;
}
public void setContentType(String contentType){
this.contentType=contentType;
}
public void putHeaderParam(String key,String v){
headerParams.put(key,v);
} public void write(byte [] bytes){
write(bytes,0,bytes.length);
}
public void write(String s){
write(BufferUtil.strToBytes(s,charset));
}
public void write(byte [] bytes,int offset, int len){ if(!flag){//第一次那么需要写入 http报文头
byte[] messageChunckHead = createMessageChunckHead();
doWrite(messageChunckHead);
flag=true;
}
//写入chunk 内容
byte[] content = createChunckBody(bytes,offset,len);
doWrite(content);
} /**
* 结束发送如果是write 那么必须要用flush 结束发送不然浏览器无法结束
*/
public void flush(){
byte[] encoding = createEndChunckBody();
doWrite(encoding);
}
/**
* 压缩编码
* @param bytes
* @return
*/
private byte[] encoding(byte[] bytes,int offset,int len){ if(isSupportCompress()){
return applyEncoding.convert(bytes,offset,len);
}
return bytes;
} /**
* 当前应用是否支持压缩
* @return
*/
private boolean isSupportCompress(){ boolean f1=cancompress
&&applyEncoding!=null
&&acceptEncoding!=null
&&acceptEncoding.length>0;
if(f1) {
String s = headerParams.get("content-type");
if (s == null) {
s = headerParams.get("Content-Type");
}
return compressContentType.contains(s);
} return false;
}
/**
* 直接发送一次发送完毕只能调用一次不必调用flush
* @param content
*/
public void writeDirect(String content){
byte[] co=createMessage(content);
doWrite(co);
}
/**
* 直接发送一次发送完毕只能调用一次不必调用flush
* @param bytes
*/
public void writeDirect(byte [] bytes) {
bytes=createMessage(bytes);
doWrite(bytes);
} private void doWrite(byte [] ccc){
BufferUtil.write(ccc,(byteBuffer)->{
try {
socketChannel.write(byteBuffer);
} catch (IOException e) {
throw new ChannelCloseException(e);
}
});
} /**
* 构造普通的响应头带有content_length
* @param httpr
* @return
*/
private byte[] createMessage(String httpr) {
return createMessage(BufferUtil.strToBytes(httpr,charset));
} /**
* 构造普通的响应头带有content_length
* @param httpr
* @return
*/
private byte[] createMessage(byte [] httpr) { StringBuilder returnStr = new StringBuilder();
//请求行
appendResponLine(returnStr,String.format("%s %s ok"
,protocol
,code));//增加响应消息行 //请求头
compreHander(returnStr,true); /**
* 可能会被压缩
*/
httpr=encoding(httpr,0,httpr.length); String contentLen=String.valueOf(httpr.length); appendResponseHeader(returnStr,"Content-Type: "+contentType+";charset=" + charset);
appendResponseHeader(returnStr,String.format("Content-Length: %s",contentLen));
headerParams.forEach((k,v)->{
appendResponseHeader(returnStr,k +": "+v);
}); returnStr.append("\r\n"); //请求体
byte[] bytes = BufferUtil.strToBytes(returnStr.toString(),charset); int i = httpr.length + bytes.length;
byte[] newC=new byte[i];
System.arraycopy(bytes,0,newC,0,bytes.length);
System.arraycopy(httpr,0,newC,bytes.length,httpr.length);
return newC;
} /**
* 压缩头添加
* @param stringBuilder
*/
private void compreHander(StringBuilder stringBuilder, boolean force){ if(applyEncoding==null&&acceptEncoding!=null){
for (String s : acceptEncoding) {
ContentEncoding contentEncodingAlgo = HttpAlgoFactory.getContentEncodingAlgo(s);
if(contentEncodingAlgo !=null){
applyEncoding= contentEncodingAlgo;
break;
}
}
}
if(force&&isSupportCompress()){
appendResponseHeader(stringBuilder,String.format("content-encoding: %s",applyEncoding.support()));
}
}
/**
* 构造http 分块请求头不带有content_length
*
* 压缩算法例如gizp 和 chunck分块传输如何组合呢
*
* 答：
* 只能先要把发送的数据用gzip 组合起来然后再分块传输
* 而不是对每一块分别进行压缩后再发送
* @return
*/
private byte[] createMessageChunckHead() { StringBuilder returnStr = new StringBuilder();
//请求行
appendResponLine(returnStr,String.format("%s %s ok"
,protocol
,code));//增加响应消息行
//请求头
appendResponseHeader(returnStr,"Content-Type: "+contentType+";charset=" + charset);
appendResponseHeader(returnStr,String.format("Transfer-Encoding: %s","chunked")); headerParams.forEach((k,v)->{
appendResponseHeader(returnStr,k +": "+v);
}); returnStr.append("\r\n");
byte[] bytes =null;
bytes = BufferUtil.strToBytes(returnStr.toString(),charset);
return bytes; } private byte [] createChunckBody(byte [] bytes,int offset,int lenA){ String len = Integer.toHexString(lenA);
String h=len+"\r\n";
byte[] bytes1 = BufferUtil.strToBytes(h);
int i = lenA + bytes1.length;
byte[] n=new byte[i+2];
System.arraycopy(bytes1,0,n,0,bytes1.length);
System.arraycopy(bytes,offset, n,bytes1.length,lenA);
n[i]='\r';
n[i+1]='\n';
return n; }
private byte [] createEndChunckBody(){ String end="0\r\n\r\n";
byte[] bytes = BufferUtil.strToBytes(end);
return bytes; }
private void appendResponLine(StringBuilder stringBuilder,String line){
stringBuilder.append(line+"\r\n");
}
private void appendResponseHeader(StringBuilder stringBuilder,String line){
stringBuilder.append(line+"\r\n");
}}
