QT笔记之VS2012 TCP传送文件

#ifndef TCPFILE_H
#define TCPFILE_H #include <QtWidgets/QWidget>
#include "ui_tcpfile.h"

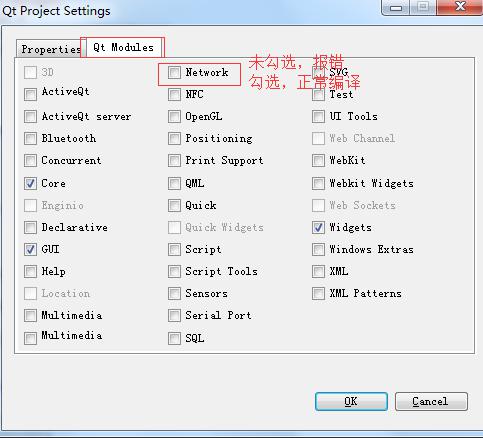

#include <QtNetwork/QTcpServer>//监听套接字
#include <QtNetwork/QTcpSocket>//通信套接字
#include <QFile>
#include <QTimer> class TCPFile : public QWidget
{
Q_OBJECT public:
TCPFile(QWidget *parent = );
~TCPFile(); void SendData();//发送文件数据函数 private slots:
void on_buttonSelect_clicked(); void on_buttonSend_clicked(); private:
Ui::TCPFileClass ui; QTcpServer* tcpServer;//监听套接字
QTcpSocket* tcpSocket;//通信套接字 QFile file;//文件对象
QString filename;//文件名字
qint64 filesize;//文件大小
qint64 sendsize;//已发送文件大小 QTimer timer;//定时器
}; #endif // TCPFILE_H

#include "tcpfile.h"
#include <QTextCodec>
#include <QFileDialog>//选择文件对话框
#include <QDebug>
#include <QFileInfo>//文件信息 TCPFile::TCPFile(QWidget *parent)
: QWidget(parent)
{
ui.setupUi(this); //监听套接字
tcpServer = new QTcpServer(this); //监听
tcpServer->listen(QHostAddress::Any,); QTextCodec *codec = QTextCodec::codecForLocale();//解决中文乱码 QString Titleinfo = codec->toUnicode("服务器端口为:8888"); setWindowTitle(Titleinfo); //建立连接之前两个按钮不可用
ui.buttonSelect->setEnabled(false);
ui.buttonSend->setEnabled(false); //如果客户端和服务器连接
//tcpServer会自动触发 newConnection() connect(tcpServer,&QTcpServer::newConnection,
[=]()
{
//取出建立好连接的套接字
tcpSocket = tcpServer->nextPendingConnection(); //获取对方的ip和port
QString strIP = tcpSocket->peerAddress().toString();
quint16 port = tcpSocket->peerPort(); QString str = QStringLiteral("[%1,%2] 成功连接").arg(strIP).arg(port);
//str = codec->toUnicode(str); ui.textEdit->setText(str);//显示到编辑框 //成功连接后 选择按钮可用 ui.buttonSelect->setEnabled(true);
}
); connect(&timer,&QTimer::timeout,
[=]()
{
//关闭定时器
timer.stop();
SendData();
}
);
} TCPFile::~TCPFile()
{ } void TCPFile::on_buttonSelect_clicked()
{
QString filepath = QFileDialog::getOpenFileName(this,"open","../"); if(!filepath.isEmpty())
{
//文件路径有效
//只读方式打开文件
filename.clear();
filesize = ; QFileInfo info(filepath);//获取文件信息
filename = info.fileName();
filesize = info.size(); sendsize = ;//发送文件的大小 file.setFileName(filepath); //打开文件 bool isOk = file.open(QIODevice::ReadOnly); if(false == isOk)
{
qDebug() << "只读方式打开文件失败";
}
else
{
//提示打开文件的路径
ui.textEdit->append(filepath);
ui.buttonSelect->setEnabled(false);
ui.buttonSend->setEnabled(true); }
}
} void TCPFile::on_buttonSend_clicked()
{
//先发送文件头部信息
QString head = QString("%1##%2").arg(filename).arg(filesize);//自定义文件头部 //发送头部信息
qint64 len = tcpSocket->write(head.toUtf8());
if(len > )//头部信息发送成功
{
//发送真正的文件信息
//防止TCP粘包文件
//需要通过定时器延时 20ms timer.start();
}
else
{
qDebug() << "头部信息发送失败 115";
file.close(); ui.buttonSelect->setEnabled(true);
ui.buttonSend->setEnabled(false);
}
} void TCPFile::SendData()
{
qint64 len = ; do
{
//每次发送数据的大小
char buf[*] = {};
len = ; //往文件中读数据
len = file.read(buf,sizeof(buf));
//发送数据 读多少 发送多少 //发送多好
len = tcpSocket->write(buf,len);
sendsize += len;
}while(len > ); if(sendsize == filesize)
{
ui.textEdit->append("file finshed");
file.close(); //把客户端断开连接
tcpSocket->disconnectFromHost();
tcpSocket->close();
}
}

#ifndef CLIENTWIDGET_H
#define CLIENTWIDGET_H #include <QWidget>
#include "ui_clientwidget.h"
#include <QtNetwork/QTcpSocket>//通信套接字
#include <QFile> class ClientWidget : public QWidget
{
Q_OBJECT public:
ClientWidget(QWidget *parent = );
~ClientWidget(); private slots:
void on_buttonConnect_clicked(); private:
Ui::ClientWidget ui; QTcpSocket* tcpSocket;//通信套接字 QFile file;//文件对象
QString filename;//文件名字
qint64 filesize;//文件大小
qint64 recvsize;//已接收文件大小 bool isHead;//是否是头
}; #endif // CLIENTWIDGET_H

#include "clientwidget.h"
#include <QMessageBox>
#include <QHostAddress>
#include <QTextCodec> ClientWidget::ClientWidget(QWidget *parent)
: QWidget(parent)
{
ui.setupUi(this); tcpSocket = new QTcpSocket(this); setWindowTitle(QStringLiteral("客户端")); isHead = true; QTextCodec *codec = QTextCodec::codecForLocale();//解决中文乱码 connect(tcpSocket,&QTcpSocket::readyRead,
[=]()
{
//取出接收到的东西
QByteArray buf = tcpSocket->readAll(); if (isHead)
{//接收头
isHead = false;
//解析头部信息 QString buf = "hello##1024"; 文件名为 "hello" 大小为 1024
// QString str ="hello##1024";
//str.section("##",0,0); 取出 "hello"
//str.section("##",1,1); 取出 "1024" filename = QString(buf).section("##", , );
filesize = QString(buf).section("##", , ).toInt();
recvsize = ; //初始化
//打开文件 file.setFileName(filename); bool isOk = file.open(QIODevice::WriteOnly); if (false == isOk)
{
QMessageBox::information(this,"打开","文件打开失败");
} }
else
{
//文件信息
qint64 len = file.write(buf); recvsize += len; if (recvsize == filesize)
{
file.close();
QString title = codec->toUnicode("完成");
QString info = codec->toUnicode("接收完成");
QMessageBox::information(this,title,info); //断开连接
tcpSocket->disconnectFromHost();
tcpSocket->close();
} }
}
);
} ClientWidget::~ClientWidget()
{ } void ClientWidget::on_buttonConnect_clicked()
{
//获取服务器的IP和端口 QString strIP = ui.lineEditIP->text();
quint16 port = ui.lineEditPort->text().toInt(); tcpSocket->connectToHost(QHostAddress(strIP),port);
}

#include "tcpfile.h"
#include <QtWidgets/QApplication>
#include "clientwidget.h" int main(int argc, char *argv[])
{
QApplication a(argc, argv);
TCPFile w;
w.show(); ClientWidget cw;
cw.show(); return a.exec();
}
