【Android】3.20 示例20—全景图完整示例

using Android.App;
using Android.Content;
using Android.OS;
using Android.Views;
using Android.Widget;
namespace BdMapV371Demos.SrcSdkDemos
{
[Activity(Label = "@string/demo_name_panorama")]
public class Demo20PanoActivity : Activity
{
protected override void OnCreate(Bundle savedInstanceState)
{
base.OnCreate(savedInstanceState);
SetContentView(Resource.Layout.demo20_panodemo); ListView mListView = FindViewById<ListView>(Resource.Id.panodemo_list);
mListView.Adapter = new DemoListAdapter(this);
mListView.ItemClick += (s, e) =>
{
Intent intent = new Intent(this, panoDemos[e.Position].demoClass.GetType());
intent.PutExtra("type", (int)panoDemos[e.Position].type);
StartActivity(intent);
};
} private static readonly DemoInfo<Activity>[] panoDemos =
{
new DemoInfo<Activity>(PanoDemoType.PID, Resource.String.demo_title_panorama,
Resource.String.demo_desc_panorama0, new Demo20PanoMain()),
new DemoInfo<Activity>(PanoDemoType.Geo, Resource.String.demo_title_panorama,
Resource.String.demo_desc_panorama1, new Demo20PanoMain()),
new DemoInfo<Activity>(PanoDemoType.Mercator, Resource.String.demo_title_panorama,
Resource.String.demo_desc_panorama2, new Demo20PanoMain()),
new DemoInfo<Activity>(PanoDemoType.UIDStreet, Resource.String.demo_title_panorama,
Resource.String.demo_desc_panorama3, new Demo20PanoMain()),
new DemoInfo<Activity>(PanoDemoType.UIDInterior, Resource.String.demo_title_panorama,
Resource.String.demo_desc_panorama4, new Demo20PanoMain()),
new DemoInfo<Activity>(PanoDemoType.Marker, Resource.String.demo_title_panorama,
Resource.String.demo_desc_panorama5, new Demo20PanoMain()),
new DemoInfo<Activity>(PanoDemoType.CoordinateConverter, Resource.String.demo_title_panorama,
Resource.String.demo_desc_panorama6, new Demo20PanoCoordinate()),
new DemoInfo<Activity>(PanoDemoType.Other, Resource.String.demo_title_panorama,
Resource.String.demo_desc_panorama7, new Demo20PanoMain())
}; private class DemoListAdapter : BaseAdapter
{
Demo20PanoActivity demo20;
public DemoListAdapter(Demo20PanoActivity demo20) : base()
{
this.demo20 = demo20;
} public override View GetView(int index, View convertView, ViewGroup parent)
{
convertView = View.Inflate(demo20, Resource.Layout.demo20_panodemo_list_item, null);
TextView title = convertView.FindViewById<TextView>(Resource.Id.item_title);
TextView desc = convertView.FindViewById<TextView>(Resource.Id.item_desc); title.SetText(panoDemos[index].title);
desc.SetText(panoDemos[index].desc);
return convertView;
} public override int Count
{
get { return panoDemos.Length; }
} public override Java.Lang.Object GetItem(int index)
{
return panoDemos[index];
} public override long GetItemId(int id)
{
return id;
}
} private class DemoInfo<T> : Java.Lang.Object where T : Activity
{
public readonly int title;
public readonly int desc;
public readonly PanoDemoType type;
public readonly T demoClass;
public DemoInfo(PanoDemoType type, int title, int desc, T demoClass)
{
this.type = type;
this.title = title;
this.desc = desc;
this.demoClass = demoClass;
}
}
} public enum PanoDemoType
{
/// <summary>PID方式</summary>
PID = ,
/// <summary>经纬度方式</summary>
Geo,
/// <summary>墨卡托方式</summary>
Mercator,
/// <summary>UID方式展示外景</summary>
UIDStreet,
/// <summary>UID方式展示内景</summary>
UIDInterior,
/// <summary>标注</summary>
Marker,
/// <summary>坐标转换测试</summary>
CoordinateConverter,
/// <summary>其他测试</summary>
Other
}
}

using Android.App;
using Android.Content.PM;
using Android.OS;
using Android.Widget;
using Com.Baidu.Lbsapi.Panoramaview;
using Com.Baidu.Lbsapi;
using Android.Views;
using Android.Util;
using System.Threading.Tasks;
using Com.Baidu.Lbsapi.Model;
using Com.Baidu.Lbsapi.Tools;
using Android.Content;namespace BdMapV371Demos.SrcSdkDemos
{
/// <summary>
/// 全景Demo主Activity
/// </summary>
[Activity(Label = "@string/demo_name_panorama",
ConfigurationChanges = ConfigChanges.Orientation | ConfigChanges.KeyboardHidden,
ScreenOrientation = ScreenOrientation.Sensor)]
public class Demo20PanoMain : Activity, IMKGeneralListener
{
private BMapManager mBMapManager;
private PanoramaView mPanoView;
private TextView textTitle;
private Button btnImageMarker, btnTextMarker;// 添加移除marker测试
private Button btnIsShowArrow, btnArrowStyle01, btnArrowStyle02;// 全景其他功能测试
private Button btnIsShowInoorAblum; private View seekPitchLayout, seekHeadingLayout, seekLevelLayout;
private SeekBar seekPitch, seekHeading, seekLevel;// 俯仰角,偏航角,全景图缩放测试 private bool isAddImageMarker = false;
private bool isAddTextMarker = false;
private bool isShowArrow = false;
private bool isShowAblum = true; protected override void OnCreate(Bundle savedInstanceState)
{
base.OnCreate(savedInstanceState);
mBMapManager = new BMapManager(ApplicationContext);
mBMapManager.Init(this);
RequestWindowFeature(WindowFeatures.NoTitle);
SetContentView(Resource.Layout.demo20_panodemo_main);
InitView();
TestPanoByType(Intent.GetIntExtra("type", -));
}
private void InitView()
{
textTitle = FindViewById<TextView>(Resource.Id.panodemo_main_title);
mPanoView = FindViewById<PanoramaView>(Resource.Id.panorama);
btnImageMarker = FindViewById<Button>(Resource.Id.panodemo_main_btn_imagemarker);
btnTextMarker = FindViewById<Button>(Resource.Id.panodemo_main_btn_textmarker); btnIsShowArrow = FindViewById<Button>(Resource.Id.panodemo_main_btn_showarrow);
btnArrowStyle01 = FindViewById<Button>(Resource.Id.panodemo_main_btn_arrowstyle_01);
btnArrowStyle02 = FindViewById<Button>(Resource.Id.panodemo_main_btn_arrowstyle_02);
btnIsShowInoorAblum = FindViewById<Button>(Resource.Id.panodemo_main_btn_indoor_album); btnImageMarker.Click += delegate
{
if (!isAddImageMarker)
{
AddImageMarker();
btnImageMarker.Text = "删除图片标注";
}
else {
RemoveImageMarker();
btnImageMarker.Text = "添加图片标注";
}
isAddImageMarker = !isAddImageMarker;
}; btnTextMarker.Click += delegate
{
if (!isAddTextMarker)
{
AddTextMarker();
btnTextMarker.Text = "删除文字标注";
}
else {
RemoveTextMarker();
btnTextMarker.Text = "添加文字标注";
}
isAddTextMarker = !isAddTextMarker;
}; seekPitchLayout = FindViewById(Resource.Id.seekpitch_ly);
seekHeadingLayout = FindViewById(Resource.Id.seekheading_ly);
seekLevelLayout = FindViewById(Resource.Id.seeklevel_ly);
seekPitch = FindViewById<SeekBar>(Resource.Id.seekpitch);
seekLevel = FindViewById<SeekBar>(Resource.Id.seeklevel);
seekHeading = FindViewById<SeekBar>(Resource.Id.seekheading); //seekPitch.StopTrackingTouch += (s, e) =>{ };
//seekPitch.StartTrackingTouch += (s, e) => { };
seekPitch.ProgressChanged += (s, e) =>
{
mPanoView.PanoramaPitch = e.Progress - ;
}; //seekHeading.StopTrackingTouch += (s, e) => { };
//seekHeading.StartTrackingTouch += (s, e) => { };
seekHeading.ProgressChanged += (s, e) =>
{
mPanoView.PanoramaHeading = e.Progress;
}; //seekLevel.StopTrackingTouch += (s, e) => { };
//seekLevel.StartTrackingTouch += (s, e) => { };
seekLevel.ProgressChanged += (s, e) =>
{
mPanoView.SetPanoramaZoomLevel(e.Progress + );
};
} private void TestPanoByType(int type)
{
mPanoView.SetShowTopoLink(true);
HideMarkerButton();
HideSeekLayout();
HideOtherLayout();
HideIndoorAblumLayout(); // 测试回调函数,需要注意的是回调函数要在setPanorama()之前调用，否则回调函数可能执行异常
mPanoView.LoadPanoramaBegin += (s, e) =>
{
Log.Debug("Demo20PanoMain", "onLoadPanoramaStart...");
};
mPanoView.LoadPanoramaEnd += (s, e) =>
{
var json = e.P0;
Log.Debug("Demo20PanoMain", "onLoadPanoramaEnd : " + json);
};
mPanoView.LoadPanoramaError += (s, e) =>
{
var error = e.P0;
Log.Debug("Demo20PanoMain", "onLoadPanoramaError : " + error);
};
switch (type)
{

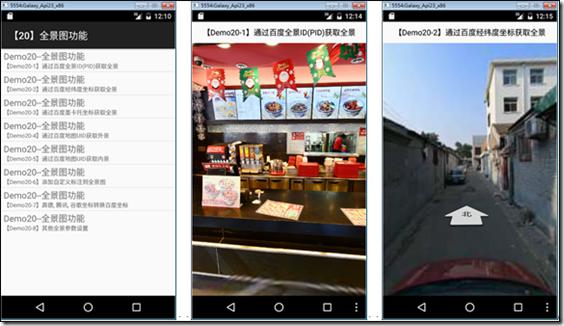

case (int)PanoDemoType.PID:
{
textTitle.SetText(Resource.String.demo_desc_panorama0);
mPanoView.SetPanoramaImageLevel(PanoramaView.ImageDefinition.ImageDefinitionHigh);
string pid = "0900220000141205144547300IN";
mPanoView.SetPanorama(pid);
}
break;
case (int)PanoDemoType.Geo:
{
textTitle.SetText(Resource.String.demo_desc_panorama1);
double lat = 39.945;
double lon = 116.404;
mPanoView.SetPanorama(lon, lat);
}
break;

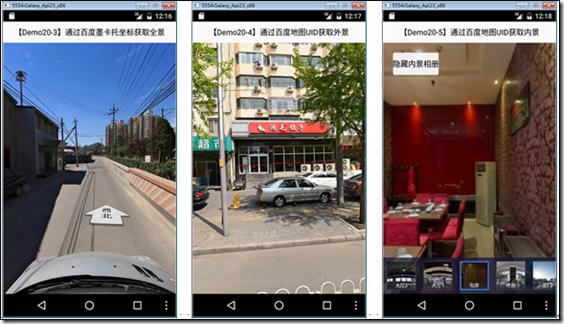

case (int)PanoDemoType.Mercator:
{
textTitle.SetText(Resource.String.demo_desc_panorama2);
mPanoView.SetPanoramaImageLevel(PanoramaView.ImageDefinition.ImageDefinitionHigh);
int mcX = ;
int mcY = ;
mPanoView.SetPanorama(mcX, mcY);
}
break;
case (int)PanoDemoType.UIDStreet:
{
textTitle.SetText(Resource.String.demo_desc_panorama3);
mPanoView.SetPanoramaZoomLevel();
mPanoView.SetArrowTextureByUrl("http://d.lanrentuku.com/down/png/0907/system-cd-disk/arrow-up.png");
mPanoView.SetPanoramaImageLevel(PanoramaView.ImageDefinition.ImageDefinitionMiddle);
string uid = "bff8fa7deabc06b9c9213da4";
mPanoView.SetPanoramaByUid(uid, PanoramaView.PanotypeStreet);
}
break;
case (int)PanoDemoType.UIDInterior:
{
textTitle.SetText(Resource.String.demo_desc_panorama4);
ShowIndoorAblumLayout();
mPanoView.SetPanoramaByUid("7c5e480b109e67adacb22aae", PanoramaView.PanotypeInterior);
btnIsShowInoorAblum.Click += delegate
{
if (!isShowAblum)
{
btnIsShowInoorAblum.Text = "隐藏内景相册";
mPanoView.SetIndoorAlbumVisible();
}
else {
btnIsShowInoorAblum.Text = "显示内景相册";
mPanoView.SetIndoorAlbumGone();
}
isShowAblum = !isShowAblum;
};
}
break;

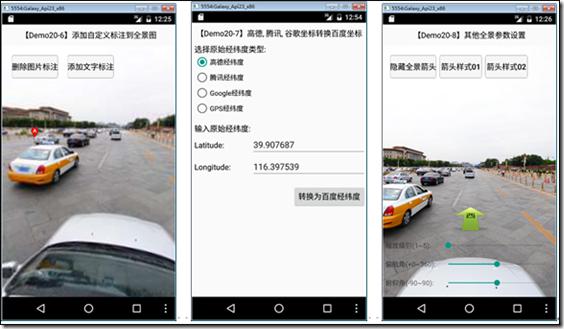

case (int)PanoDemoType.Marker:
{
textTitle.SetText(Resource.String.demo_desc_panorama5);
showMarkerButton();
mPanoView.SetPanorama("0900220001150514054806738T5");
mPanoView.SetShowTopoLink(false);
}
break;
case (int)PanoDemoType.Other:
{
textTitle.SetText(Resource.String.demo_desc_panorama7);
ShowSeekLayout();
ShowOtherLayout();
mPanoView.SetPanoramaImageLevel(PanoramaView.ImageDefinition.ImageDefinitionHigh);
string pid = "0900220001150514054806738T5";
mPanoView.SetPanorama(pid); // 测试获取内景的相册描述信息和服务推荐描述信息
TestPanoramaRequest(); btnIsShowArrow.Click += delegate
{
if (!isShowArrow)
{
mPanoView.SetShowTopoLink(false);
btnIsShowArrow.Text = "显示全景箭头";
}
else
{
mPanoView.SetShowTopoLink(true);
btnIsShowArrow.Text = "隐藏全景箭头";
}
isShowArrow = !isShowArrow;
}; btnArrowStyle01.Click += delegate
{
mPanoView.SetArrowTextureByUrl("http://d.lanrentuku.com/down/png/0907/system-cd-disk/arrow-up.png");
};
btnArrowStyle02.Click += delegate
{
Android.Graphics.Bitmap bitmap = Android.Graphics.BitmapFactory.DecodeResource(Resources, Resource.Drawable.street_arrow);
mPanoView.SetArrowTextureByBitmap(bitmap);
};
}
break;
}//end switch
} private void TestPanoramaRequest()
{
string LTAG = "Demo20PanoMain";
Task.Run(() =>
{
PanoramaRequest panoramaRequest = PanoramaRequest.GetInstance(this);
string pid = "01002200001307201550572285B";
Log.Error(LTAG, "PanoramaRecommendInfo");
Log.Info(LTAG, panoramaRequest.GetPanoramaRecommendInfo(pid)); string iid = "978602fdf6c5856bddee8b62";
Log.Error(LTAG, "PanoramaByIIdWithJson");
Log.Info(LTAG, panoramaRequest.GetPanoramaByIIdWithJson(iid)); // 通过百度经纬度坐标获取当前位置相关全景信息，包括是否有外景，外景PID，外景名称等
double lat = 40.029233;
double lon = 116.32085;
BaiduPanoData mPanoDataWithLatLon = panoramaRequest.GetPanoramaInfoByLatLon(lon, lat);
Log.Error(LTAG, "PanoDataWithLatLon");
Log.Info(LTAG, mPanoDataWithLatLon.Description); // 通过百度墨卡托坐标获取当前位置相关全景信息，包括是否有外景，外景PID，外景名称等
int x = ;
int y = ;
BaiduPanoData mPanoDataWithXy = panoramaRequest.GetPanoramaInfoByMercator(x, y); Log.Error(LTAG, "PanoDataWithXy");
Log.Info(LTAG, mPanoDataWithXy.Description); // 通过百度地图uid获取该poi下的全景描述信息，以此来判断此UID下是否有内景及外景
string uid = "bff8fa7deabc06b9c9213da4";
BaiduPoiPanoData poiPanoData = panoramaRequest.GetPanoramaInfoByUid(uid);
Log.Error(LTAG, "poiPanoData");
Log.Info(LTAG, poiPanoData.Description);
});
} // 隐藏添加删除标注按钮
private void HideMarkerButton()
{
btnImageMarker.Visibility = ViewStates.Gone;
btnTextMarker.Visibility = ViewStates.Gone;
} // 显示添加删除标注按钮
private void showMarkerButton()
{
btnImageMarker.Visibility = ViewStates.Visible;
btnTextMarker.Visibility = ViewStates.Visible;
} // 隐藏设置俯仰角偏航角SeekBar
private void HideSeekLayout()
{
seekPitchLayout.Visibility = ViewStates.Gone;
seekHeadingLayout.Visibility = ViewStates.Gone;
seekLevelLayout.Visibility = ViewStates.Gone;
} // 显示设置俯仰角偏航角SeekBar
private void ShowSeekLayout()
{
seekPitchLayout.Visibility = ViewStates.Visible;
seekHeadingLayout.Visibility = ViewStates.Visible;
seekLevelLayout.Visibility = ViewStates.Visible;
} // 隐藏其他功能测试
private void HideOtherLayout()
{
btnIsShowArrow.Visibility = ViewStates.Gone;
btnArrowStyle01.Visibility = ViewStates.Gone;
btnArrowStyle02.Visibility = ViewStates.Gone;
} // 显示其他功能测试
private void ShowOtherLayout()
{
btnIsShowArrow.Visibility = ViewStates.Visible;
btnArrowStyle01.Visibility = ViewStates.Visible;
btnArrowStyle02.Visibility = ViewStates.Visible;
} // 隐藏内景相册测试
private void HideIndoorAblumLayout()
{
btnIsShowInoorAblum.Visibility = ViewStates.Gone;
} // 显示内景相册测试
private void ShowIndoorAblumLayout()
{
btnIsShowInoorAblum.Visibility = ViewStates.Visible;
} private ImageMarker marker1;
private ImageMarker marker2; /// <summary>
/// 添加图片标注
/// </summary>
private void AddImageMarker()
{
// 天安门西南方向
marker1 = new ImageMarker();
marker1.SetMarkerPosition(new Point(116.356329, 39.890534));
marker1.SetMarkerHeight(2.3f);
marker1.SetMarker(Resources.GetDrawable(Resource.Drawable.icon_marka));
marker1.TabMark += (s, e) =>
{
Toast.MakeText(this, "图片MarkerA标注已被点击", ToastLength.Short).Show();
}; // 天安门东北方向
marker2 = new ImageMarker();
marker2.SetMarkerPosition(new Point(116.427116, 39.929718));
marker2.SetMarker(Resources.GetDrawable(Resource.Drawable.icon_markb));
marker2.SetMarkerHeight();
marker2.TabMark += (s, e) =>
{
Toast.MakeText(this, "图片MarkerB标注已被点击", ToastLength.Short).Show();
};
mPanoView.AddMarker(marker1);
mPanoView.AddMarker(marker2);
} /// <summary>
/// 删除图片标注
/// </summary>
private void RemoveImageMarker()
{
mPanoView.RemoveMarker(marker1);
mPanoView.RemoveMarker(marker2);
} private TextMarker textMark1;
private TextMarker textMark2; /// <summary>
/// 添加文本标注
/// </summary>
private void AddTextMarker()
{
// 天安门西北方向
textMark1 = new TextMarker();
textMark1.SetMarkerPosition(new Point(116.399562, 39.916789));
textMark1.SetFontColor(Android.Graphics.Color.ParseColor("#FFFF0000").ToArgb());
textMark1.SetText("百度全景百度全景\nmap pano\n你好marker");
textMark1.SetFontSize();
textMark1.SetBgColor(Android.Graphics.Color.ParseColor("#FFFFFFFF").ToArgb());
textMark1.SetPadding(, , , );
textMark1.SetMarkerHeight(20.3f);
textMark1.TabMark += (s, e) =>
{
Toast.MakeText(this, "textMark1标注已被点击", ToastLength.Short).Show();
};
// 天安门东南方向
textMark2 = new TextMarker();
textMark2.SetMarkerPosition(new Point(116.409766, 39.911808));
textMark2.SetFontColor(Android.Graphics.Color.Red.ToArgb());
textMark2.SetText("你好marker");
textMark2.SetFontSize();
textMark2.SetBgColor(Android.Graphics.Color.Blue.ToArgb());
textMark2.SetPadding(, , , );
textMark2.SetMarkerHeight();
textMark2.TabMark += (s, e) =>
{
Toast.MakeText(this, "textMark2标注已被点击", ToastLength.Short).Show();
};
mPanoView.AddMarker(textMark1);
mPanoView.AddMarker(textMark2);
} /// <summary>
/// 删除文本标注
/// </summary>
private void RemoveTextMarker()
{
mPanoView.RemoveMarker(textMark1);
mPanoView.RemoveMarker(textMark2);
} protected override void OnPause()
{
mPanoView.OnPause();
base.OnPause();
} protected override void OnResume()
{
mPanoView.OnResume();
base.OnResume();
} protected override void OnDestroy()
{
mPanoView.Destroy();
mBMapManager.Dispose();
base.OnDestroy();
} public void OnGetPermissionState(int p0)
{
//由于MainActivity已经验证过key，所以此处不需要添加任何代码
}
}
}

using Android.App;
using Android.OS;
using Android.Views;
using Android.Widget;
using Com.Baidu.Lbsapi.Tools;namespace BdMapV371Demos.SrcSdkDemos
{
/// <summary>
/// 坐标转换
/// </summary>
[Activity(Label = "@string/demo_desc_panorama6")]
public class Demo20PanoCoordinate : Activity
{
private RadioGroup radioGroup;
private Button btn, btn_ll2mc, btn_mc2ll;
private TextView baiduResult, mcResult, llResult;
private EditText inputLat, inputLont;
// 百度经纬度坐标
Point resultPointLL = null;
// 百度墨卡托坐标
Point resultPointMC = null; protected override void OnCreate(Bundle savedInstanceState)
{
base.OnCreate(savedInstanceState);
RequestWindowFeature(WindowFeatures.NoTitle);
SetContentView(Resource.Layout.demo20_panodemo_coordinate); radioGroup = FindViewById<RadioGroup>(Resource.Id.panodemo_coordinate_rgroup);
btn = FindViewById<Button>(Resource.Id.panodemo_coordinate_btn);
btn_ll2mc = FindViewById<Button>(Resource.Id.panodemo_ll2mc_btn);
btn_mc2ll = FindViewById<Button>(Resource.Id.panodemo_mc2ll_btn);
baiduResult = FindViewById<TextView>(Resource.Id.panodemo_coordinate_result);
mcResult = FindViewById<TextView>(Resource.Id.panodemo_ll2mc_result);
llResult = FindViewById<TextView>(Resource.Id.panodemo_mc2ll_result);
inputLat = FindViewById<EditText>(Resource.Id.panodemo_coordinate_input_lat);
inputLont = FindViewById<EditText>(Resource.Id.panodemo_coordinate_input_lont); // 测试高德经纬度
inputLat.Text = "39.907687";
inputLont.Text = "116.397539";
// 测试腾讯经纬度
// inputLat.Text="39.907741");
// inputLont.Text="116.397577");
// 测试Google经纬度
// inputLat.Text="39.907723");
// inputLont.Text="116.397543");
// 测试原始GPS经纬度
// inputLat.Text="40.040286");
// inputLont.Text="116.30085");
btn.Click += delegate
{
if (string.IsNullOrEmpty(inputLat.Text) || string.IsNullOrEmpty(inputLont.Text))
{
Toast.MakeText(this, "请输入经纬度", ToastLength.Short).Show();
return;
} // 原始点经纬度
Point sourcePoint = new Com.Baidu.Lbsapi.Tools.Point(
double.Parse(inputLont.Text),
double.Parse(inputLat.Text));
switch (radioGroup.CheckedRadioButtonId)
{
case Resource.Id.panodemo_coordinate_rgaode:
resultPointLL = CoordinateConverter.Converter(CoordinateConverter.COOR_TYPE.CoorTypeGcj02, sourcePoint);
break;
case Resource.Id.panodemo_coordinate_rtencent:
resultPointLL = CoordinateConverter.Converter(CoordinateConverter.COOR_TYPE.CoorTypeGcj02, sourcePoint);
break;
case Resource.Id.panodemo_coordinate_rgoogle:
resultPointLL = CoordinateConverter.Converter(CoordinateConverter.COOR_TYPE.CoorTypeGcj02, sourcePoint);
break;
case Resource.Id.panodemo_coordinate_rgps:
resultPointLL = CoordinateConverter.Converter(CoordinateConverter.COOR_TYPE.CoorTypeWgs84, sourcePoint);
break;
default:
break;
} if (resultPointLL != null)
{
baiduResult.Text = "百度经纬度坐标:\nLatitude: " + resultPointLL.Y + "\nLongitude: " + resultPointLL.X;
btn_ll2mc.Visibility = ViewStates.Visible;
}
};
btn_ll2mc.Click += delegate
{
resultPointMC = CoordinateConverter.LLConverter2MC(resultPointLL.X, resultPointLL.Y);
int mercatorX = (int)resultPointMC.X;
int mercatorY = (int)resultPointMC.Y;
mcResult.Text = "百度墨卡托坐标:\nx: " + mercatorX + "\ny: " + mercatorY;
btn_mc2ll.Visibility = ViewStates.Visible;
};
btn_mc2ll.Click += delegate
{
Point llPoint = CoordinateConverter.MCConverter2LL(resultPointMC.X, resultPointMC.Y);
llResult.Text = "百度经纬度坐标:\nLatitude: " + llPoint.Y + "\nLongitude: " + llPoint.X;
};
}
}
}
