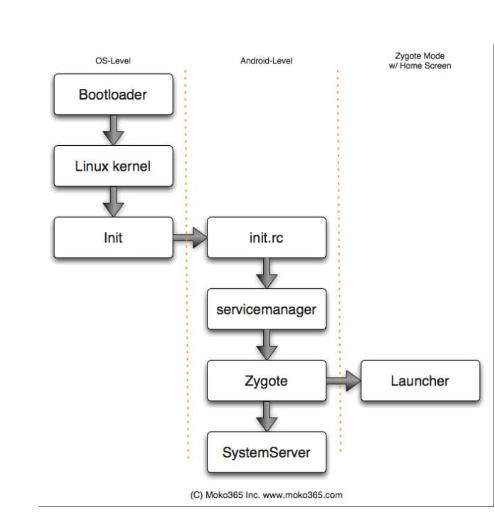

Android OS Startup

 init:@System/Core/Init

 Init.c: parse_config_file(Init.rc)  @parse_config_file(Init.marvel.rc)

 解析脚本文件：Init.rc和Init.xxxx.rc(硬件平台相关)

 Init.rc是Android自己规定的初始化脚本(Android Init Language, System/Core/Init/readme.txt)

 该脚本包含四个类型的声明： Actions, Commands, Services, Options.

 1.2 服务启动机制,我们来看看Init是这样解析.rc文件开启服务的。

 （）打开.rc文件，解析文件内容 @system/core/init/init.c

 将service信息放置到service_list中。@system/core/init/parser.c

 （）restart_service() @system/core/init/init.c

 service_start

 execve(…).建立service进程。

 export PATH /sbin:/system/sbin:/system/bin

 export LD_LIBRARY_PATH /system/lib

 mkdir /dev

 mkdir /proc

 mkdir /sys

 mount tmpfs tmpfs /dev

 mkdir /dev/pts

 mkdir /dev/socket

 mount devpts devpts /dev/pts

 mount proc proc /proc

 mount sysfs sysfs /sys

 write /proc/cpu/alignment

 ifup lo

 hostname localhost

 domainname localhost

 mount yaffs2 mtd@system /system

 mount yaffs2 mtd@userdata /data

 import /system/etc/init.conf

 class_start default

 service adbd /sbin/adbd

 user adb

 group adb

 service usbd /system/bin/usbd -r

 user usbd

 group usbd

 socket usbd

 service zygote /system/bin/app_process -Xzygote /system/bin --zygote

 socket zygote

 service runtime /system/bin/runtime

 user system

 group system

 on device-added-/dev/compass

 start akmd

 on device-removed-/dev/compass

 stop akmd

 service akmd /sbin/akmd

 disabled

 user akmd

 group akmd

 Zygote

 // @system\core\rootdir\init.rc

 service zygote /system/bin/app_process -Xzygote /system/bin --zygote --start-system-server

 socket zygote stream

 onrestart write /sys/android_power/request_state wake

 onrestart write /sys/power/state on

 onrestart restart media

 /**

  * Main entry of app process.

  *

  * Starts the interpreted runtime, then starts up the application.

  *

  */

 #define LOG_TAG "appproc"

 #include <binder/IPCThreadState.h>

 #include <binder/ProcessState.h>

 #include <utils/Log.h>

 #include <cutils/process_name.h>

 #include <cutils/memory.h>

 #include <android_runtime/AndroidRuntime.h>

 #include <stdio.h>

 #include <unistd.h>

 namespace android {

 void app_usage()

 {

     fprintf(stderr,

         "Usage: app_process [java-options] cmd-dir start-class-name [options]\n");

 }

 class AppRuntime : public AndroidRuntime

 {

 public:

     AppRuntime()

         : mParentDir(NULL)

         , mClassName(NULL)

         , mClass(NULL)

         , mArgC(0)

         , mArgV(NULL)

     {

     }

 #if 0

     // this appears to be unused

     const char* getParentDir() const

     {

         return mParentDir;

     }

 #endif

     const char* getClassName() const

     {

         return mClassName;

     }

     virtual void onVmCreated(JNIEnv* env)

     {

         if (mClassName == NULL) {

             return; // Zygote. Nothing to do here.

         }

         /**

          * This is a little awkward because the JNI FindClass call uses the

          * class loader associated with the native method we're executing in.

          * If called in onStarted (from RuntimeInit.finishInit because we're

          * launching "am", for example), FindClass would see that we're calling

          * from a boot class' native method, and so wouldn't look for the class

          * we're trying to look up in CLASSPATH. Unfortunately it needs to,

          * because the "am" classes are not boot classes.

          *

          * The easiest fix is to call FindClass here, early on before we start

          * executing boot class Java code and thereby deny ourselves access to

          * non-boot classes.

          */

         char* slashClassName = toSlashClassName(mClassName);

         mClass = env->FindClass(slashClassName);

         if (mClass == NULL) {

             LOGE("ERROR: could not find class '%s'\n", mClassName);

         }

         free(slashClassName);

         mClass = reinterpret_cast<jclass>(env->NewGlobalRef(mClass));

     }

     virtual void onStarted()

     {

         sp<ProcessState> proc = ProcessState::self();

         LOGV("App process: starting thread pool.\n");

         proc->startThreadPool();

         AndroidRuntime* ar = AndroidRuntime::getRuntime();

         ar->callMain(mClassName, mClass, mArgC, mArgV);

         IPCThreadState::self()->stopProcess();

     }

     virtual void onZygoteInit()

     {

         sp<ProcessState> proc = ProcessState::self();

         LOGV("App process: starting thread pool.\n");

         proc->startThreadPool();

     }

     virtual void onExit(int code)

     {

         if (mClassName == NULL) {

             // if zygote

             IPCThreadState::self()->stopProcess();

         }

         AndroidRuntime::onExit(code);

     }

     const char* mParentDir;

     const char* mClassName;

     jclass mClass;

     int mArgC;

     const char* const* mArgV;

 };

 }

 using namespace android;

 /**

  * sets argv0 to as much of newArgv0 as will fit

  */

 static void setArgv0(const char *argv0, const char *newArgv0)

 {

     strlcpy(const_cast<char *>(argv0), newArgv0, strlen(argv0));

 }

 int main(int argc, const char* const argv[])

 {

     // These are global variables in ProcessState.cpp

     mArgC = argc;

     mArgV = argv;

     mArgLen = 0;

     for (int i=0; i<argc; i++) {

         mArgLen += strlen(argv[i]) + 1;

     }

     mArgLen--;

     AppRuntime runtime;

     const char* argv0 = argv[0];

     // Process command line arguments

     // ignore argv[0]

     argc--;

     argv++;

     // Everything up to '--' or first non '-' arg goes to the vm

     int i = runtime.addVmArguments(argc, argv);

     // Parse runtime arguments.  Stop at first unrecognized option.

     bool zygote = false;

     bool startSystemServer = false;

     bool application = false;

     const char* parentDir = NULL;

     const char* niceName = NULL;

     const char* className = NULL;

     while (i < argc) {

         const char* arg = argv[i++];

         if (!parentDir) {

             parentDir = arg;

         } else if (strcmp(arg, "--zygote") == 0) {

             zygote = true;

             niceName = "zygote";

         } else if (strcmp(arg, "--start-system-server") == 0) {

             startSystemServer = true;

         } else if (strcmp(arg, "--application") == 0) {

             application = true;

         } else if (strncmp(arg, "--nice-name=", 12) == 0) {

             niceName = arg + 12;

         } else {

             className = arg;

             break;

         }

     }

     if (niceName && *niceName) {

         setArgv0(argv0, niceName);

         set_process_name(niceName);

     }

     runtime.mParentDir = parentDir;

     if (zygote) {

         runtime.start("com.android.internal.os.ZygoteInit",

                 startSystemServer ? "start-system-server" : "");

     } else if (className) {

         // Remainder of args get passed to startup class main()

         runtime.mClassName = className;

         runtime.mArgC = argc - i;

         runtime.mArgV = argv + i;

         runtime.start("com.android.internal.os.RuntimeInit",

                 application ? "application" : "tool");

     } else {

         fprintf(stderr, "Error: no class name or --zygote supplied.\n");

         app_usage();

         LOG_ALWAYS_FATAL("app_process: no class name or --zygote supplied.");

         return 10;

     }

 }

app_main

 // @system\core\rootdir\init.rc

 service zygote /system/bin/app_process -Xzygote /system/bin --zygote --start-system-server

 socket zygote stream

 onrestart write /sys/android_power/request_state wake

 onrestart write /sys/power/state on

 onrestart restart media

 public static void main(String argv[])

 {

     try {

         // Start profiling the zygote initialization.

         SamplingProfilerIntegration.start();

         registerZygoteSocket();

         EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_START,SystemClock.uptimeMillis());

         preload();

         EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_END,SystemClock.uptimeMillis());

         // Finish profiling the zygote initialization.

         SamplingProfilerIntegration.writeZygoteSnapshot();

         // Do an initial gc to clean up after startup

         gc();

         // If requested, start system server directly from Zygote

         if (argv.length != 2) {

             throw new RuntimeException(argv[0] + USAGE_STRING);

         }

         if (argv[1].equals("start-system-server")) {

             startSystemServer();

         } else if (!argv[1].equals("")) {

             throw new RuntimeException(argv[0] + USAGE_STRING);

         }

         Log.i(TAG, "Accepting command socket connections");

         if (ZYGOTE_FORK_MODE) {

             runForkMode();

         } else {

             runSelectLoopMode();

         }

         closeServerSocket();

     } catch (MethodAndArgsCaller caller) {

         caller.run();

     } catch (RuntimeException ex) {

         Log.e(TAG, "Zygote died with exception", ex);

         closeServerSocket();

         throw ex;

     }

 }

 private static boolean startSystemServer() throws MethodAndArgsCaller, RuntimeException

 {

     /* Hardcoded command line to start the system server */

     String args[] = {

         "--setuid=1000",

         "--setgid=1000",

         "--setgroups=1001,1002,1003,1004,1005,1006,1007,1008,1009,1010,1018,3001,3002,3003,3006,3007",

         "--capabilities=130104352,130104352",

         "--runtime-init",

         "--nice-name=system_server",

         "com.android.server.SystemServer",

     };

     ZygoteConnection.Arguments parsedArgs = null;

     int pid;

     try {

         parsedArgs = new ZygoteConnection.Arguments(args);

         ZygoteConnection.applyDebuggerSystemProperty(parsedArgs);

         ZygoteConnection.applyInvokeWithSystemProperty(parsedArgs);

         /* Request to fork the system server process */

         pid = Zygote.forkSystemServer(parsedArgs.uid, parsedArgs.gid,

                                       parsedArgs.gids,

                                       parsedArgs.debugFlags,

                                       null,

                                       parsedArgs.permittedCapabilities,

                                       parsedArgs.effectiveCapabilities);

     }

     catch (IllegalArgumentException ex)

     {

         throw new RuntimeException(ex);

     }

     /* For child process */

     if (pid == 0) {

         handleSystemServerProcess(parsedArgs);

     }

     return true;

 }

 //@dalvik.system.Zygote.java

 public static int forkSystemServer(int uid, int gid, int[] gids,int debugFlags, int[][] rlimits,long permittedCapabilities, long effectiveCapabilities)

 {

     preFork();

     //call native method to fork a process of system server which is mappged to linux process

     int pid = nativeForkSystemServer(uid, gid, gids, debugFlags, rlimits,

                                      permittedCapabilities,

                                      effectiveCapabilities);

     postFork();

     return pid;

 }

 public static void main(String[] args)

 {

     if (System.currentTimeMillis() < EARLIEST_SUPPORTED_TIME) {

         // If a device's clock is before 1970 (before 0), a lot of

         // APIs crash dealing with negative numbers, notably

         // java.io.File#setLastModified, so instead we fake it and

         // hope that time from cell towers or NTP fixes it

         // shortly.

         Slog.w(TAG, "System clock is before 1970; setting to 1970.");

         SystemClock.setCurrentTimeMillis(EARLIEST_SUPPORTED_TIME);

     }

     if (SamplingProfilerIntegration.isEnabled()) {

         SamplingProfilerIntegration.start();

         timer = new Timer();

         timer.schedule(new TimerTask()

             {

              @Override

              public void run() {

                 SamplingProfilerIntegration.writeSnapshot("system_server", null);

             }

         }, SNAPSHOT_INTERVAL, SNAPSHOT_INTERVAL);

     }

     // Mmmmmm... more memory!

     dalvik.system.VMRuntime.getRuntime().clearGrowthLimit();

     // The system server has to run all of the time, so it needs to be

     // as efficient as possible with its memory usage.

     VMRuntime.getRuntime().setTargetHeapUtilization(0.8f);

System.loadLibrary("android_servers");//load android_servers.so

    init1(args);

 }

 /***

  * This method is called from Zygote to initialize the system. This will cause the native

  * services (SurfaceFlinger, AudioFlinger, etc..) to be started. After that it will call back

  * up into init2() to start the Android services.

  */

 native public static void init1(String[] args);

 public static final void init2() {

     Slog.i(TAG, "Entered the Android system server!");

     Thread thr = new ServerThread();

     thr.setName("android.server.ServerThread");

     thr.start();

 }

 //@com.android.server.SystemService

 class ServerThread extends Thread

 {

     ......

     @Override

     public void run()

     {

         ...............................

         Looper.prepare();

         android.os.Process.setThreadPriority(android.os.Process.THREAD_PRIORITY_FOREGROUND);

         BinderInternal.disableBackgroundScheduling(true);

         android.os.Process.setCanSelfBackground(false);

         // Check whether we failed to shut down last time we tried.

         {

             ....................

         }

         String factoryTestStr = SystemProperties.get("ro.factorytest");

         int factoryTest = "".equals(factoryTestStr) ? SystemServer.FACTORY_TEST_OFF

                 : Integer.parseInt(factoryTestStr);

         .......//declare all native service object.

         // Critical services...add all service into list of service manager

         try {

             Slog.i(TAG, "Entropy Service");

             ServiceManager.addService("entropy", new EntropyService());

             power = new PowerManagerService();

             ServiceManager.addService(Context.POWER_SERVICE, power);

             context = ActivityManagerService.main(factoryTest);

             ServiceManager.addService("telephony.registry", new TelephonyRegistry(context));

             AttributeCache.init(context);

             ........................

             alarm = new AlarmManagerService(context);

             ServiceManager.addService(Context.ALARM_SERVICE, alarm);

             Watchdog.getInstance().init(context, battery, power, alarm,ActivityManagerService.self());

             Slog.i(TAG, "Window Manager");

             wm = WindowManagerService.main(context, power,factoryTest != SystemServer.FACTORY_TEST_LOW_LEVEL,!firstBoot);

             ServiceManager.addService(Context.WINDOW_SERVICE, wm);

             ActivityManagerService.self().setWindowManager(wm);

             .......................

         } catch (RuntimeException e) {

         }

         .............................

         // Bring up services needed for UI.

         if (factoryTest != SystemServer.FACTORY_TEST_LOW_LEVEL)

         {

             try {

                 Slog.i(TAG, "Input Method Service");

                 imm = new InputMethodManagerService(context);

                 ServiceManager.addService(Context.INPUT_METHOD_SERVICE, imm);

             } catch (Throwable e) {

                 reportWtf("starting Input Manager Service", e);

             }

            .......................

         }

         try {

             wm.displayReady();

         } catch (Throwable e) {

             reportWtf("making display ready", e);

         }

         try {

             pm.performBootDexOpt();

         } catch (Throwable e) {

             reportWtf("performing boot dexopt", e);

         }

         try {

             ActivityManagerNative.getDefault().showBootMessage(context.getResources().getText(

                                         com.android.internal.R.string.android_upgrading_starting_apps),

                                        false);

         } catch (RemoteException e) {

         }

         if (factoryTest != SystemServer.FACTORY_TEST_LOW_LEVEL) {

             try {

                 Slog.i(TAG, "Device Policy");

                 devicePolicy = new DevicePolicyManagerService(context);

                 ServiceManager.addService(Context.DEVICE_POLICY_SERVICE, devicePolicy);

             } catch (Throwable e) {

                 reportWtf("starting DevicePolicyService", e);

             }

             ....................

            try {

                 Slog.i(TAG, "Wi-Fi Service");

                 wifi = new WifiService(context);

                 ServiceManager.addService(Context.WIFI_SERVICE, wifi);

             } catch (Throwable e) {

                 reportWtf("starting Wi-Fi Service", e);

             }

            ....................

            try {

                 Slog.i(TAG, "NetworkTimeUpdateService");

                 networkTimeUpdater = new NetworkTimeUpdateService(context);

             } catch (Throwable e) {

                 reportWtf("starting NetworkTimeUpdate service", e);

             }

         }

         // Before things start rolling, be sure we have decided whether

         // we are in safe mode.

         final boolean safeMode = wm.detectSafeMode();

         if (safeMode) {

             ActivityManagerService.self().enterSafeMode();

             // Post the safe mode state in the Zygote class

             Zygote.systemInSafeMode = true;

             // Disable the JIT for the system_server process

             VMRuntime.getRuntime().disableJitCompilation();

         } else {

             // Enable the JIT for the system_server process

             VMRuntime.getRuntime().startJitCompilation();

         }

         // It is now time to start up the app processes...

         if (devicePolicy != null) {

             try {

                 devicePolicy.systemReady();

             } catch (Throwable e) {

                 reportWtf("making Device Policy Service ready", e);

             }

         }

         if (notification != null) {

             try {

                 notification.systemReady();

             } catch (Throwable e) {

                 reportWtf("making Notification Service ready", e);

             }

         }

         try {

             wm.systemReady();

         } catch (Throwable e) {

             reportWtf("making Window Manager Service ready", e);

         }

         if (safeMode) {

             ActivityManagerService.self().showSafeModeOverlay();

         }

         // Update the configuration for this context by hand, because we're going

         // to start using it before the config change done in wm.systemReady() will

         // propagate to it.

         ..................................

         power.systemReady();

         try {

             pm.systemReady();

         } catch (Throwable e) {

             reportWtf("making Package Manager Service ready", e);

         }

         // These are needed to propagate to the runnable below.

         final Context contextF = context;

         final BatteryService batteryF = battery;

         .........................

         // We now tell the activity manager it is okay to run third party

         // code.  It will call back into us once it has gotten to the state

         // where third party code can really run (but before it has actually

         // started launching the initial applications), for us to complete our

         // initialization.

         ActivityManagerService.self().systemReady(new Runnable() {

             public void run() {

                 Slog.i(TAG, "Making services ready");

                 startSystemUi(contextF);

                 try {

                     if (batteryF != null) batteryF.systemReady();

                 } catch (Throwable e) {

                     reportWtf("making Battery Service ready", e);

                 }

                 .....................

                 try {

                     if (textServiceManagerServiceF != null) textServiceManagerServiceF.systemReady();

                 } catch (Throwable e) {

                     reportWtf("making Text Services Manager Service ready", e);

                 }

             }

         });

         // For debug builds, log event loop stalls to dropbox for analysis.

         if (StrictMode.conditionallyEnableDebugLogging()) {

             Slog.i(TAG, "Enabled StrictMode for system server main thread.");

         }

         Looper.loop();

         Slog.d(TAG, "System ServerThread is exiting!");

     }

     static final void startSystemUi(Context context) {

         Intent intent = new Intent();

         intent.setComponent(new ComponentName("com.android.systemui",

                     "com.android.systemui.SystemUIService"));

         Slog.d(TAG, "Starting service: " + intent);

         context.startService(intent);

     }

 }
