一．前言

申明：WPF自定义控件与样式是一个系列文章，前后是有些关联的，但大多是按照由简到繁的顺序逐步发布的等。

本文主要内容：

下拉选择控件ComboBox的自定义样式及扩展；
自定义多选控件MultiComboBox；

二．下拉选择控件ComboBox的自定义样式及扩展

2.1基本样式

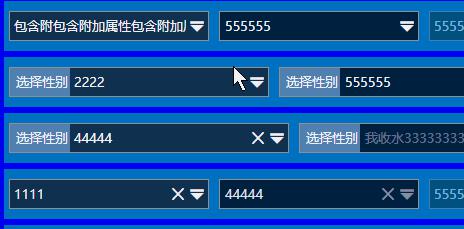

先看看基础效果图：

从功能上ComboBox有两种状态：

- 可编辑文本；
- 不可编辑文本。

从XAML的逻辑树结构上看，分为几个部分：

显示当前内容的区域；
下拉按钮，一般使用ToggleButton；
弹出的下拉选项列表，使用Popup作为容器；

样式定义代码：

<Style TargetType="ComboBoxItem" x:Key="ComboBoxItemStyle">
<Setter Property="HorizontalContentAlignment" Value="Stretch" />
<Setter Property="VerticalContentAlignment" Value="Center" />
<Setter Property="RenderOptions.ClearTypeHint" Value="Enabled" />
<Setter Property="BorderThickness" Value="0" />
<Setter Property="Height" Value="28" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="ComboBoxItem">
<Grid Background="{TemplateBinding Background}" Margin="0,0.5">
<Border x:Name="ItemBackground" IsHitTestVisible="False" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"
BorderThickness="{TemplateBinding BorderThickness}" BorderBrush="{TemplateBinding BorderBrush}"
Background="{TemplateBinding Background}" />
<ContentPresenter x:Name="contentPresenter" Margin="{TemplateBinding Padding}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"
HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" />
</Grid>
<ControlTemplate.Triggers>
<Trigger Property="IsSelected" Value="True">
<Setter TargetName="ItemBackground" Property="Background" Value="{StaticResource ItemSelectedBackground}" />
</Trigger>
<Trigger Property="IsMouseOver" Value="True">
<Setter TargetName="ItemBackground" Property="Background" Value="{StaticResource ItemMouseOverBackground}" />
</Trigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>






<Style TargetType="{x:Type ComboBox}" x:Key="DefaultComboBox">
<Setter Property="Height" Value="30" />
<Setter Property="Width" Value="200" />
<Setter Property="Foreground" Value="{StaticResource TextForeground}" />
<Setter Property="Background" Value="{StaticResource TextBackground}" />
<Setter Property="HorizontalContentAlignment" Value="Stretch" />
<Setter Property="VerticalContentAlignment" Value="Center" />
<Setter Property="BorderThickness" Value="1" />
<Setter Property="BorderBrush" Value="{StaticResource ControlBorderBrush}" />
<Setter Property="local:ControlAttachProperty.FocusBackground" Value="{StaticResource FocusBackground}" />
<Setter Property="local:ControlAttachProperty.FocusBorderBrush" Value="{StaticResource FocusBorderBrush}" />
<Setter Property="local:ControlAttachProperty.MouseOverBorderBrush" Value="{StaticResource MouseOverBorderBrush}" />
<Setter Property="FontFamily" Value="{StaticResource FontFamily}" />
<Setter Property="FontSize" Value="{StaticResource FontSize}" />
<Setter Property="ItemContainerStyle" Value="{StaticResource ComboBoxItemStyle}" />
<Setter Property="SnapsToDevicePixels" Value="True" />
<Setter Property="MaxDropDownHeight" Value="400" />
<Setter Property="ScrollViewer.CanContentScroll" Value="False" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type ComboBox}">
<Grid x:Name="PART_Root">
<Border x:Name="Bg" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"
CornerRadius="{TemplateBinding local:ControlAttachProperty.CornerRadius}"
BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" />
<Grid>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="Auto" />
<ColumnDefinition Width="*" />
<ColumnDefinition Width="Auto" />
<ColumnDefinition Width="21" />
</Grid.ColumnDefinitions>

<ContentControl x:Name="Label" Template="{TemplateBinding local:ControlAttachProperty.LabelTemplate}" IsTabStop="False" IsHitTestVisible="False"
Content="{TemplateBinding local:ControlAttachProperty.Label}" Margin="1,1,0,1"/>

<Border x:Name="PART_AttachContent" Panel.ZIndex="2" Grid.Column="2" VerticalAlignment="Center" HorizontalAlignment="Center" >
<ContentControl VerticalAlignment="Center" VerticalContentAlignment="Center" Template="{TemplateBinding local:ControlAttachProperty.AttachContent}" />
</Border>

<ToggleButton x:Name="PART_DropDownToggle" IsTabStop="False" Style="{StaticResource ComboToggleButton}"
IsChecked="{Binding IsDropDownOpen, Mode=TwoWay, RelativeSource={RelativeSource TemplatedParent}}"
Grid.Column="1" Grid.ColumnSpan="3" IsEnabled="{Binding Path=IsReadOnly,RelativeSource={RelativeSource TemplatedParent},
Converter={x:Static local:XConverter.TrueToFalseConverter},Mode=OneWay}"
Background="{TemplateBinding local:ControlAttachProperty.FocusBackground}"/>

<Border Grid.Column="1">
<TextBlock x:Name="Message" Padding="0" Visibility="Collapsed" Text="{TemplateBinding local:ControlAttachProperty.Watermark}"
Foreground="{TemplateBinding Foreground}" IsHitTestVisible="False" Opacity="{StaticResource WatermarkOpacity}" HorizontalAlignment="Left" TextAlignment="Center"
VerticalAlignment="Center" Margin="5,2,5,2" />
</Border>

<Grid Grid.Column="1" x:Name="ContentSite" Margin="2 0 0 0" >
<ContentPresenter x:Name="PART_SelectedItem" ContentTemplate="{TemplateBinding SelectionBoxItemTemplate}"
ContentTemplateSelector="{TemplateBinding ItemTemplateSelector}"
Content="{TemplateBinding SelectionBoxItem}" ContentStringFormat="{TemplateBinding SelectionBoxItemStringFormat}"
HorizontalAlignment="Stretch" Margin="2,0,2,0"
IsHitTestVisible="False" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"
VerticalAlignment="{TemplateBinding VerticalContentAlignment}" />

<TextBox x:Name="PART_EditableTextBox" Style="{StaticResource EditableTextBoxStyle}" Visibility="Collapsed"
HorizontalAlignment="Stretch" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" IsHitTestVisible="True"
HorizontalContentAlignment="{TemplateBinding HorizontalContentAlignment}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"
IsReadOnly="{TemplateBinding IsReadOnly}" FontFamily="{TemplateBinding FontFamily}" Foreground="{TemplateBinding Foreground}"
Text="{TemplateBinding Text}" FontSize="{TemplateBinding FontSize}" />
</Grid>
</Grid>

<Popup x:Name="PART_Popup" AllowsTransparency="True" Focusable="False"
IsOpen="{Binding IsDropDownOpen, RelativeSource={RelativeSource TemplatedParent}}"
PopupAnimation="{DynamicResource {x:Static SystemParameters.ComboBoxPopupAnimationKey}}" Placement="Bottom">
<Grid Width="{Binding ActualWidth, RelativeSource={RelativeSource TemplatedParent}}"
MaxHeight="{Binding MaxDropDownHeight, RelativeSource={RelativeSource TemplatedParent}}">
<Border x:Name="PopupBorder" BorderThickness="{TemplateBinding BorderThickness}" HorizontalAlignment="Stretch"
Height="Auto" BorderBrush="{TemplateBinding BorderBrush}"
Background="{StaticResource PopupBackground}">
</Border>
<ScrollViewer x:Name="DropDownScrollViewer" BorderThickness="0" Margin="1">
<ItemsPresenter x:Name="ItemsPresenter" KeyboardNavigation.DirectionalNavigation="Contained" />
</ScrollViewer>
</Grid>
</Popup>
</Grid>

<ControlTemplate.Triggers>

<DataTrigger Binding="{Binding RelativeSource={RelativeSource Self}, Path=Text}" Value="">
<Setter TargetName="Message" Property="Visibility" Value="Visible" />
</DataTrigger>

<Trigger Property="IsEditable" Value="True">
<Setter TargetName="PART_EditableTextBox" Property="Visibility" Value="Visible" />
<Setter TargetName="PART_SelectedItem" Property="Visibility" Value="Collapsed" />
<Setter TargetName="PART_DropDownToggle" Property="Grid.Column" Value="3" />
<Setter TargetName="PART_DropDownToggle" Property="Grid.ColumnSpan" Value="1" />
<Setter TargetName="PART_DropDownToggle" Property="Background" Value="Transparent" />
<Setter Property="IsTabStop" Value="false" />
<Setter TargetName="PART_DropDownToggle" Property="Focusable" Value="False" />
</Trigger> <Trigger Property="IsMouseOver" Value="True">
<Setter Property="BorderBrush" Value="{Binding Path=(local:ControlAttachProperty.MouseOverBorderBrush),RelativeSource={RelativeSource Self}}"/>
</Trigger>
<Trigger Property="IsFocused" Value="True">
<Setter Property="BorderBrush" Value="{Binding Path=(local:ControlAttachProperty.FocusBorderBrush),RelativeSource={RelativeSource Self}}"/>
</Trigger>
<Trigger Property="IsKeyboardFocusWithin" Value="True">
<Setter Property="BorderBrush" Value="{Binding Path=(local:ControlAttachProperty.FocusBorderBrush),RelativeSource={RelativeSource Self}}"/>
</Trigger>
<Trigger Property="IsEnabled" Value="False">
<Setter TargetName="PART_Root" Property="Opacity" Value="{StaticResource DisableOpacity}"></Setter>
</Trigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>

如果看过本系列前面的文章，对上面的代码就更容易理解了，为了方便支持水印、Label标签、清除内容功能扩展，在基础样式里加了额外的部分，在xaml中有注释说明。

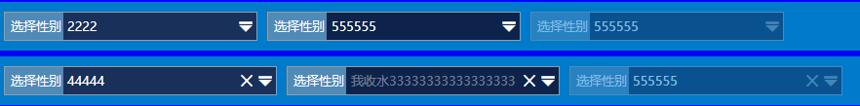

2.2 Label标签样式

效果图：

在2.1的基础样式上扩展即可：

<Style TargetType="{x:Type ComboBox}" x:Key="LabelComboBox" BasedOn="{StaticResource DefaultComboBox}">
<Setter Property="Width" Value="260"></Setter>
<Setter Property="local:ControlAttachProperty.LabelTemplate" >
<Setter.Value>
<ControlTemplate TargetType="ContentControl">
<Border Width="60" Background="{StaticResource TextLabelBackground}">
<TextBlock VerticalAlignment="Center" HorizontalAlignment="Right" Margin="2" Text="{TemplateBinding Content}"></TextBlock>
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>

使用示例：

2.3 扩展清除选中项/文本按钮样式

效果图：

同样，也是在2.1的基础样式上扩展：

<Style TargetType="{x:Type ComboBox}" x:Key="ClearButtonComboBox" BasedOn="{StaticResource DefaultComboBox}">
<Setter Property="local:ControlAttachProperty.AttachContent">
<Setter.Value>
<ControlTemplate>
<local:FButton FIcon="" Style="{StaticResource FButton_Transparency}" IsTabStop="False" FIconMargin="0"
local:ControlAttachProperty.IsClearTextButtonBehaviorEnabled="True" Command="local:ControlAttachProperty.ClearTextCommand"
CommandParameter="{Binding RelativeSource={RelativeSource FindAncestor,AncestorType={x:Type ComboBox}}}"
IsEnabled="{Binding Path=IsReadOnly,RelativeSource={RelativeSource FindAncestor,AncestorType={x:Type ComboBox}},
Converter={x:Static local:XConverter.TrueToFalseConverter},Mode=OneWay}"
Margin="1,3,0,4" FIconSize="14" Foreground="{StaticResource TextForeground}" Cursor="Arrow"/>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>

<Style TargetType="{x:Type ComboBox}" x:Key="LabelClearButtonComboBox" BasedOn="{StaticResource DefaultComboBox}">
<Setter Property="Width" Value="280"></Setter>
<Setter Property="local:ControlAttachProperty.LabelTemplate" >
<Setter.Value>
<ControlTemplate TargetType="ContentControl">
<Border Width="60" Background="{StaticResource TextLabelBackground}">
<TextBlock VerticalAlignment="Center" HorizontalAlignment="Right" Margin="2" Text="{TemplateBinding Content}"></TextBlock>
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
<Setter Property="local:ControlAttachProperty.AttachContent">
<Setter.Value>
<ControlTemplate>
<local:FButton FIcon="" Style="{StaticResource FButton_Transparency}" IsTabStop="False" FIconMargin="0"
local:ControlAttachProperty.IsClearTextButtonBehaviorEnabled="True" Command="local:ControlAttachProperty.ClearTextCommand"
CommandParameter="{Binding RelativeSource={RelativeSource FindAncestor,AncestorType={x:Type ComboBox}}}"
IsEnabled="{Binding Path=IsReadOnly,RelativeSource={RelativeSource FindAncestor,AncestorType={x:Type ComboBox}},
Converter={x:Static local:XConverter.TrueToFalseConverter},Mode=OneWay}"
Margin="0,3,0,4" FIconSize="14" Foreground="{StaticResource TextForeground}" Cursor="Arrow"/>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>

使用示例：

三．自定义多选控件MultiComboBox

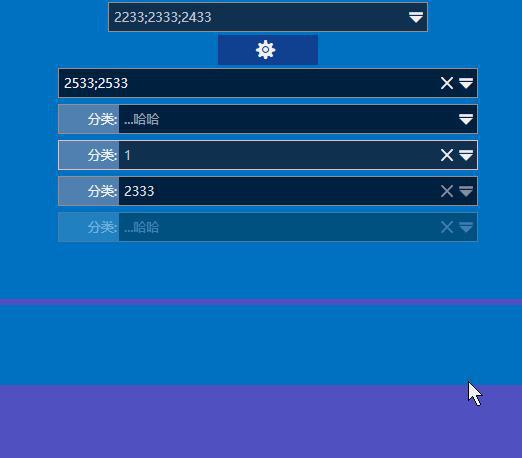

实际需求中，经常有多选的要求，基于ComboBox简单的实现了一个多选控件MultiComboBox。效果图：

在功能上，可以满足基本需求，实际功能还不完整的，可以根据自己的需求完善，后台C#代码：

/// <summary>
/// MultiComboBox.xaml 的交互逻辑
/// </summary>
[TemplatePart(Name = "PART_ListBox", Type = typeof(ListBox))]
public partial class MultiComboBox : ComboBox
{
/// <summary>
/// 获取选择项集合
/// </summary>
public IList SelectedItems
{
get { return this._ListBox.SelectedItems; }
} /// <summary>
/// 设置或获取选择项
/// </summary>
public new int SelectedIndex
{
get { return this._ListBox.SelectedIndex; }
set { this._ListBox.SelectedIndex = value; }
} private ListBox _ListBox; public override void OnApplyTemplate()
{
base.OnApplyTemplate();
this._ListBox = Template.FindName("PART_ListBox", this) as ListBox;
this._ListBox.SelectionChanged += _ListBox_SelectionChanged;
} void _ListBox_SelectionChanged(object sender, SelectionChangedEventArgs e)
{
StringBuilder sb = new StringBuilder();
foreach (var item in this.SelectedItems)
{
sb.Append(item.ToString()).Append(";");
}
this.Text = sb.ToString().TrimEnd(';');
} static MultiComboBox()
{
//OverridesDefaultStyleProperty.OverrideMetadata(typeof(MultiComboBox), new FrameworkPropertyMetadata(typeof(MultiComboBox)));
} public MultiComboBox()
{
ListBox ls = new ListBox();
//ls.SelectedItems
} public void SelectAll()
{
this._ListBox.SelectAll(); } public void UnselectAll()
{
this._ListBox.UnselectAll();
}
}

样式上，也实现了同第二节一样的扩展，包括支持水印、Label标签、清除内容功能扩展，就不做具体介绍了，基础样式代码：

<Style x:Key="CheckItemStyle" TargetType="{x:Type ListBoxItem}" >
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type ListBoxItem}" >
<Border x:Name="Border" Background="{TemplateBinding Background}" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}">
<StackPanel Orientation="Horizontal" VerticalAlignment="Center">
<CheckBox IsChecked="{Binding Path=IsSelected,RelativeSource={RelativeSource TemplatedParent},Mode=TwoWay}">
<ContentPresenter Margin="{TemplateBinding Padding}" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"
HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}" />
</CheckBox>
</StackPanel>
</Border>
<ControlTemplate.Triggers>

<Trigger Property="IsMouseOver" Value="True">
<Setter TargetName="Border" Property="Background" Value="{StaticResource ItemMouseOverBackground}" />
<Setter Property="Foreground" Value="{StaticResource ItemMouseOverForeground}" />
</Trigger>
<Trigger Property="IsEnabled" Value="False">
<Setter TargetName="Border" Property="Opacity" Value="{StaticResource DisableOpacity}" />
</Trigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style x:Key="DefaultMultiComboBox" TargetType="{x:Type local:MultiComboBox}">
<Setter Property="Height" Value="30" />
<Setter Property="Width" Value="200" />
<Setter Property="Foreground" Value="{StaticResource TextForeground}" />
<Setter Property="Background" Value="{StaticResource TextBackground}" />
<Setter Property="HorizontalContentAlignment" Value="Stretch" />
<Setter Property="VerticalContentAlignment" Value="Center" />
<Setter Property="BorderThickness" Value="1" />
<Setter Property="BorderBrush" Value="{StaticResource ControlBorderBrush}" />
<Setter Property="local:ControlAttachProperty.FocusBackground" Value="{StaticResource FocusBackground}" />
<Setter Property="local:ControlAttachProperty.FocusBorderBrush" Value="{StaticResource FocusBorderBrush}" />
<Setter Property="local:ControlAttachProperty.MouseOverBorderBrush" Value="{StaticResource MouseOverBorderBrush}" />
<Setter Property="FontFamily" Value="{StaticResource FontFamily}" />
<Setter Property="FontSize" Value="{StaticResource FontSize}" />
<Setter Property="SnapsToDevicePixels" Value="True" />
<Setter Property="MaxDropDownHeight" Value="400" />
<Setter Property="ScrollViewer.CanContentScroll" Value="False" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type local:MultiComboBox}">
<Grid x:Name="PART_Root">
<Border x:Name="Bg" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"
BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}"
Background="{TemplateBinding Background}" />
<Grid x:Name="PART_InnerGrid" Margin="0">
<Grid.ColumnDefinitions>
<ColumnDefinition Width="Auto" />
<ColumnDefinition Width="*" />
<ColumnDefinition Width="Auto" />
<ColumnDefinition Width="21" />
</Grid.ColumnDefinitions>

<ContentControl x:Name="Label" Template="{TemplateBinding local:ControlAttachProperty.LabelTemplate}" IsTabStop="False" IsHitTestVisible="False"
Content="{TemplateBinding local:ControlAttachProperty.Label}" Margin="1,1,0,1"/>

<Border x:Name="PART_AttachContent" Panel.ZIndex="2" Grid.Column="2" VerticalAlignment="Center" HorizontalAlignment="Center" >
<ContentControl VerticalAlignment="Center" VerticalContentAlignment="Center" Template="{TemplateBinding local:ControlAttachProperty.AttachContent}" />
</Border>

<ToggleButton x:Name="PART_DropDownToggle" Panel.ZIndex="1" IsTabStop="False" Style="{StaticResource ComboToggleButton}"
IsChecked="{Binding IsDropDownOpen, Mode=TwoWay, RelativeSource={RelativeSource TemplatedParent}}"
Grid.Column="1" Grid.ColumnSpan="3" IsEnabled="{Binding Path=IsReadOnly,RelativeSource={RelativeSource TemplatedParent},
Converter={x:Static local:XConverter.TrueToFalseConverter},Mode=OneWay}"
Background="{TemplateBinding local:ControlAttachProperty.FocusBackground}"/>

<Border Grid.Column="1">
<TextBlock x:Name="Message" Padding="0" Visibility="Collapsed" Text="{TemplateBinding local:ControlAttachProperty.Watermark}"
Foreground="{TemplateBinding Foreground}" IsHitTestVisible="False" Opacity="0.6" HorizontalAlignment="Left" TextAlignment="Center"
VerticalAlignment="Center" Margin="5,2,5,2" />
</Border>

<Grid Grid.Column="1" Margin="2 0 0 0">

<TextBox x:Name="PART_EditableTextBox" Style="{StaticResource EditableTextBoxStyle}" FontSize="{TemplateBinding FontSize}"
HorizontalAlignment="Stretch" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" IsHitTestVisible="True"
HorizontalContentAlignment="{TemplateBinding HorizontalContentAlignment}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"
IsReadOnly="{TemplateBinding IsReadOnly}" FontFamily="{TemplateBinding FontFamily}" Foreground="{TemplateBinding Foreground}"
Text="{Binding Path=Text,Mode=TwoWay,RelativeSource={RelativeSource TemplatedParent}}" />
</Grid>

<Popup x:Name="PART_Popup" AllowsTransparency="True" Focusable="False" StaysOpen="False"
IsOpen="{Binding IsDropDownOpen, RelativeSource={RelativeSource TemplatedParent}}"
PopupAnimation="{DynamicResource {x:Static SystemParameters.ComboBoxPopupAnimationKey}}" Placement="Bottom">
<Grid Width="{Binding ActualWidth, RelativeSource={RelativeSource TemplatedParent}}" MaxHeight="{Binding MaxDropDownHeight, RelativeSource={RelativeSource TemplatedParent}}">
<Border x:Name="PopupBorder" BorderThickness="{TemplateBinding BorderThickness}" HorizontalAlignment="Stretch"
Height="Auto" BorderBrush="{TemplateBinding BorderBrush}" Background="{TemplateBinding Background}"/>
<ListBox x:Name="PART_ListBox" SelectionMode="Multiple" ItemsSource="{Binding ItemsSource,RelativeSource={RelativeSource TemplatedParent}}"
ItemTemplate="{TemplateBinding ItemTemplate}"
MaxHeight="{TemplateBinding MaxDropDownHeight}" ItemContainerStyle="{StaticResource CheckItemStyle}"/>
</Grid>
</Popup>
</Grid>
</Grid>

<ControlTemplate.Triggers>

<DataTrigger Binding="{Binding RelativeSource={RelativeSource Self}, Path=Text}" Value="">
<Setter TargetName="Message" Property="Visibility" Value="Visible" />
</DataTrigger>

<Trigger Property="IsEditable" Value="True">
<Setter TargetName="PART_DropDownToggle" Property="Grid.Column" Value="3" />
<Setter TargetName="PART_DropDownToggle" Property="Grid.ColumnSpan" Value="1" />
<Setter TargetName="PART_DropDownToggle" Property="Background" Value="Transparent" />
<Setter Property="IsTabStop" Value="false" />
<Setter TargetName="PART_DropDownToggle" Property="Focusable" Value="False" />
</Trigger>
<Trigger Property="IsMouseOver" Value="True">
<Setter Property="BorderBrush" Value="{Binding Path=(local:ControlAttachProperty.MouseOverBorderBrush),RelativeSource={RelativeSource Self}}"/>
</Trigger>
<Trigger Property="IsFocused" Value="True">
<Setter Property="BorderBrush" Value="{Binding Path=(local:ControlAttachProperty.FocusBorderBrush),RelativeSource={RelativeSource Self}}"/>
</Trigger>
<Trigger Property="IsKeyboardFocusWithin" Value="True">
<Setter Property="BorderBrush" Value="{Binding Path=(local:ControlAttachProperty.FocusBorderBrush),RelativeSource={RelativeSource Self}}"/>
</Trigger>
<Trigger Property="IsEnabled" Value="False">
<Setter TargetName="PART_Root" Property="Opacity" Value="{StaticResource DisableOpacity}"></Setter>
</Trigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style TargetType="{x:Type local:MultiComboBox}" x:Key="ClearButtonMultiComboBox" BasedOn="{StaticResource DefaultMultiComboBox}">
<Setter Property="local:ControlAttachProperty.AttachContent">
<Setter.Value>
<ControlTemplate>
<local:FButton FIcon="" Style="{StaticResource FButton_Transparency}" IsTabStop="False" FIconMargin="0"
local:ControlAttachProperty.IsClearTextButtonBehaviorEnabled="True" Command="local:ControlAttachProperty.ClearTextCommand"
CommandParameter="{Binding RelativeSource={RelativeSource FindAncestor,AncestorType={x:Type local:MultiComboBox}}}"
IsEnabled="{Binding Path=IsReadOnly,RelativeSource={RelativeSource FindAncestor,AncestorType={x:Type local:MultiComboBox}},
Converter={x:Static local:XConverter.TrueToFalseConverter},Mode=OneWay}"
Margin="1,3,0,4" FIconSize="14" Foreground="{StaticResource TextForeground}" Cursor="Arrow"/>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style TargetType="{x:Type local:MultiComboBox}" x:Key="LabelMultiComboBox" BasedOn="{StaticResource DefaultMultiComboBox}">
<Setter Property="Width" Value="260"></Setter>
<Setter Property="local:ControlAttachProperty.LabelTemplate" >
<Setter.Value>
<ControlTemplate TargetType="ContentControl">
<Border Width="60" Background="{StaticResource TextLabelBackground}">
<TextBlock VerticalAlignment="Center" HorizontalAlignment="Right" Margin="2" Text="{TemplateBinding Content}"></TextBlock>
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style TargetType="{x:Type local:MultiComboBox}" x:Key="LabelClearButtonMultiComboBox" BasedOn="{StaticResource DefaultMultiComboBox}">
<Setter Property="Width" Value="280"></Setter>
<Setter Property="local:ControlAttachProperty.LabelTemplate" >
<Setter.Value>
<ControlTemplate TargetType="ContentControl">
<Border Width="60" Background="{StaticResource TextLabelBackground}">
<TextBlock VerticalAlignment="Center" HorizontalAlignment="Right" Margin="2" Text="{TemplateBinding Content}"></TextBlock>
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
<Setter Property="local:ControlAttachProperty.AttachContent">
<Setter.Value>
<ControlTemplate>
<local:FButton FIcon="" Style="{StaticResource FButton_Transparency}" IsTabStop="False" FIconMargin="0"
local:ControlAttachProperty.IsClearTextButtonBehaviorEnabled="True" Command="local:ControlAttachProperty.ClearTextCommand"
CommandParameter="{Binding RelativeSource={RelativeSource FindAncestor,AncestorType={x:Type local:MultiComboBox}}}"
IsEnabled="{Binding Path=IsReadOnly,RelativeSource={RelativeSource FindAncestor,AncestorType={x:Type local:MultiComboBox}},
Converter={x:Static local:XConverter.TrueToFalseConverter},Mode=OneWay}"
Margin="0,3,0,4" FIconSize="14" Foreground="{StaticResource TextForeground}" Cursor="Arrow"/>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style TargetType="{x:Type local:MultiComboBox}" BasedOn="{StaticResource DefaultMultiComboBox}"></Style>

使用实例：

<core:MultiComboBox Width="420" Margin="3" IsEditable="True" ItemsSource="{StaticResource itmes}"
core:ControlAttachProperty.Label="分类:" core:ControlAttachProperty.Watermark="...哈哈" Style="{StaticResource ClearButtonMultiComboBox}"/>
<core:MultiComboBox Width="420" Margin="3" IsEditable="True" ItemsSource="{StaticResource itmes}"
core:ControlAttachProperty.Label="分类:" core:ControlAttachProperty.Watermark="...哈哈" Style="{StaticResource LabelMultiComboBox}"/>
<core:MultiComboBox Width="420" Margin="3" IsEditable="False" ItemsSource="{StaticResource itmes}"
core:ControlAttachProperty.Label="分类:" core:ControlAttachProperty.Watermark="...哈哈" Style="{StaticResource LabelClearButtonMultiComboBox}"/> <core:MultiComboBox Width="420" Margin="3" IsEditable="True" ItemsSource="{StaticResource itmes}" IsReadOnly="True" SelectedIndex="3"
core:ControlAttachProperty.Label="分类:" core:ControlAttachProperty.Watermark="...哈哈" Style="{StaticResource LabelClearButtonMultiComboBox}"/> <core:MultiComboBox Width="420" Margin="3" IsEditable="False" ItemsSource="{StaticResource itmes}" IsEnabled="False"
core:ControlAttachProperty.Label="分类:" core:ControlAttachProperty.Watermark="...哈哈" Style="{StaticResource LabelClearButtonMultiComboBox}"/>

补充：EditableTextBoxStyle及ComboToggleButton样式代码：
