支付宝支付-PC电脑网站支付

IP云
IP云V管理员/8 阅读
06/19
提示：扫一扫查出行
【扫一扫了解最新限行尾号】
复制提示

支付产品全面升级(更新时间：2017/05/05 )，若您使用的是老接口，请移步老版本即时到账文档。

支持沙盒环境的测试

此项目已开源欢迎Start、PR、发起Issues一起讨论交流共同进步

https://github.com/Javen205/IJPay

http://git.oschina.net/javen205/IJPay

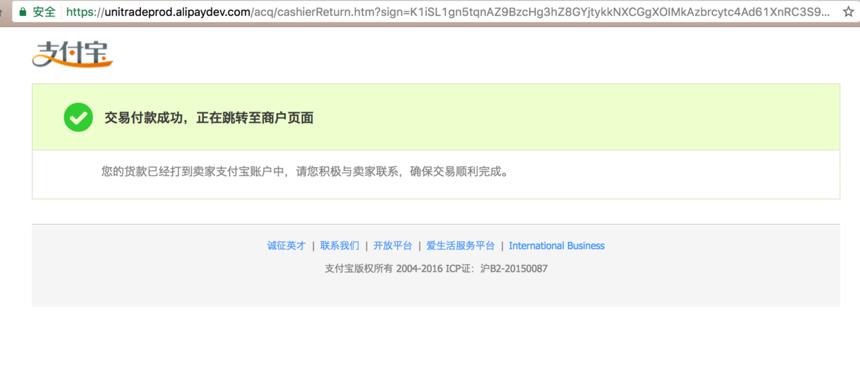

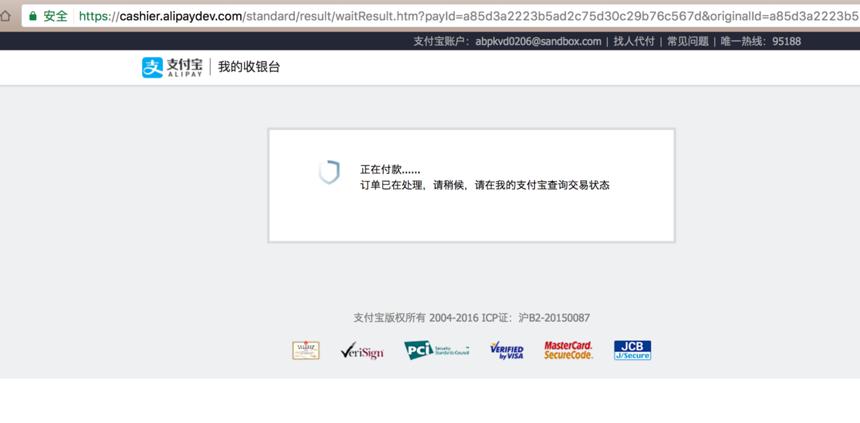

1、有图有真相

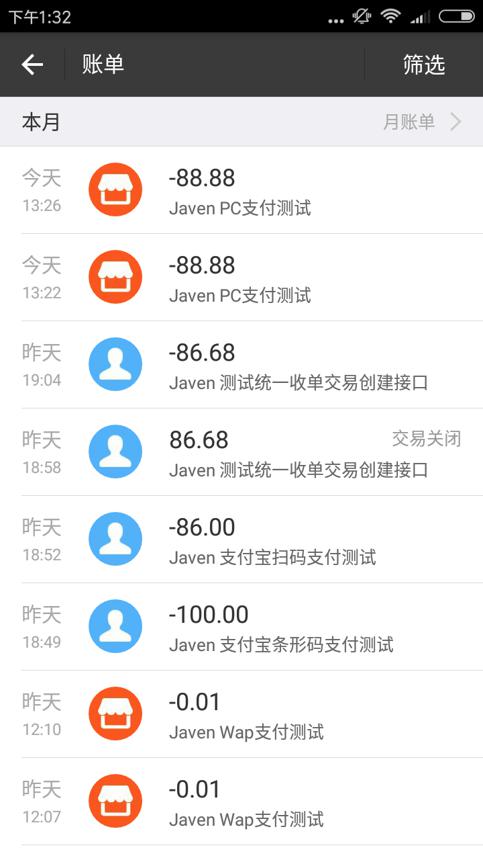

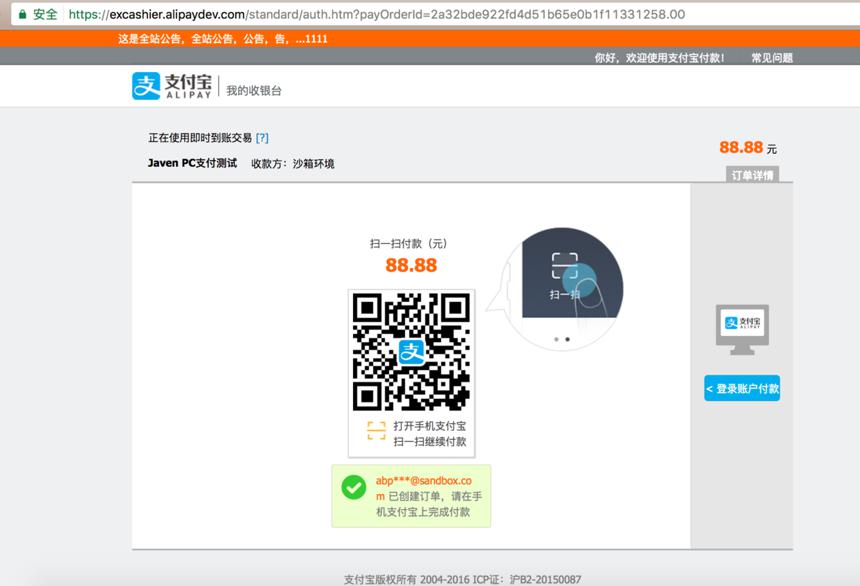

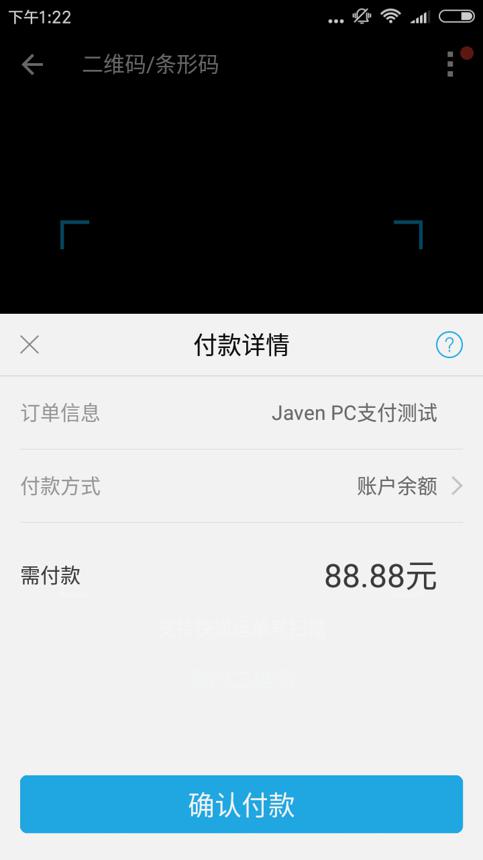

使用手机扫码进行支付

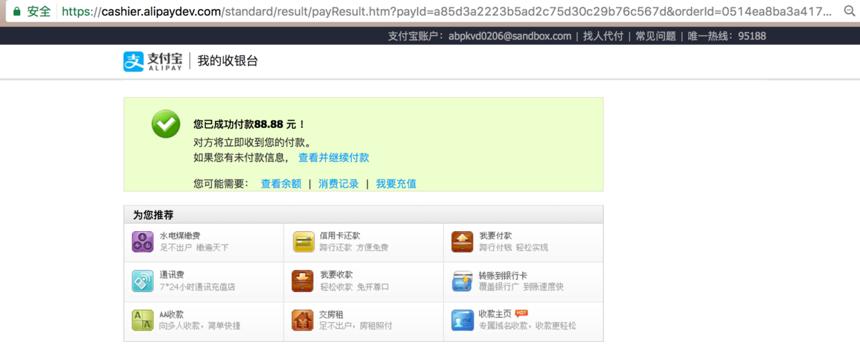

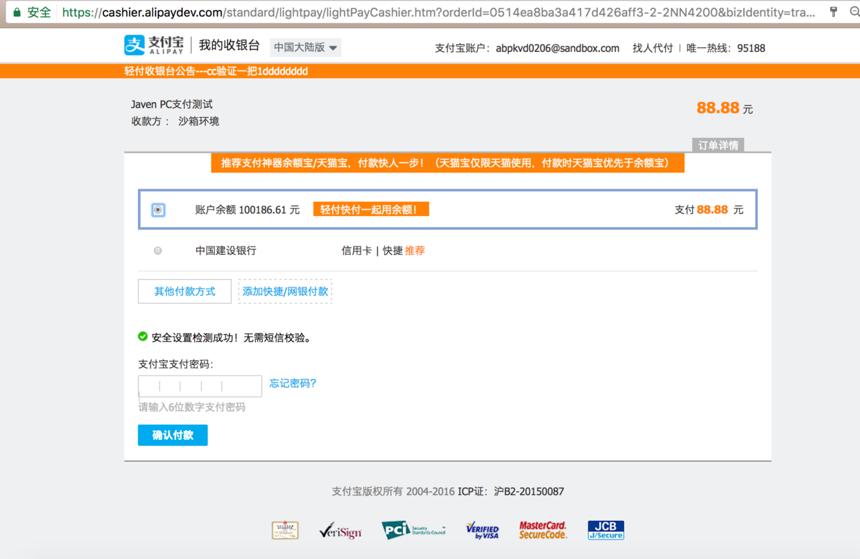

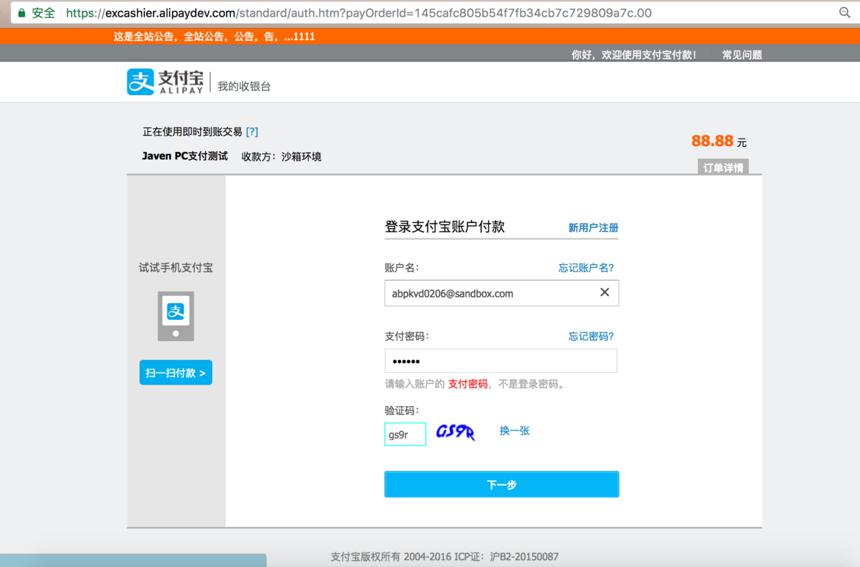

PC 端登录账号进行支付

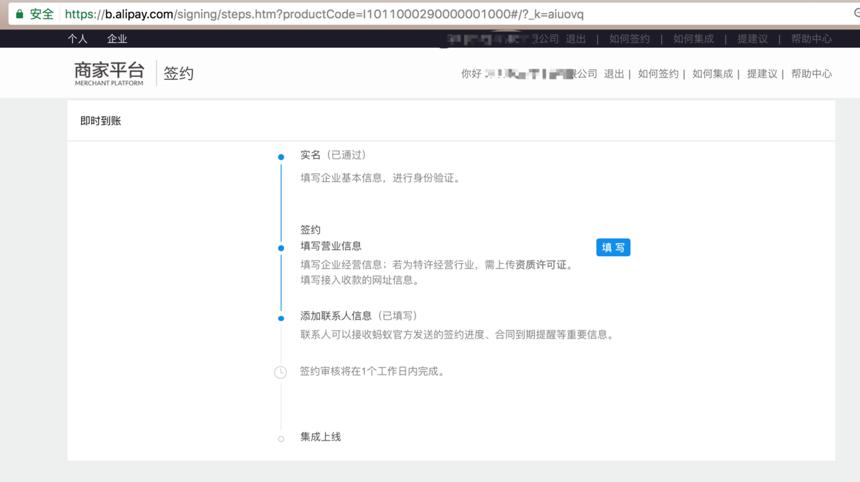

2、如何申请PC电脑网站支付

费率、申请条件、签约、使用场景 传送门接入指引

3、如何快速接入PC电脑网站支付

如果你是使用新版本接入就比较方便了，因为官方提供了开放平台服务端SDK

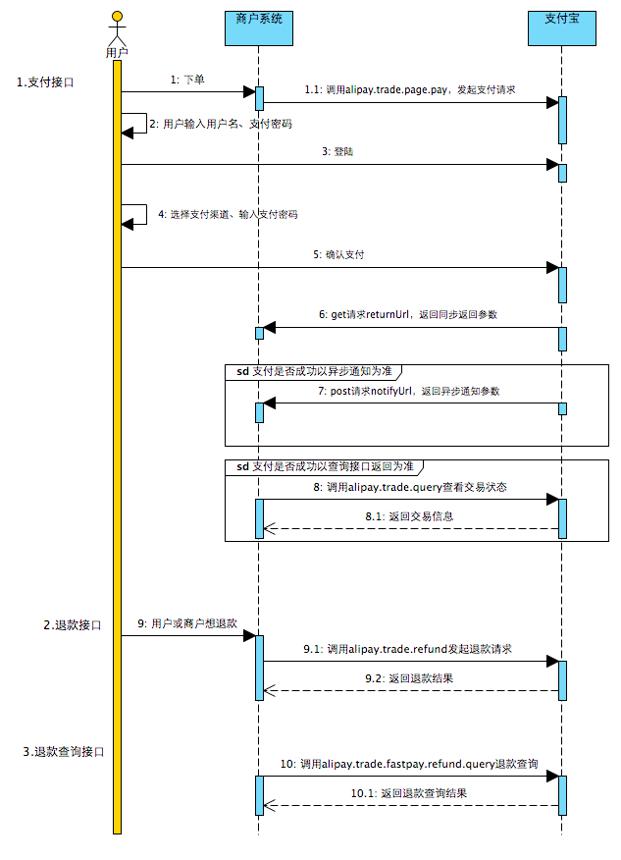

3.1 接口调用流程图

主要涉及到的接口有：

  • 支付接口alipay.trade.page.pay

  • 退款接口alipay.trade.refund

  • 退款查询接口alipay.trade.fastpay.refund.query

  • 交易关闭接口alipay.trade.close

  • 查询对账单下载地址查询接口alipay.data.dataservice.bill.downloadurl.query

3.2 支付接口alipay.trade.page.pay封装

初始化接口

static {
alipayClient = new DefaultAlipayClient(SERVICE_URL, APP_ID, PRIVATE_KEY, FORMAT, CHARSET, ALIPAY_PUBLIC_KEY, SIGN_TYPE);
}

封装支付接口并将SDK生成的表单响应给页面

/**
* 电脑网站支付(PC支付)
* @param model
* @param notifyUrl
* @param returnUrl
* @return
* @throws AlipayApiException
* @throws IOException
*/
public static void tradePage(HttpServletResponse httpResponse, AlipayTradePayModel model, String notifyUrl, String returnUrl) throws AlipayApiException, IOException{
AlipayTradePagePayRequest request = new AlipayTradePagePayRequest();
request.setBizModel(model);
request.setNotifyUrl(notifyUrl);
request.setReturnUrl(returnUrl);
String form = alipayClient.pageExecute(request).getBody();//调用SDK生成表单
httpResponse.setContentType("text/html;charset=" + CHARSET);
httpResponse.getWriter().write(form);//直接将完整的表单html输出到页面
httpResponse.getWriter().flush();
httpResponse.getWriter().close();
}

3.3 其他支付接口封装

可以参考 支付宝支付-常用支付API详解(查询、退款、提现等)

3.4 封装测试

/**
* PC支付
*/
public void pcPay(){
try {
String totalAmount = "88.88";
String outTradeNo =StringUtils.getOutTradeNo();
log.info("pc outTradeNo>"+outTradeNo);String returnUrl = AliPayApi.NOTIFY_DOMAIN + "/alipay/return_url";
String notifyUrl = AliPayApi.NOTIFY_DOMAIN + "/alipay/notify_url";
AlipayTradePayModel model = new AlipayTradePayModel();model.setOutTradeNo(outTradeNo);
model.setProductCode("FAST_INSTANT_TRADE_PAY");
model.setTotalAmount(totalAmount);
model.setSubject("Javen PC支付测试");
model.setBody("Javen IJPay PC支付测试");AliPayApi.tradePage(getResponse(),model , notifyUrl, returnUrl);
} catch (Exception e) {
e.printStackTrace();}}

异步通知处理

public void notify_url() {
try {
// 获取支付宝POST过来反馈信息
Map<String, String> params = AliPayApi.toMap(getRequest());for (Map.Entry<String, String> entry : params.entrySet()) {
System.out.println(entry.getKey() + " = " + entry.getValue());
}boolean verify_result = AlipaySignature.rsaCheckV1(params, AliPayApi.ALIPAY_PUBLIC_KEY, AliPayApi.CHARSET,
AliPayApi.SIGN_TYPE);if (verify_result) {// 验证成功
// TODO 请在这里加上商户的业务逻辑程序代码 异步通知可能出现订单重复通知 需要做去重处理
System.out.println("notify_url 验证成功succcess");
renderText("success");
return;
} else {
System.out.println("notify_url 验证失败");
// TODO
renderText("failure");
return;
}
} catch (AlipayApiException e) {
e.printStackTrace();
renderText("failure");
}
}

同步商户页面验签，这里只是返回验签的状态

public void return_url() {
try {
// 获取支付宝GET过来反馈信息
Map<String, String> map = AliPayApi.toMap(getRequest());
for (Map.Entry<String, String> entry : map.entrySet()) {
System.out.println(entry.getKey() + " = " + entry.getValue());
}boolean verify_result = AlipaySignature.rsaCheckV1(map, AliPayApi.ALIPAY_PUBLIC_KEY, AliPayApi.CHARSET,
AliPayApi.SIGN_TYPE);if (verify_result) {// 验证成功
// TODO 请在这里加上商户的业务逻辑程序代码
System.out.println("return_url 验证成功");
renderText("success");
return;
} else {
System.out.println("return_url 验证失败");
// TODO
renderText("failure");
return;
}
} catch (AlipayApiException e) {
e.printStackTrace();
renderText("failure");
}
}

将参数转化为Map，为验签做准备

/**
*
* @param request
* @return
*/
public static Map<String, String> toMap(HttpServletRequest request) {
System.out.println(">>>>" + request.getQueryString());
Map<String, String> params = new HashMap<String, String>();
Map<String, String[]> requestParams = request.getParameterMap();
for (Iterator<String> iter = requestParams.keySet().iterator(); iter.hasNext();) {
String name = (String) iter.next();
String[] values = (String[]) requestParams.get(name);
String valueStr = "";
for (int i = 0; i < values.length; i++) {
valueStr = (i == values.length - 1) ? valueStr + values[i] : valueStr + values[i] + ",";
}
// 乱码解决，这段代码在出现乱码时使用。
// valueStr = new String(valueStr.getBytes("ISO-8859-1"), "utf-8");
params.put(name, valueStr);
}
return params;
}

4、测试数据

异步通知的参数

gmt_create = 2017-05-14 13:26:58
charset = UTF-8
notify_time = 2017-05-14 13:28:04
gmt_payment = 2017-05-14 13:28:03
subject = Javen PC支付测试
sign = ZYQO+lzxAMDj8Al25KoJzSXegrx1rriBMGLOAEyiNHEac0OMe5e49ZW6m0waDSmTBDX8bwEHUjAk8rdCXTXPzNQSVP0p+46V+8k9AHiEiom6OzV3ZTLzGXGw8A8lnrGPYeCDmKSa3pogJKP0Ob7PyBRgz4HWydWC4P+G1yYEjvVX8kK2XbM6bMauW23a0AklvZbve6WUwUpkioMNLCOHAQzPBDW/LaoDUGx6GN6f3sFDsomBJ03w9rJgqZCs1zw29HHIW4kNFrLcQFleaC+2NnNPLhVanH1iXcK8800dsOXagRPuoy9Gr2EYGV+hSOiVE+XszBKIWTlAbZpE5QgJ6g==
buyer_id = 2088102169474200
body = Javen IJPay PC支付测试
invoice_amount = 88.88
version = 1.0
notify_id = 43749ffb4d02c02f4bfc5ee4fe5761ehjm
fund_bill_list = [{"amount":"88.88","fundChannel":"ALIPAYACCOUNT"}]
notify_type = trade_status_sync
out_trade_no = 051413260514947
total_amount = 88.88
trade_status = TRADE_SUCCESS
trade_no = 2017051421001004200200241311
auth_app_id = 2016102000727659
receipt_amount = 88.88
point_amount = 0.00
sign_type = RSA2
buyer_pay_amount = 88.88
app_id = 2016102000727659
seller_id = 2088102180432465
notify_url 验证成功succcess

商户页面同步的参数

>>>>total_amount=88.88&timestamp=2017-05-14+13%3A28%3A11&sign=KRn%2FEi%2B8lOpPdmSBg8ZsB9dUsV8la2bMWaFGFs5R2hhQOP283m%2BolOwFamfC%2B1thxfIsEi92w99lH24K044yj6aLAN8mJq3umQTRI6j2SvZgn1Ufgpd5KdjfmpEAR5omFOJJP%2FDXIb2zEFs6VvA60RmpwYT5mHbujSWDUvj7X0LX1SGd5l90DbyUDtfMe%2FRSqBFd0iIDLloa78a3dPqHcId3mUKP4RrzZBGWNbAYxrZiEslmZiU%2BnT9K0zL9t%2BVm%2B24pHWsgVOR7hb4UicT%2FfHk6VnDPTnOlfVfJD3vOE2FP6N0jgj0QEKNIynOp6t74zmE8Xkca3pGQnkYyrUEQyg%3D%3D&trade_no=2017051421001004200200241311&sign_type=RSA2&auth_app_id=2016102000727659&charset=UTF-8&seller_id=2088102180432465&method=alipay.trade.page.pay.return&app_id=2016102000727659&out_trade_no=051413260514947&version=1.0
charset = UTF-8
out_trade_no = 051413260514947
method = alipay.trade.page.pay.return
total_amount = 88.88
sign = KRn/Ei+8lOpPdmSBg8ZsB9dUsV8la2bMWaFGFs5R2hhQOP283m+olOwFamfC+1thxfIsEi92w99lH24K044yj6aLAN8mJq3umQTRI6j2SvZgn1Ufgpd5KdjfmpEAR5omFOJJP/DXIb2zEFs6VvA60RmpwYT5mHbujSWDUvj7X0LX1SGd5l90DbyUDtfMe/RSqBFd0iIDLloa78a3dPqHcId3mUKP4RrzZBGWNbAYxrZiEslmZiU+nT9K0zL9t+Vm+24pHWsgVOR7hb4UicT/fHk6VnDPTnOlfVfJD3vOE2FP6N0jgj0QEKNIynOp6t74zmE8Xkca3pGQnkYyrUEQyg==
trade_no = 2017051421001004200200241311
auth_app_id = 2016102000727659
version = 1.0
sign_type = RSA2
app_id = 2016102000727659
seller_id = 2088102180432465
timestamp = 2017-05-14 13:28:11
return_url 验证成功
