1.算法功能简介
算法的自定义扩展允许用户自主开发新的算法。自定义的算法必须实现PIE.SystemAlgo.BaseSystemAlgo基础类，这样才能被PIE的算法管理器调用起来。
2.算法功能实现说明
2.1. 示例简介
本算法用于实现栅格影像的拷贝。参数类“AlgoParams.cs”用于存放要拷贝的路径和拷贝到的路径，算法类“Algo.cs”用于执行算法，窗体类“FormTest.cs”用于接收用户输入的要拷贝的路径和拷贝到的路径，Command类“AlgoCommand.cs”用于实现算法调用。
算法类“Algo.cs”继承自BaseSystemAlgo,该类实现了ISystemAlgo, ISystemAlgoEvents两个接口。以下对BaseSystemAlgo类的属性，方法和事件进行介绍：
|
属性介绍
|
|
Description
|
String
|
描述
|
|
Name
|
String
|
名称
|
|
Params
|
String
|
参数
|
|
方法介绍
|
|
Execute()
|
Bool
|
执行算法，返回结果:是否执行成功
|
|
GetErrorInfo(ref int errCode, ref string errMsg)
|
Void
|
获取错误信息，参数: errCode:错误信息编号，errMsg:错误信息描述
|
|
事件介绍
|
|
OnExecuteCompleted
|
OnExecuteCompletedEventHandler
|
执行完成事件
|
|
OnProgressChanged
|
OnProgressChangedEventHandler
|
进度变化事件
|
2.2. 实现步骤
|
第一步
|
编写参数类“AlgoParams.cs”
|
|
第二步
|
构造算法类“Algo.cs”
|
|
第三步
|
新建窗体类“FormTest.cs”
|
|
第四步
|
写Command类实现算法调用
|
2.3. 示例代码
|
项目路径
|
百度云盘地址下/PIE示例程序/10.算法调用/算法的调用方式/Algo.AlgoTest
|
|
数据路径
|
百度云盘地址下/PIE示例数据/栅格数据/04.World/ World.tif
|
|
视频路径
|
百度云盘地址下/PIE视频教程/10.算法调用/算法的调用方式/算法的自定义扩展.avi
|
|
示例代码
|
//（一）编写参数类“AlgoParams.cs”
public class AlgoParams
{
/// <summary>
/// 要拷贝的路径
/// </summary>
public string OpenFilePath;
/// <summary>
/// 拷贝到的路径
/// </summary>
public string SaveFilePath;
}
//（二）构造算法类“Algo.cs”
public class Algo : PIE.SystemAlgo.BaseSystemAlgo
{
/// <summary>
/// 构造函数
/// </summary>
public Algo()
{
}
/// <summary>
/// 执行算法
/// </summary>
/// <returns>是否执行成功</returns>
public override bool Execute()
{
AlgoParams m_AlgoParams = (AlgoParams)this.Params;
if (string.IsNullOrEmpty(m_AlgoParams.OpenFilePath) || string.IsNullOrEmpty(m_AlgoParams.SaveFilePath)) return false;
File.Copy(m_AlgoParams.OpenFilePath, m_AlgoParams.SaveFilePath, true);
return true;
}
}
//（三）新建窗体类“FormTest.cs”
public partial class FormTest : Form
{
/// <summary>
/// 算法参数
/// </summary>
private AlgoTest.AlgoParams m_Parm = new AlgoParams();
/// <summary>
/// 构造函数
/// </summary>
public FormTest()
{
InitializeComponent();
}
/// <summary>
/// 算法参数
/// </summary>
public AlgoParams Params
{
get { return m_Parm; }
set { this.m_Parm = value; }
}
private void buttonEdit_save_ButtonClick(object sender, DevExpress.XtraEditors.Controls.ButtonPressedEventArgs e)
{
SaveFileDialog save = new SaveFileDialog();
save.Title = "另存为";
save.Filter = "Raster Files|*.tif";
save.FileName = "";
if (save.ShowDialog() == DialogResult.OK)
{
this.buttonEdit_save.Text = save.FileName;
}
}
private void simpleButton_ok_Click(object sender, EventArgs e)
{
if (string.IsNullOrEmpty(this.buttonEdit_tif.Text) || string.IsNullOrEmpty(this.buttonEdit_save.Text))
{
MessageBox.Show("请输入路径！");
return;
}
m_Parm.OpenFilePath = this.buttonEdit_tif.Text;
m_Parm.SaveFilePath = this.buttonEdit_save.Text;
this.DialogResult = DialogResult.OK;
}
private void simpleButton_cancel_Click(object sender, EventArgs e)
{
this.Close();
}
private void buttonEdit_tif_ButtonClick(object sender, DevExpress.XtraEditors.Controls.ButtonPressedEventArgs e)
{
OpenFileDialog open = new OpenFileDialog();
open.Filter = "Raster Files|*.tif";
open.Title = "选择栅格文件";
open.Multiselect = false;
if (open.ShowDialog() != DialogResult.OK) return;
string filePath = open.FileName;
IRasterDataset dataSet = DatasetFactory.OpenRasterDataset(filePath, OpenMode.ReadOnly);
if (dataSet == null)
{
MessageBox.Show("文件打开失败！");
return;
}
if (!dataSet.Open(filePath, OpenMode.ReadOnly))
{
MessageBox.Show("文件打开失败！");
return;
}
this.buttonEdit_tif.Text = filePath;
}
}
//（四）写Command类实现算法调用
public class AlgoCommand: DesktopCommand
{
/// <summary>
/// 构造函数
/// </summary>
public AlgoCommand()
{
this.Caption = "测试算法";
this.Name = "AlgoCommand";
this.ToolTip = "测试算法";
this.Checked = false;
this.Enabled = false;
}
/// <summary>
/// 单击方法
/// </summary>
public override void OnClick()
{
#region 1、参数设置
if (!this.Enabled) return;
FormTest frmTest = new FormTest();
if (frmTest.ShowDialog() != System.Windows.Forms.DialogResult.OK) return;
AlgoParams info = frmTest.Params;
PIE.SystemAlgo.ISystemAlgo algo = PIE.SystemAlgo.AlgoFactory.Instance().CreateAlgo("AlgoTest.dll", "AlgoTest.Algo");
if (algo == null) return;
PIE.SystemAlgo.ISystemAlgoEvents algoEvents = algo as PIE.SystemAlgo.ISystemAlgoEvents;
algo.Name = "测试算法";
algo.Params = info;
algoEvents.OnExecuteCompleted += OnAlgoExcuteCompleted;
algoEvents.OnProgressChanged += OnAlgoProgressChanged;
#endregion
//2、算法执行
PIE.AxControls.IStatusBar statusBar = m_Application.StatusBar;
statusBar.ShowProgress(, , "");
PIE.SystemAlgo.AlgoFactory.Instance().AsynExecuteAlgo(algo);
}
/// <summary>
/// 算法执行完成事件
/// </summary>
/// <param name="algo">算法</param>
private void OnAlgoExcuteCompleted(PIE.SystemAlgo.ISystemAlgo algo)
{
PIE.AxControls.IStatusBar statusBar = m_Application.StatusBar;
statusBar.UpdateProgress(, "");
statusBar.HideProgress();
//3、结果显示
AlgoParams info = (AlgoParams)algo.Params;
PIE.Carto.ILayer layer = PIE.Carto.LayerFactory.CreateDefaultLayer(info.SaveFilePath);
m_HookHelper.FocusMap.AddLayer(layer);
m_HookHelper.ActiveView.PartialRefresh(PIE.Carto.ViewDrawPhaseType.ViewAll);
PIE.SystemAlgo.ISystemAlgoEvents algoEvents = algo as PIE.SystemAlgo.ISystemAlgoEvents;
algoEvents.OnExecuteCompleted -= OnAlgoExcuteCompleted;
algoEvents.OnProgressChanged -= OnAlgoProgressChanged;
}
/// <summary>
/// 算法进度变化事件
/// </summary>
/// <param name="complete">进度</param>
/// <param name="msg">进度信息</param>
/// <param name="algo">算法</param>
/// <returns>int</returns>
private int OnAlgoProgressChanged(double complete, string msg, PIE.SystemAlgo.ISystemAlgo algo)
{
PIE.AxControls.IStatusBar statusBar = m_Application.StatusBar;
statusBar.UpdateProgress((int)complete, msg);
return ;
}
}
|

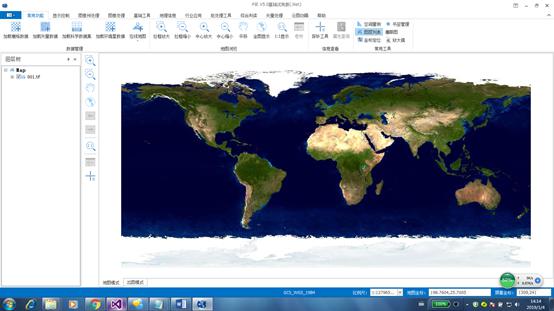

2.4. 示例截图
