线程状态及各状态下与锁和CPU的关系

线程的状态

Thread.State枚举类型中定义了线程的六种状态：NEW，RUNNABLE，BLOCKED，WAITING，TIMED_WAITING和TERMINATED。

线程在某一时刻只能拥有一种状态，但是在线程的整个生命周期，线程的状态会发生变化。

public enum State {
NEW, RUNNABLE, BLOCKED, WAITING, TIMED_WAITING, TERMINATED;
}


各状态的说明

NEW

NEW状态是线程已经被创建，但还没调用start()。此时的线程是不可运行的，CPU将不会为其分配时间。

RUNNABLE

当新创建的线程调用了start()，线程便进入了RUNNABLE状态。

RUNNABLE状态是指可以获得CPU运行时间的状态，如果线程在此状态下，线程有两种子状态，一种是等待CPU时间，另一种是获得了CPU时间在执行代码。

BLOCKED

BLOCKED状态是线程无法获取对象锁时的状态。此状态下线程会阻塞，当线程成功获取到锁，线程将切换为RUNNABLE状态。

BLOCKED状态无法获得CPU运行时间。

WAITING

WAITING状态是指是指线程在执行过程中，主动出让自己CPU运行时间，让其他线程先执行，自己等待其它线程的特定操作后再恢复执行。

TIMED_WAITING

TIMED_WAITING和WAITING状态相似，TIMED_WAITING增加了时间限制，其实没有外部信号，在等待时间超时后，线程也会恢复。

TERMINATED

TERMINATED是线程的终止态，当线程执行完自己的任务，或在执行任务中发生了异常，线程都会进入TERMINATED，表示线程已经到了生命周期的末尾。

下图是关于线程间各状态切换的过程及发生状态切换的一些条件。

操作	操作前线程状态	操作后线程状态	是否出让CPU时间	是否需要先持有对象锁	是否释放对象锁
new Thread()	无	NEW	否	否	否
Thread.start()	NEW	RUNNABLE	否	否	否
synchronized能得到对象锁	RUNNABLE	RUNNABLE	否	否	否
synchronized无法得到对象锁	RUNNABLE	BLOCKED	是	否	否
Thread.join()	RUNNABLE	WAITING	是	否	否
Thread.join(t)	RUNNABLE	TIMED_WAITING	是	否	否
Thread.sleep(t)	RUNNABLE	TIMED_WAITING	是	否	否
Object.wait()	RUNNABLE	WAITING	是	是	是
Object.wait(t)	RUNNABLE	TIMED_WAITING	是	是	是
Object.notify() / Object.notifyAll()	RUNNABLE	RUNNABLE	否	是	否
Lock.lock()	RUNNABLE	WAITING	是	否	否
Lock.tryLock(t)	RUNNABLE	TIMED_WAITING	是	否	否
LockSupport.park()	RUNNABLE	WAITING	是	否	否
LockSupport.parkNanos(t)/LockSupport.parkUntil(t)	RUNNABLE	TIMED_WAITING	是	否	否
执行结束/执行异常	RUNNABLE	TERMINATED	是	否	否

以下是一些测试代码，可以运行下清晰的了解到状态。

各状态切换测试：

public class ThreadStateTest { public static void main(String[] args){
threadStateNew(); workingThread(); threadStateTerminate(); threadBlockedByLock(); threadBlockedBySynchronized(); threadSleep(); threadWait(); threadTimedWait();
} private static void threadStateNew(){
System.out.println("--------------------------");
System.out.print("Never Start Thread State：");
Thread thread = new Thread(()->{ }, "Thread Never Start");
//print NEW
System.out.println(thread.getState());
System.out.println("--------------------------");
} private static void workingThread(){
System.out.println("--------------------------");
Thread thread = new Thread(()->{
for(int i=0; i<100; i++){
doSomeElse();
}
}); thread.start(); doSomeElse();
//print RUNNABLE
System.out.println("Working Thread State:" + thread.getState());
System.out.println("--------------------------");
} private static void threadStateTerminate(){
System.out.println("--------------------------");
System.out.print("Finish Job Thread State：");
Thread thread = new Thread(()->{ }, "Thread Finish Job");
thread.start(); try {
//Main Thread Will Wait util this thread finished job
thread.join();
} catch (InterruptedException e) {
e.printStackTrace();
}
//print TERMINATED
System.out.println(thread.getState());
System.out.println("--------------------------");
} private static void threadBlockedByLock(){
System.out.println("--------------------------");
System.out.print("Thread State Blocked By Lock：");
ReentrantLock lock = new ReentrantLock();
Thread thread = new Thread(()->{
lock.lock();
}, "Blocked Thread"); lock.lock(); thread.start(); doSomeElse();
//print WAITING
System.out.println(thread.getState()); lock.unlock();
System.out.println("--------------------------");
} private static void threadBlockedBySynchronized(){
System.out.println("--------------------------");
System.out.print("Thread Blocked By Synchronized：");
Thread thread = new Thread(()->{
synchronized (ThreadStateTest.class){ }
}, "Blocked by Synchronized Thread"); synchronized (ThreadStateTest.class){
thread.start();
doSomeElse();
//print BLOCKED
System.out.println(thread.getState());
}
System.out.println("--------------------------");
} private static void threadSleep(){
System.out.println("--------------------------");
System.out.print("Sleeping Thread:");
Thread thread = new Thread(()->{
try {
Thread.sleep(10000);
} catch (InterruptedException e) {
e.printStackTrace();
}
}, "Thread sleep"); thread.start();
doSomeElse();
//print TIMED_WAITING
System.out.println(thread.getState());
System.out.println("--------------------------");
} private static void threadWait(){
System.out.println("--------------------------");
System.out.print("Thread Waiting:");
Object lock = new Object();
Thread threadA = new Thread(()->{
synchronized (lock){
try {
lock.wait(); for(int i=0; i<100; i++){
doSomeElse();
}
} catch (InterruptedException e) {
e.printStackTrace();
}
} }, "Thread Waiting"); Thread threadB = new Thread(()->{
synchronized (lock){
//print WAITING
System.out.println("Before Notify, Thread A State:" + threadA.getState());
lock.notify();
//print BLOCKED
System.out.println("After Notify, Thread A State:" + threadA.getState());
}
}); threadA.start();
doSomeElse();
threadB.start(); try {
threadB.join();
} catch (InterruptedException e) {
e.printStackTrace();
}
//print RUNNABLE
System.out.println("After Thread B finish job, Thread A State:" + threadA.getState());
System.out.println("--------------------------");
} private static void threadTimedWait(){
System.out.println("--------------------------");
System.out.print("Thread Waiting:");
Object lock = new Object();
Thread threadA = new Thread(()->{
synchronized (lock){
try {
lock.wait(1000); for(int i=0; i<100; i++){
doSomeElse();
}
} catch (InterruptedException e) {
e.printStackTrace();
}
} }, "Thread Waiting"); Thread threadB = new Thread(()->{
synchronized (lock){
//print TIMED_WAITING
System.out.println("Before Notify, Thread A State:" + threadA.getState());
lock.notify();
//print BLOCKED
System.out.println("After Notify, Thread A State:" + threadA.getState());
}
}); threadA.start();
doSomeElse();
threadB.start(); try {
threadB.join();
} catch (InterruptedException e) {
e.printStackTrace();
}
//print RUNNABLE
System.out.println("After Thread B finish job, Thread A State:" + threadA.getState());
System.out.println("--------------------------");
}
/**
* take some times, let the thread get cpu time
*/
private static void doSomeElse(){
double meanless = 0d;
for(int i=0; i<10000; i++){
meanless += Math.random();
}
}}


CPU时间运行测试：

public class ThreadCPUTimeTest { public static void main(String[] args) {
testBlockedThreadCPUTime();
} protected static void testBlockedThreadCPUTime() {
Object lock = new Object(); Thread threadA = new Thread(() -> {
synchronized (lock) {
doSomethingElse();
}
}, "ThreadA: Blocked because of synchronized"); Thread threadB = new Thread(() -> {
synchronized (lock) {
try {
threadA.start();
Thread.sleep(100000);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}, "ThreadB: With Monitor But Sleep"); threadB.start();
//Main Thread Executing Job
for (int i = 0; i < 100000; i++) {
doSomethingElse();
}
} private static void doSomethingElse() {
double meanless = 0d; for (int i = 0; i < 10000; i++) {
meanless += Math.random();
}
}
}

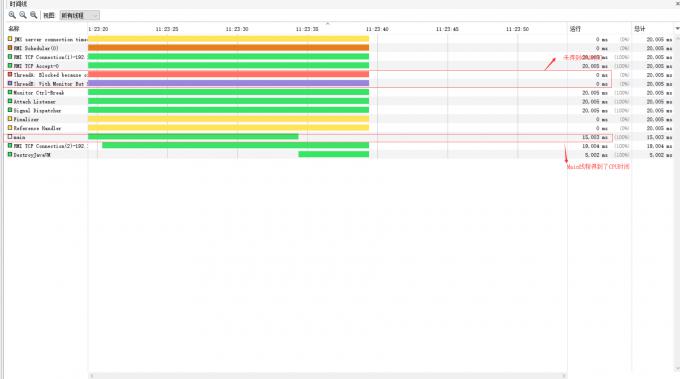

用VISUALVM可以统计CPU时间：

详细代码可以GitHub
