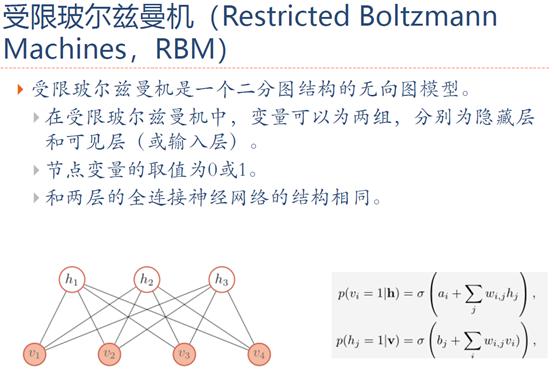

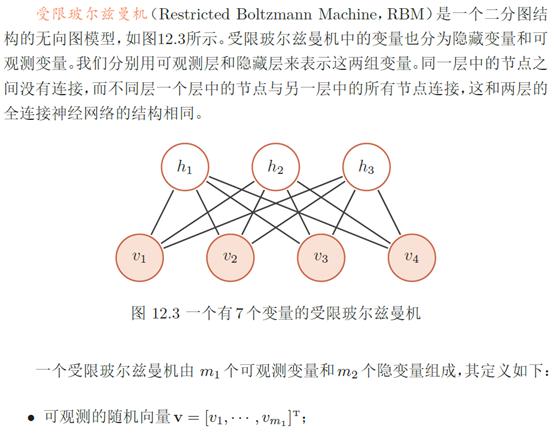

受限玻尔兹曼机(Restricted Boltzmann Machine)

% maxepoch -- 最大迭代次数maximum number of epochs
% numhid -- 隐含层神经元数number of hidden units
% batchdata -- 分批后的训练数据集the data that is divided into batches (numcases numdims numbatches)

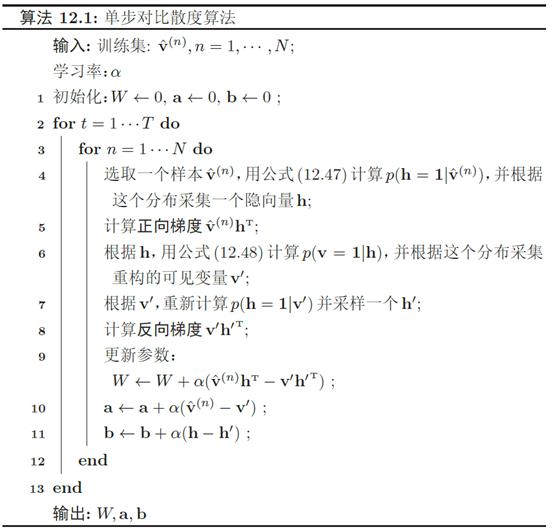

% restart -- 如果从第1层开始学习，就置restart为1set to 1 if learning starts from beginning %作用：训练RBM，利用1步CD算法 直接调用权值迭代公式不使用反向传播
%可见的、二元的、随机的像素通过对称加权连接连接到隐藏的、二元的、随机的特征检测器
epsilonw = 0.1; % Learning rate for weights 权重学习率 alpha
epsilonvb = 0.1; % Learning rate for biases of visible units 可视层偏置学习率 alpha
epsilonhb = 0.1; % Learning rate for biases of hidden units 隐藏层偏置学习率 alpha
weightcost = 0.0002; %权衰减，用于防止出现过拟合
initialmomentum = 0.5; %动量项学习率，用于克服收敛速度和算法的不稳定性之间的矛盾
finalmomentum = 0.9;[numcases numdims numbatches]=size(batchdata);%[numcases numdims numbatches]＝[每批中的样本数 每个样本的维数 训练样本批数]if restart ==1 %是否为重新开始即从头训练
restart=0;
epoch=1;% Initializing symmetric weights and biases. 初始化权重和两层偏置
vishid = 0.1*randn(numdims, numhid);% 连接权值Wij 784*1000
hidbiases = zeros(1,numhid);% 隐含层偏置项bi
visbiases = zeros(1,numdims);% 可视化层偏置项aj poshidprobs = zeros(numcases,numhid); %样本数*隐藏层NN数，隐藏层输出p(h1|v0)对应每个样本有一个输出 100*1000
neghidprobs = zeros(numcases,numhid); %重构数据驱动的隐藏层
posprods = zeros(numdims,numhid); % 表示p(h1|v0)*v0，用于更新Wij即<vihj>data 784*1000
negprods = zeros(numdims,numhid); %<vihj>recon
vishidinc = zeros(numdims,numhid); % 权值更新的增量 ΔW
hidbiasinc = zeros(1,numhid); % 隐含层偏置项更新的增量 1*1000 Δb
visbiasinc = zeros(1,numdims); % 可视化层偏置项更新的增量 1*784 Δa
batchposhidprobs=zeros(numcases,numhid,numbatches); % 整个数据隐含层的输出 每批样本数*隐含层维度*批数
endfor epoch = epoch:maxepoch %每个迭代周期
fprintf(1,'epoch %d\r',epoch);
errsum=0;
for batch = 1:numbatches %每一批样本
fprintf(1,'epoch %d batch %d\r',epoch,batch);
%%CD-1
%%%%%%%%% START POSITIVE PHASE 正向梯度%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
data = batchdata(:,:,batch); %data里是100个图片数据

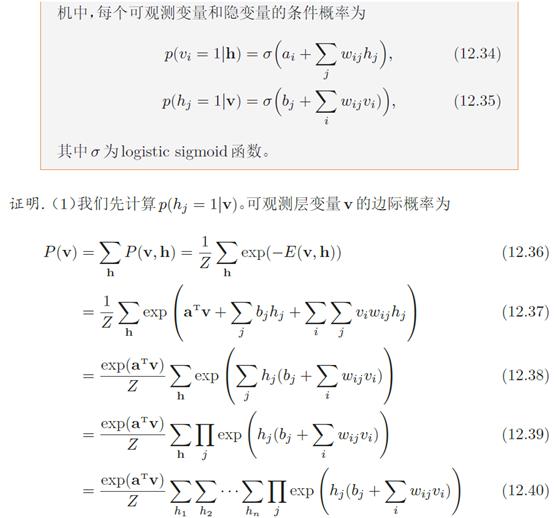

poshidprobs = 1./(1 + exp(-data*vishid - repmat(hidbiases,numcases,1))); %隐藏层输出p(h=1|v0)=sigmod函数=1/(1+exp(-wx-b)) 根据这个分布采集一个隐变量h
batchposhidprobs(:,:,batch)=poshidprobs; %将输出存入一个三位数组
posprods = data' * poshidprobs; %p(h|v0)*v0 更新权重时会使用到 计算正向梯度vh'
poshidact = sum(poshidprobs); %隐藏层中神经元概率和，在更新隐藏层偏置时会使用到
posvisact = sum(data); %可视层中神经元概率和，在更新可视层偏置时会使用到
%%%%%%%%% END OF POSITIVE PHASE %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

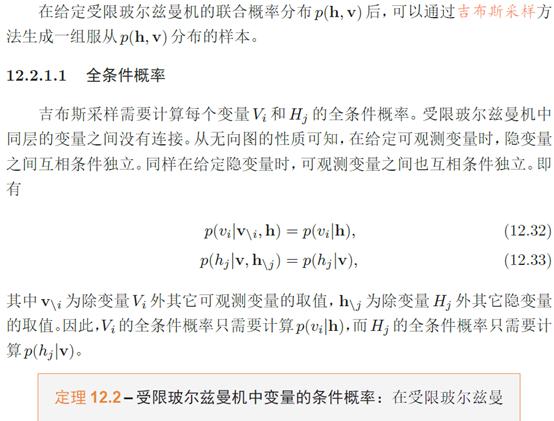

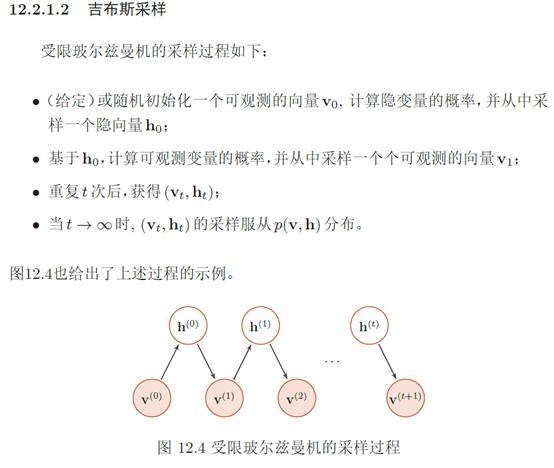

%%gibbs采样
poshidstates = poshidprobs > rand(numcases,numhid); %将隐藏层输出01化表示，大于随机概率的置1，小于随机概率的置0，gibbs抽样,设定状态 %%%%%%%%% START NEGATIVE PHASE 反向梯度%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
negdata = 1./(1 + exp(-poshidstates*vishid' - repmat(visbiases,numcases,1))); %01化表示之后算vt=p(vt|ht-1)重构的数据 p(v=1|h)=sigmod(W*h+a) 采集重构的可见变量v'
neghidprobs = 1./(1 + exp(-negdata*vishid - repmat(hidbiases,numcases,1))); %ht=p(h|vt)使用重构数据隐藏层的输出 p(h=1|v)=sigmod(W'*v+b) 采样一个h'
negprods = negdata'*neghidprobs; %计算反向梯度v'h';
neghidact = sum(neghidprobs);
negvisact = sum(negdata);
%%%%%%%%% END OF NEGATIVE PHASE %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%更新参数
err= sum(sum( (data-negdata).^2 )); %整批数据的误差 ||v-v'||^2
errsum = err + errsum; if epoch>5 %迭代次数不同调整冲量
momentum=finalmomentum;
else
momentum=initialmomentum;
end%%%%%%%%% UPDATE WEIGHTS AND BIASES 更新权重和偏置%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
vishidinc = momentum*vishidinc + ...
epsilonw*( (posprods-negprods)/numcases - weightcost*vishid); %权重的增量 ΔW=alpha*(vh'-v'h')
visbiasinc = momentum*visbiasinc + (epsilonvb/numcases)*(posvisact-negvisact); %可视层增量 Δa=alpha*(v-v')
hidbiasinc = momentum*hidbiasinc + (epsilonhb/numcases)*(poshidact-neghidact); %隐含层增量 Δb=alpha*(h-h') vishid = vishid + vishidinc; %a=a+Δa
visbiases = visbiases + visbiasinc; %W=W+ΔW
hidbiases = hidbiases + hidbiasinc; %b=b+Δb
%%%%%%%%%%%%%%%% END OF UPDATES %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% end
fprintf(1, 'epoch %4i error %6.1f \n', epoch, errsum);
end
