一、图像绘制

canvas绘制图像的方法是ctx.drawImage();该方法有三种使用方式

1、ctx.drawImage(img,x,y);

img是指图像对象，x和y分别是这个图像左上角在canvas画布的坐标，而图像显示的大小为图像本身的像素值，超出canvas画布的部分不显示。

2、ctx.drawImage(img,x,y,w,h);

和上面的那个函数相比，可以控制图像在canvas中显示的宽度和高度，而不再是图片自身的高宽像素

3、ctx.drawImage(img , dx , dy , dw , dh , x , y , w , h);

这个又比之前的函数多了dx、dy、dw、dh这四个参数，这四个参数可以控制图片切片显示在canvas画布中。在图片上同样以左上角为原点，向右为X轴正方向，向下为Y轴正方向，这四个参数表示，在图片中在(dx,dy)这个坐标，切dw和dh大小的切片。然后将这个切片显示在canvas画布上。

最后这个img参数，不单单可以是Image对象，还可以是video对象，也可以是另外的canvas对象。所以可以通过该方法对video视频进行截屏，也可以通过加载canvas制作图像水印、放大镜、以及淘宝双11主会场那样的特效，一个canvas加载另一个canvas，也被称为canvas的离屏技术。

二、图像的像素级处理

1、ctx.getImageData(x , y , w , h);

这个方法是获取画布(x,y)坐标，宽高分别为w和h的像素对象。而这个对象的data属性，则是其rgba的值。一个画布的像素值是从画布的原点，从左向右，从上到下，一排一排的排列下来的。常用取出canvas像素值的方法有两种，一种是采用一层循环，另一种是采用双重for循环，代码如下：

2、ctx.putImageData()

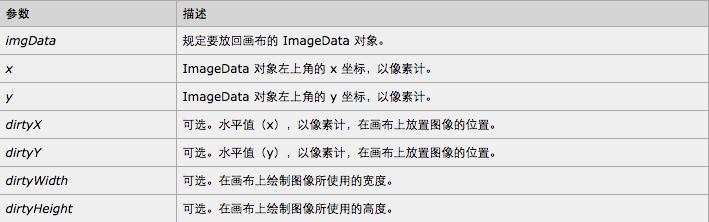

该方法是设置canvas画布上的像素数据，它有七个参数，在w3c上是这么解释的

我的理解就是将imgData,放在画布上的位置是(x + dirtyX , y + dirtyY)，高宽分别是dirtyHeight、dirtyWidth的矩形。

三、canvas图像下载

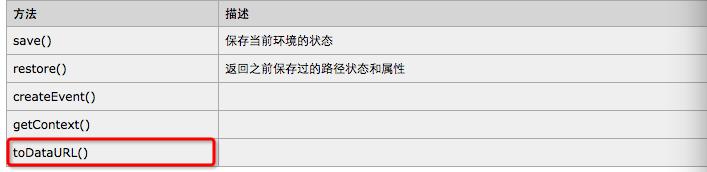

使用的是canvas对象的toDataURL()方法，它可以将canvas画布中的内容转化为浏览器可下载的本地data数据，然后通过href跳转的方式完成下载，代码如下

var canvas = document.getElementById("canvas");
var imgUrl = canvas.toDataURL("image/png").replace("image/png", "image/octet-stream");
window.location.href = imgUrl;

四、代码demo

1、图片缩放，以及像素变换

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>图像学习</title>
<style>
#main,#copy,.contain{
margin: 15px;
padding: 0;
float: left; }
#main{
cursor:move
}
.contain *{
padding: 2px;
margin: 0;
z }
.contain a{
display: block;
text-align: center;
margin-top:5px;
font-size:15px;
line-height: 20px;
}
</style>
</head>
<body>
<canvas id="main" width="400" height="300" style="display:block;border: 1px solid #AAA;">
亲，您的浏览器不支持canvas
</canvas>
<div class="contain" style="width: 290px;height: 300px;">
<div>
<span>缩放</span>
<input type="range" id="scaleChange" min="0.5" max="4.0" step="0.03" value="1.0"
style="display:inline-block;width: 240px;"/>
</div>
<a href="javascript:void(0)" id="greyChange">灰度转换</a>
<a href="javascript:void(0)" id="blackChange">黑度转换</a>
<a href="javascript:void(0)" id="reverChange">反相转换</a>
<a href="javascript:void(0)" id="blurChange">模糊处理</a>
<a href="javascript:void(0)" id="mosaicChange">马赛克处理</a>
<a href="javascript:void(0)" id="downLoadImage">下载右侧图片</a>
</div>
<canvas id="copy" width="400" height="300" style="display:block;border: 1px solid #AAA;">
亲，您的浏览器不支持canvas
</canvas>
<canvas id="waterMark" style="display: none;">
亲，您的浏览器不支持canvas

</canvas>
</body>
<script>
document.body.onload = function(){
var canvas = document.getElementById("main"),
scaleChange = document.getElementById("scaleChange"),
copyCanvas = document.getElementById("copy"),
waterMarkCanvas = document.getElementById("waterMark"),
ctx = canvas.getContext("2d"),
copyCtx = copyCanvas.getContext("2d"),
canvasW = canvas.width,
canvasH = canvas.height;
var img = new Image();
img.src = "img.jpg";
img.onload = function(){ //当图片加载完毕后，执行canvas画图函数
init();
}
//用于初始化
function init(){
toolFunc.handleWaterMark();
toolFunc.handleScale();
toolFunc.drawImg();
toolFunc.handleEffect();
toolFunc.handleCanvasMove();
}
var toolFunc = {
scaleImgX : 0,
scaleImgY : 0,
drawImg : function(moveX , moveY){ //绘制图片
var scale = scaleChange.value;
//根据比例计算缩放后图像的大小
var imgW = canvasW*scale,
imgH = canvasH*scale,
x = (canvasW - imgW)/2,
y = (canvasH - imgH)/2,
tempX = x , tempY = y;
if(moveX || moveY){
x = this.scaleImgX + moveX;
y = this.scaleImgY + moveY;
if(x >= 0 || y >= 0 || x <= 2*tempX || y <= 2*tempY){
return;
}
}
ctx.clearRect(0 , 0 , canvasW , canvasH);
ctx.drawImage(img , x , y , imgW , imgH);
ctx.drawImage(waterMarkCanvas ,
canvasW - waterMarkCanvas.width ,
canvasH - waterMarkCanvas.height ,
waterMarkCanvas.width , waterMarkCanvas.height);
this.scaleImgX = x;
this.scaleImgY = y;
},
handleWaterMark : function(){ //用于处理水印
waterMarkCanvas.width = 200;
waterMarkCanvas.height = 70;
var waterCtx = waterMarkCanvas.getContext("2d");
waterCtx.font = "bold 20px Arial";
waterCtx.lineWidth = 1;
waterCtx.fillStyle = "white";
waterCtx.textAlign = "center";
waterCtx.textBaseline = "middle";
waterCtx.fillText( "~!~ sky ~!~" , 140 , 50 , waterMarkCanvas.width);
},
handleScale : function(){ //用于处理缩放
var isScale = false,
_this = this;
scaleChange.onmousedown = function(){
isScale = true;
}
scaleChange.onmousemove = function(){
if(isScale){ //画图
_this.drawImg();
}
}
scaleChange.onmouseup = function(){
isScale = false;
}
},
handleEffect : function(){ //处理效果变换
var imageData,pixelData;
document.getElementById("greyChange").onclick = function(){ //灰度变换
imageData = ctx.getImageData(0 , 0 , canvasW , canvasH);
pixelData = imageData.data;
for(var i = 0; i < canvasH*canvasW ; i++){
var r = pixelData[4*i + 0],
g = pixelData[4*i + 1],
b = pixelData[4*i + 2],
grey = r*0.3+g*0.59+b*0.11;//此为灰度图像的算法
pixelData[4*i + 0] = grey;
pixelData[4*i + 1] = grey;
pixelData[4*i + 2] = grey;
}
copyCtx.putImageData(imageData,0,0,0,0,canvasW,canvasH);
}
document.getElementById("blackChange").onclick = function(){ //黑度变换
imageData = ctx.getImageData(0 , 0 , canvasW , canvasH);
pixelData = imageData.data;
for(var i = 0; i < canvasH*canvasW ; i++){
var r = pixelData[4*i + 0],
g = pixelData[4*i + 1],
b = pixelData[4*i + 2],
grey = (function(n){ //黑度图像就只有黑白两色
if(n > 127){
return 255;
}else{
return 0;
}
})(r*0.3+g*0.59+b*0.11);
pixelData[4*i + 0] = grey;
pixelData[4*i + 1] = grey;
pixelData[4*i + 2] = grey;
}
copyCtx.putImageData(imageData,0,0,0,0,canvasW,canvasH);
}
document.getElementById("reverChange").onclick = function(){ //反向变换
imageData = ctx.getImageData(0 , 0 , canvasW , canvasH);
pixelData = imageData.data;
for(var i = 0; i < canvasH*canvasW ; i++){
var r = pixelData[4*i + 0],
g = pixelData[4*i + 1],
b = pixelData[4*i + 2];
pixelData[4*i + 0] = 255 - r;
pixelData[4*i + 1] = 255 - g;
pixelData[4*i + 2] = 255 - b;
}
copyCtx.putImageData(imageData,0,0,0,0,canvasW,canvasH);
}
document.getElementById("blurChange").onclick = function(){ //模糊处理
imageData = ctx.getImageData(0 , 0 , canvasW , canvasH);
pixelData = imageData.data;
var pixelTmpData = pixelData; //作为一个备份数据
var r = 3 , totalNum = (2*r + 1)*(2*r + 1); //去上下左右四个方向各3个像素点的平均值
for(var i = r ; i < canvasH - r ; i++){
for(var j = r ; j < canvasW - r; j++){
var totalR,totalG,totalB;
totalR = totalG = totalB = 0;
for(var m = -r ; m <= r ; m++){
for(var n = -r ; n <= r ; n++){
var pixeY = i + m , piexX = j + n,
pixe = canvasW*pixeY + piexX;
totalR += pixelTmpData[4*pixe + 0];
totalG += pixelTmpData[4*pixe + 1];
totalB += pixelTmpData[4*pixe + 2];
}
}
var p = i*canvasW + j;
pixelData[4*p + 0] = totalR/totalNum;
pixelData[4*p + 1] = totalG/totalNum;
pixelData[4*p + 2] = totalB/totalNum;
}
}
copyCtx.putImageData(imageData,0,0,0,0,canvasW,canvasH);
}
document.getElementById("mosaicChange").onclick = function(){ //马赛克处理
imageData = ctx.getImageData(0 , 0 , canvasW , canvasH);
pixelData = imageData.data;
var pixelTmpData = pixelData; //作为一个备份数据
var size = 8,total = size*size;
for(var i = 0 ; i < canvasH ; i += size){
for( var j = 0 ; j < canvasW ; j += size){
var totalR,totalG,totalB;
totalR = totalG = totalB = 0;
for(var y = 0 ; y < size ; y++){
for(var x = 0 ; x < size ; x++){
var py = i + y,
px = j + x,
pixe = px + py*canvasW;
totalR += pixelTmpData[4*pixe + 0];
totalG += pixelTmpData[4*pixe + 1];
totalB += pixelTmpData[4*pixe + 2];
}
}
var newR = totalR/total,
newG = totalG/total,
newB = totalB/total;
for(var dy = 0 ; dy < size ; dy++){
for(var dx = 0 ; dx < size ; dx++ ){
var py = i + dy,
px = j + dx,
pixe = px + py*canvasW;
pixelData[4*pixe + 0] = newR;
pixelData[4*pixe + 1] = newG;
pixelData[4*pixe + 2] = newB;
}
}
}
}
copyCtx.putImageData(imageData,0,0,0,0,canvasW,canvasH);
}
document.getElementById("downLoadImage").onclick = function(){
var loadUrl = copyCanvas.toDataURL("image/png").replace("image/png", "image/octet-stream");
window.location.href = loadUrl;
}
},
handleCanvasMove:function(){ //处理canvans移动
var isCanvasMove = false,
lastX,lastY;
canvas.onmousedown = function(e){
e.preventDefault();
isCanvasMove = true;
lastX = e.clientX - canvas.getBoundingClientRect().left;
lastY = e.clientY - canvas.getBoundingClientRect().top;
}
canvas.onmousemove = function(e){
e.preventDefault();
if(!isCanvasMove || scaleChange.value <= 1) return;
var x = e.clientX - canvas.getBoundingClientRect().left,
y = e.clientY - canvas.getBoundingClientRect().top;
var moveX = (x - lastX),
moveY = (y - lastY);
toolFunc.drawImg(moveX,moveY);
lastX = x;
lastY = y;
}
canvas.onmouseup = function(e){
e.preventDefault();
isCanvasMove = false;
}
canvas.onmouseout = function(e){
e.preventDefault();
isCanvasMove = false;
}
}
};
}
</script>
</html>

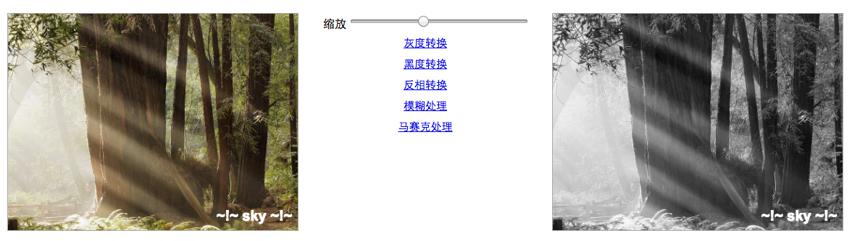

效果图为

用的图片是

2、图片放大镜
