【OpenMesh】Some basic operations: Flipping and collapsing edges

这一节中你将学到一些OpenMesh中早已提供的基础操作。
内容包括三角形网格边的翻转以及通过连接邻接的顶点边缘折叠。

三角形网格的翻转（Flipping edges）

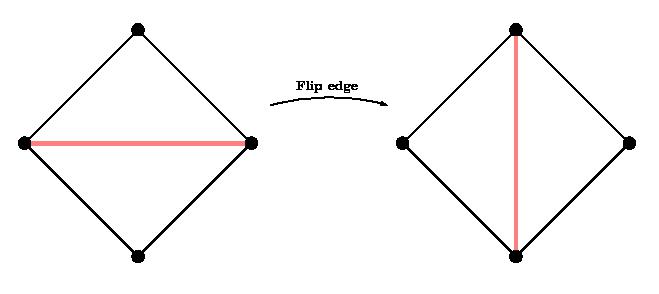

考虑到两个邻接面的三角形网格中存在两种不同内部边缘设置。调用函数OpenMesh::TriConnectivity::flip(EdgeHandle _eh)将翻转特定的边到其相反的方向，如下图所述。

下面的代码段演示了如何在程序中使用这个函数：

TriMesh mesh;

// Add some vertices

TriMesh::VertexHandle vhandle[4];

vhandle[0] = mesh.add_vertex(MyMesh::Point(0, 0, 0));

vhandle[1] = mesh.add_vertex(MyMesh::Point(0, 1, 0));

vhandle[2] = mesh.add_vertex(MyMesh::Point(1, 1, 0));

vhandle[3] = mesh.add_vertex(MyMesh::Point(1, 0, 0));

// Add two faces

std::vector<TriMesh::VertexHandle> face_vhandles;

face_vhandles.push_back(vhandle[2]);

face_vhandles.push_back(vhandle[1]);

face_vhandles.push_back(vhandle[0]);

mesh.add_face(face_vhandles);

face_vhandles.clear();

face_vhandles.push_back(vhandle[2]);

face_vhandles.push_back(vhandle[0]);

face_vhandles.push_back(vhandle[3]);

mesh.add_face(face_vhandles);

// Now the edge adjacent to the two faces connects

// vertex vhandle[0] and vhandle[2].

// Find this edge and then flip it

for(TriMesh::EdgeIter it = mesh.edges_begin(); it != mesh.edges_end(); ++it) {

if(!mesh.is_boundary(it.handle())) {

// Flip edge

mesh.flip(it.handle());

}

}

// The edge now connects vertex vhandle[1] and vhandle[3].

边缘折叠（Collapsing edges）

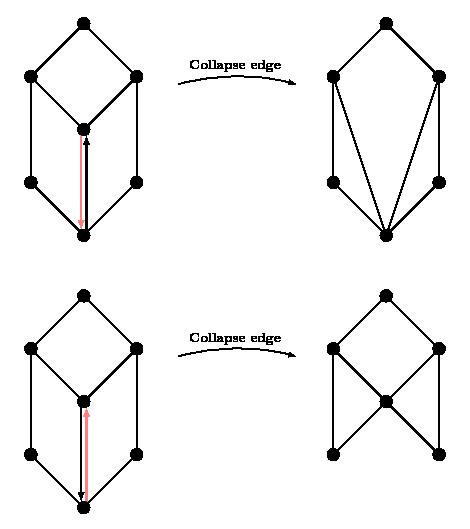

这一节中你将学到如何进行边缘折叠比如连接两个邻接顶点。OpenMesh提供函数OpenMesh::PolyConnectivity::collapse(HalfedgeHandle _heh)实现这一功能。这会折叠halfedge的起始顶点（halfedge直接指向的方向）到结束顶点，如下图所述。注意边缘折叠会导致网格拓扑不一致。你应该在边缘折叠之后验证一致性，通过调用OpenMesh::PolyConnectivity::is_collapse_ok()。

简单的代码例子：

PolyMesh mesh;

// Add some vertices as in the illustration above

PolyMesh::VertexHandle vhandle[7];

vhandle[0] = mesh.add_vertex(MyMesh::Point(-1, 1, 0));

vhandle[1] = mesh.add_vertex(MyMesh::Point(-1, 3, 0));

vhandle[2] = mesh.add_vertex(MyMesh::Point(0, 0, 0));

vhandle[3] = mesh.add_vertex(MyMesh::Point(0, 2, 0));

vhandle[4] = mesh.add_vertex(MyMesh::Point(0, 4, 0));

vhandle[5] = mesh.add_vertex(MyMesh::Point(1, 1, 0));

vhandle[6] = mesh.add_vertex(MyMesh::Point(1, 3, 0));

// Add three quad faces

std::vector<PolyMesh::VertexHandle> face_vhandles;

face_vhandles.push_back(vhandle[1]);

face_vhandles.push_back(vhandle[0]);

face_vhandles.push_back(vhandle[2]);

face_vhandles.push_back(vhandle[3]);

mesh.add_face(face_vhandles);

face_vhandles.clear();

face_vhandles.push_back(vhandle[1]);

face_vhandles.push_back(vhandle[3]);

face_vhandles.push_back(vhandle[5]);

face_vhandles.push_back(vhandle[4]);

mesh.add_face(face_vhandles);

face_vhandles.clear();

face_vhandles.push_back(vhandle[3]);

face_vhandles.push_back(vhandle[2]);

face_vhandles.push_back(vhandle[6]);

face_vhandles.push_back(vhandle[5]);

mesh.add_face(face_vhandles);

// Now find the edge between vertex vhandle[2]

// and vhandle[3]

for(PolyMesh::HalfedgeIter it = mesh.halfedges_begin(); it != mesh.halfedges_end(); ++it) {

if(to_vertex_handle(it.handle()) == vhandle[3] &&

from_vertex_handle(it.handle()) == vhandle[2]) {

// Collapse edge

mesh.collapse(it.handle());

break;

}

}

// Our mesh now looks like in the illustration above after the collapsing.
